Description
Description:

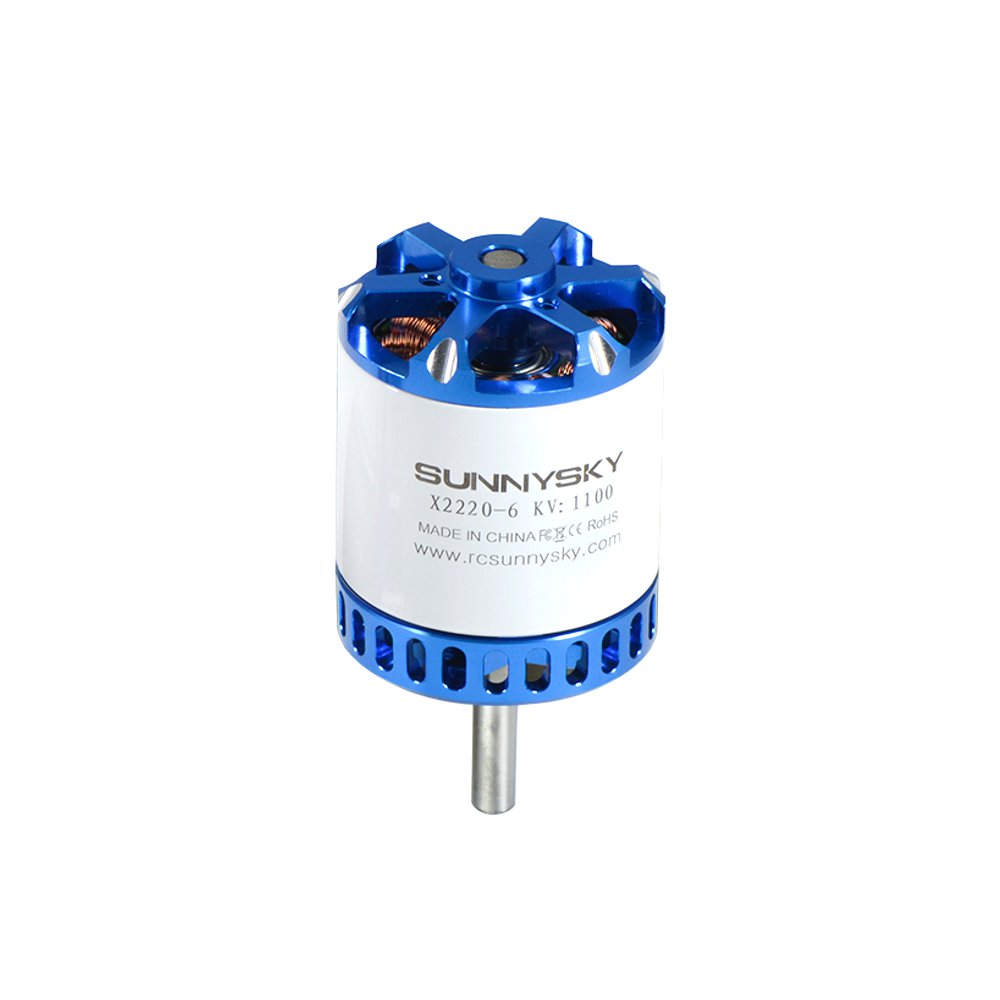

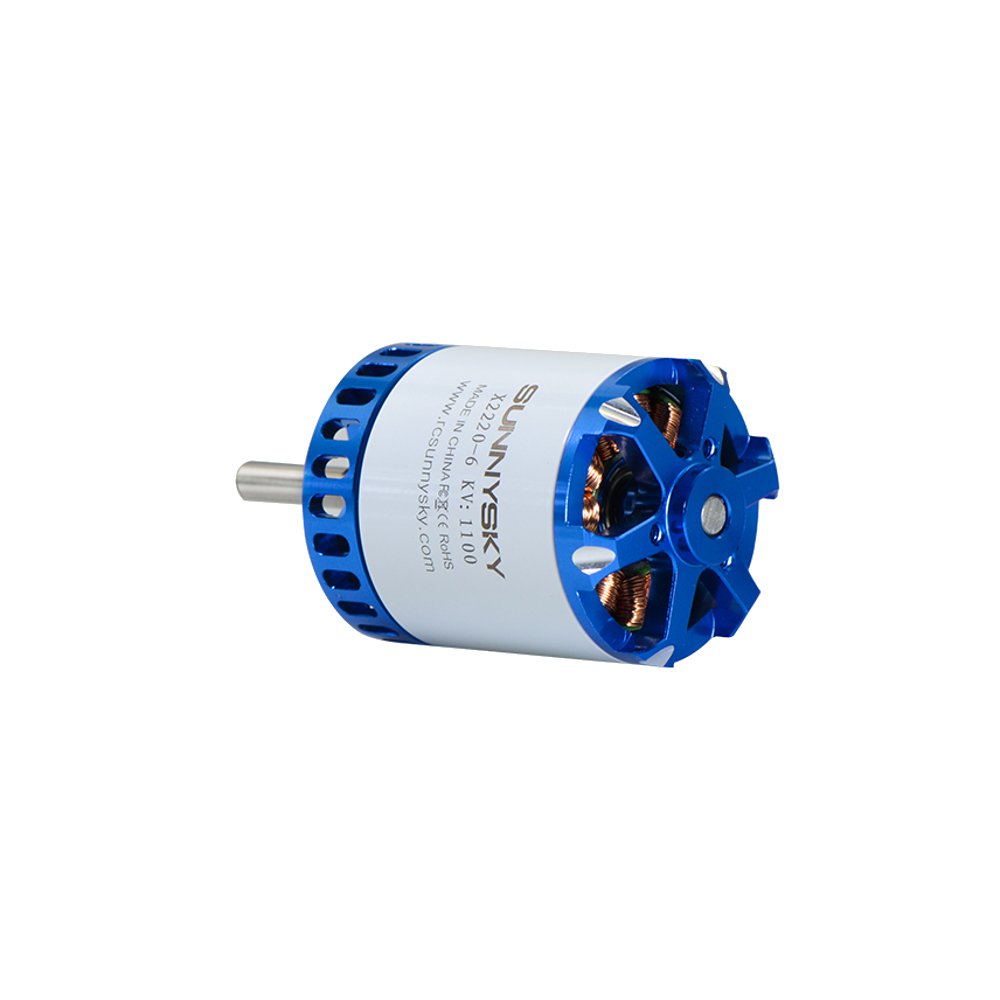

Brand Name: SunnySky
Item Name: Brushless Motor
Series Name: X2220-III
KV: KV980,KV1150,KV1400.KV2200 (optional)
Color: Blue
Specifications:
| KV | 980 | 1400 |
| Stator Diameter | 22mm | |
| Stator Thickness | 20mm | |
| No. of Stator Arms | 12 | |
| No. of Rotor Poles | 14 | |
| No-Load Current (A/10V) | 0.7A | 1.5A |
| Motor Resistance | 51mΩ | 29mΩ |
| Max Continuous Current | 38A/30s | 45A/30s |
| Max Continuous Power | 638W | 745W |
| Weight | 85g | 85g |
| Rotor Diameter | 27.7mm | |
| Body Length | 38mm | |
| Max Lipo Cell | 3-4S | 3S |
| Recommended ESC | 40A | 40-60A |
| Recommended Prop(inch) | APC9047, APC9045 APC9060, APC1047,APC1147 |
APC9045,APC9047 APC9060,APC8060 |
| Applicable Aerobatic Airplane Weight | 1100g (4S 906010471050) | 1000g (3S 906090479045) (4S 8060) |
| Applicable Multi-rotor single axis Weight | 600g |
/ |
| Applicable 3D Airplane Weight |
800-900g (3-4S 10471147)
|
750-850g (3S 90479060) |
Tech Specs:
KV980, Click Here
KV1400, Click Here
KV980, Click Here
KV1400, Click Here
*Specifications for the KV1150 and KV2200 will be added soon.
Package Included:
1x SunnySky X2220-III Brushless Motor
