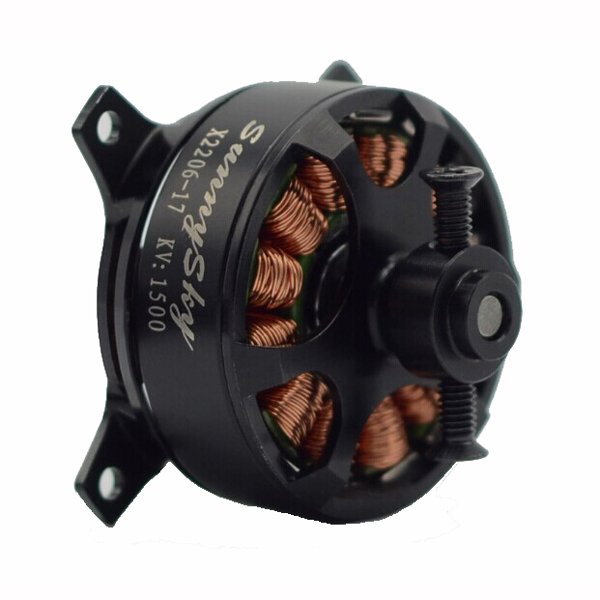

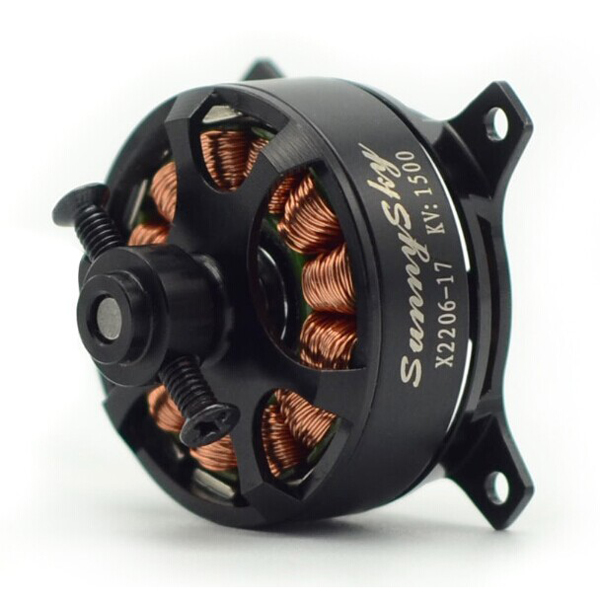

Sunnysky New X2206 KV1500 Brushless Motor For RC Models
Description:
Brand Name: SunnysKy
Item Name: X2206 KV1500 Brushless Motor
Stator Diameter: 22mm
Stator Thickness: 6mm
No. of Stator Arms: 12
No. f Rotor Poles: 14
Motor KV: 1500
No-load Current(A/10V): 0.3A
Motor Resistance: 147mΩ
Max Continuous Current: 13A/30S
Max continuous Power: 150W
Weight: 25.2g
Rotor Diamter: 27mm
Shaft Diameter: 3mm
Body Length: 22.5mm
Overall Shaft Length: 23.3mm
Max Lipo cell: 2-3S
ESC: 12A
Eecommended Prop(inch): GWS8040, GWS8043, GWS9047, GWS9050
AEROBATIC: 300g (3S GWS8040/8043)
180g (2S GWS9047/9050)
240g (3S GWS8040/8043)
| Prop(inch) | Volts(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
| GWS8043 | 7.4 | 1.3 | 100 | 9.62 | 10.3950104 | 61° |
| 2.1 | 150 | 15.54 | 9.652509653 | |||
| 3.2 | 200 | 23.68 | 8.445945946 | |||
| 4.3 | 250 | 31.82 | 7.856693903 | |||
| 5.4 | 300 | 39.96 | 7.507507508 | |||
| 6.8 | 350 | 50.32 | 6.955484897 | |||
| 7.9 | 390 | 58.46 | 6.67122819 | |||
| 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | ||
| 1.6 | 150 | 17.76 | 8.445945946 | |||
| 2.4 | 200 | 26.64 | 7.507507508 | |||
| 3.2 | 250 | 35.52 | 7.038288288 | |||
| 4.2 | 300 | 46.62 | 6.435006435 | |||
| 5 | 350 | 55.5 | 6.306306306 | |||
| 6.2 | 400 | 68.82 | 5.812263877 | |||
| 7.3 | 450 | 81.03 | 5.553498704 | |||
| 8.5 | 500 | 94.35 | 5.299417064 | |||
| 9.9 | 550 | 109.89 | 5.005005005 | |||
| 11.4 | 600 | 126.54 | 4.741583689 | |||
| 12.9 | 655 | 143.19 | 4.574341784 | |||
| GWS9047 | 7.4 | 1.3 | 100 | 9.62 | 10.3950104 | 52° |
| 2.1 | 150 | 15.54 | 9.652509653 | |||
| 3.1 | 200 | 22.94 | 8.718395815 | |||
| 4.3 | 250 | 31.82 | 7.856693903 | |||
| 5.7 | 300 | 42.18 | 7.112375533 | |||
| 6.8 | 350 | 50.32 | 6.955484897 | |||
| 8.2 | 400 | 60.68 | 6.591957811 | |||
| 11 | 490 | 81.4 | 6.01965602 | |||
| GWS1047 | 7.4 | 1.2 | 100 | 8.88 | 11.26126126 | 56° |
| 2 | 150 | 14.8 | 10.13513514 | |||
| 3.1 | 200 | 22.94 | 8.718395815 | |||
| 4.2 | 250 | 31.08 | 8.043758044 | |||
| 5.5 | 300 | 40.7 | 7.371007371 | |||
| 7 | 350 | 51.8 | 6.756756757 | |||
| 8.8 | 400 | 65.12 | 6.142506143 | |||
| 10.7 | 450 | 79.18 | 5.683253347 | |||
| 13.7 | 525 | 101.38 | 5.1785362 | |||
| GWS9050 | 7.4 | 1.2 | 100 | 8.88 | 11.26126126 | 46° |
| 2.1 | 150 | 15.54 | 9.652509653 | |||
| 3.1 | 200 | 22.94 | 8.718395815 | |||
| 4 | 250 | 29.6 | 8.445945946 | |||
| 5.2 | 300 | 38.48 | 7.796257796 | |||
| 6.6 | 350 | 48.84 | 7.166257166 | |||
| 8 | 400 | 59.2 | 6.756756757 | |||
| 10.1 | 470 | 74.74 | 6.288466685 | |||
| GWS8040 | 7.4 | 1.2 | 100 | 8.88 | 11.26126126 | 48° |
| 2.1 | 150 | 15.54 | 9.652509653 | |||
| 3.2 | 200 | 23.68 | 8.445945946 | |||
| 4 | 250 | 29.6 | 8.445945946 | |||
| 5.2 | 300 | 38.48 | 7.796257796 | |||
| 6.6 | 350 | 48.84 | 7.166257166 | |||
| 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | ||
| 1.5 | 150 | 16.65 | 9.009009009 | |||
| 2.3 | 200 | 25.53 | 7.833920877 | |||
| 3.1 | 250 | 34.41 | 7.265329846 | |||
| 3.9 | 300 | 43.29 | 6.93000693 | |||
| 4.9 | 350 | 54.39 | 6.435006435 | |||
| 5.8 | 400 | 64.38 | 6.213109661 | |||
| 6.9 | 450 | 76.59 | 5.875440658 | |||
| 8.1 | 500 | 89.91 | 5.561116672 | |||
| 9.2 | 550 | 102.12 | 5.385820603 | |||
| 11.7 | 640 | 129.87 | 4.928004928 | |||
| GWS8060 | 7.4 | 1.4 | 100 | 10.36 | 9.652509653 | 52° |
| 2.4 | 150 | 17.76 | 8.445945946 | |||
| 3.6 | 200 | 26.64 | 7.507507508 | |||
| 5 | 250 | 37 | 6.756756757 | |||
| 6.5 | 300 | 48.1 | 6.237006237 | |||
| 8.4 | 350 | 62.16 | 5.630630631 | |||
| 10.3 | 410 | 76.22 | 5.379165573 | |||
| Note: The test condition of temperature is motor surface temperature in 100% throttle while the motor run 10 min. | ||||||
Package Included:
1X Sunnysky New X2206 KV1500 Brushless Motor
