PRODUCT DESCRIPTION
SucceX F4 TwinG Flight Controller(Dual ICM20689)
FC Specifications
-MCU: STM32F405R6T6
I-MU: Twins IC2689, Twins Gyros built-in(SPI)
-Baro: NO
-OSD: AT7456E
-Blackbox: Blackbox logging device
-5X Uarts(1 2 3 4 5)with build-in inversion
-8X Dshot/Proshot/Oneshot output
-8X individual ESC power/ signal pads
-1X Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
-Smart audio & Tramp VTX protocol: YES(IRC Tramp)
-WS2812 led Strip: YES
-Beeper: YES
-PDB Specifications
-Input: 2-6S(5-36V)
-BEC: 5V/3A cont
FC Firmware
-Betaflight/INAV
-Target: STM32F405-
-FC: IFRC/IFF4_TWIN_G(STM32F405)
Physical
-Mounting: 30.5*30.5mm,φ4mm with Grommets φ3mm
-Dimensions: 36*36mm
-Weight: 6.3g
SucceX 50A 2-6S BLHeli_32 Dshot1200 4-in-1 ESC
Features:
– 8 layers double-sided PCB board;
– 4oz 1.6mm thick power board(0.9mm copper ratio),better operating load capacity;
– 32bit FO51K86 MCU, 48mHz maximum clock speed;
– T.DK MLCC Low ESR ceramic capacitors;
– Top grade NTMFS5C430NL MOSFET;
– Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
Specification:
– Dimension: 43*39mm
– Mounting Holes: 30.5*30.5mm/Φ3mm
– Weight:14.4g
– Supports 2-6S lipo input
– STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
– Current sensor: Yes
– BEC: No
– Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.
– Target: iFlight-BL32-4IN1
RECOMMENDATION:
– No additional capacitor needed up to 5S!
– To en.counter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!
Package included:

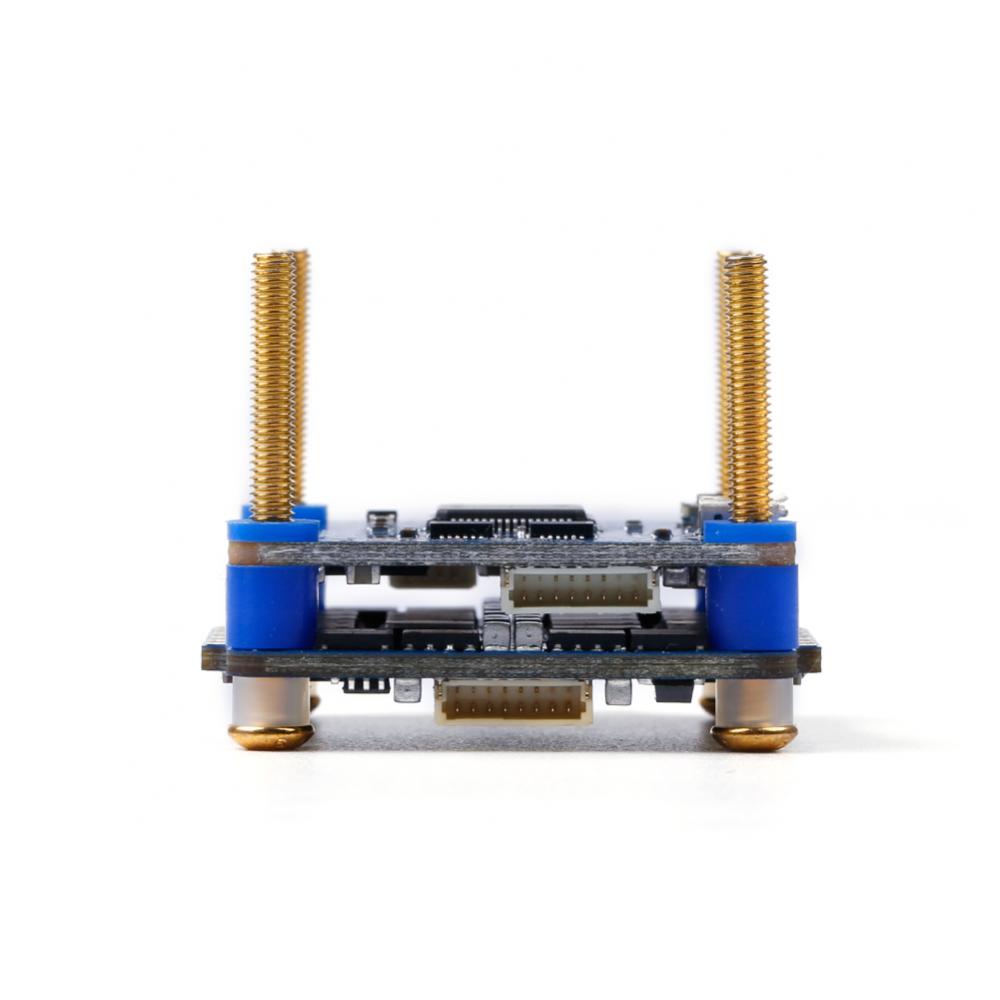

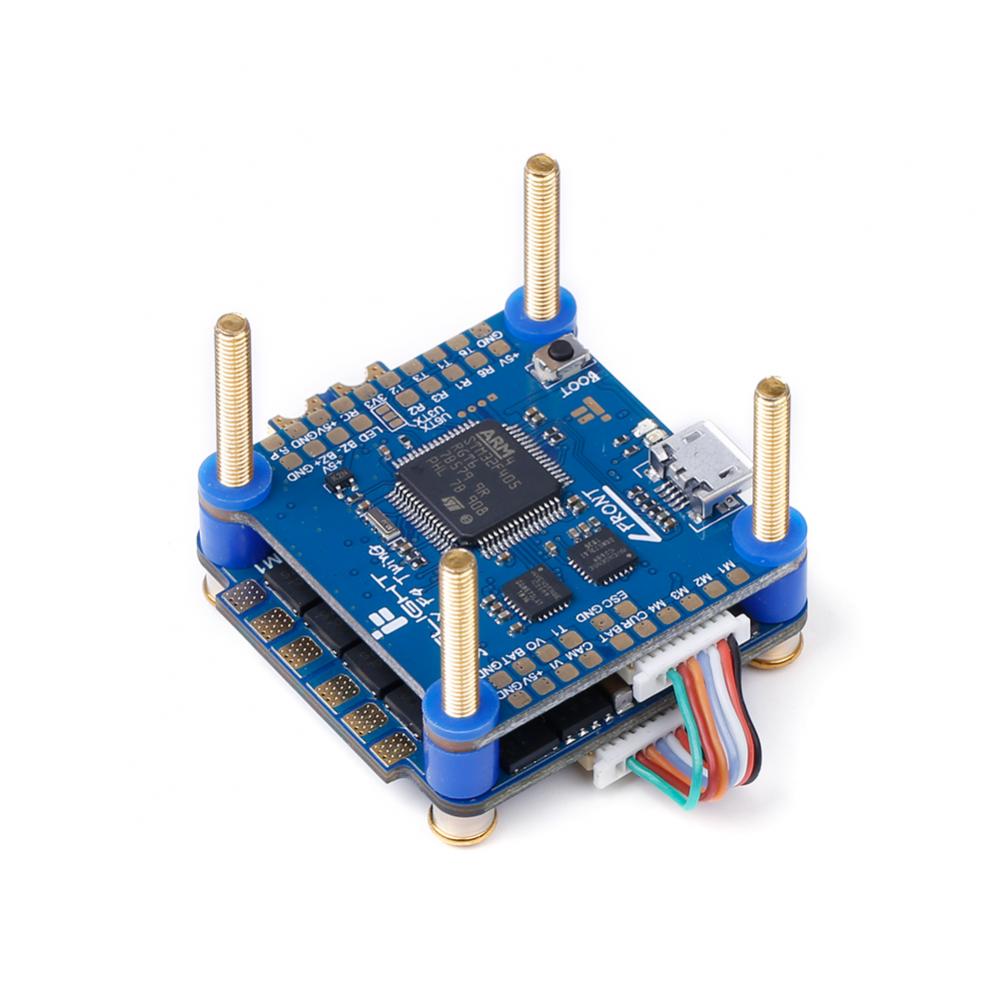

SucceX F4 V2.1 TwinG FC+ SucceX 50A 2-6s BLHeli_32 Flytower (pre-assembled)
