Description
Note: 1. The drone default to the angle mode. You can connect betaflight configurator and install more mode！
2. Update: The drone has been bound to the radio’s default factory settings！
3. You can connect to the simulator only via Bluetooth.

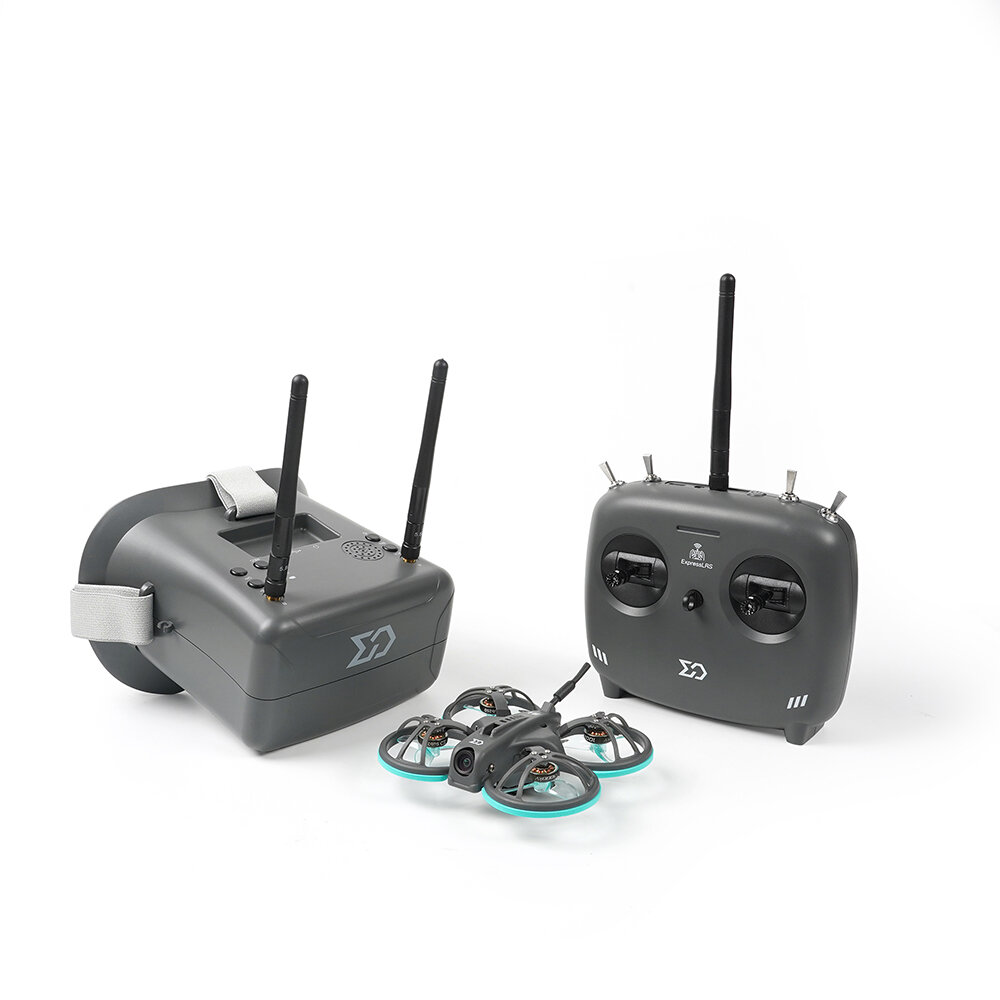

Sub250 highly recommends the new Whoopfly16 RTF Kit in 2023! It will be a brilliant choice for new FPV beginners to start flying. Comes with a Whoopfly16 Analog Elrs 2.4gHz FPV drone, MicroRadio Elrs 2.4gHz transmitter, and Goggles 01.
Whoopfly16 is an inverted pusher with a protective frame FPV drone. It combines the characteristics of a short wheelbase for smooth indoor flight and the protection ring has strong protection characteristics.
Sub250 MicroRadio Elrs 2.4gHz remote control with a maximum transmission power of 500mW, 8 channels of ultra-low latency, replaceable 18650 batteries, and support type-c charging.
The FPV Goggles 01 use dual antennas to receive picture signals at the same time, support card recording DVR, built-in 3.7V 2000mAh battery that can be used for up to 2.5 hours, support USB fast charging, and one-key search frequency point. The multi-function menu design makes the operation more convenient.
Specification:
Brand: Sub250
Model: Whoopfly16
Item Name: 1.6 Inch 1S Whoop FPV Racing Drone RTF
| Whoopfly16 Analog Drone | Product name: Whoopfly16 Analog Elrs 2.4 Frame: WF16 Wheelbase size: 75mm Flight control system: Redfox A1 F4 5A 4in1 1S AIO FC MCU: STMF411 IMU: ICM42688-P OSD: BetaFlight OSD w/AT7456E chip ESC: Redfox A1 4IN1 5A ESC VTX: VTX 5.8G 200mW Lens: Caddx Ant eco Propeller: Gemfan 1608-3 Antenna: 5.8g copper tube antenna 70mm ELRS Version weight: 35.2g Receiver: ELRS 2.4G (SPI) |
|
SUB250 MICRORADIO ELRS 2.4G Radio Transmitter |
Product name: MicroRadio Size：147*135*71mm (Not including antenna) Weight：223g Adapted Drone Type: Multirotor, Airplane Frequency band：2.4GHz ISM Input voltage：6.6-8.4V Antenna interface： SMA Power：100/250/500mW Channel：8 channel Charging interface： USB-C Firmware upgrade： Support Bluetooth joystick： Support Note: Not including Remote Controller’s Batteries (2X 18650 Batteries) |
| Sub250 Goggles 01 | Product name: Goggles 01 Resolution：800*480px Size of screen: 4.3 inch Size: 155mm*144mm*113mm Built-in Batteries: 3.7v / 2000 mAh Working Time: 2.5 hours Weight: 314.6g |
Whoopfly16 RTF Basic Teaching
-Open the bag
-Take out the radio/ goggles /drone/ and batteries
-Take out two 5.8g antennas and install them on the goggles
-Mounting the single antenna on the radio
-Long press the radio power button to power the radio first
-Long press the goggles power button to power
-Plug in the battery to power the drone
-The batteries can be recharged via Sub250-CW1 charger
-The drone has been bound to the radio’s default factory settings
-Just place all the levers at the top and the throttle at the bottom
-Pull the leftmost lever down, and the drone is unlocked
-The drone default to the angle mode. You can connect betaflight configurator install more mode
-Short press the menu button of goggles to enter the one-click search mode
-The goggles will automatically select best signal channel according to the signal strength
-Wearing your goggles to start flying now!
Package Included:
1 x Whoopfly16 Analog Elrs 2.4g FPV Drone
1 x MicroRadio Remote Controller
1 x Sub250 Goggles 01
1 x Sub-CW1 charger
2 x Sub250 530mAh 90C 1S batteries
4 x 1608-3 Propellers
1 x Phillips screwdriver
1 x L-type Allen screwdriver (1.5mm)
1 x Portable Storage Bag
