Stingy V2 235mm Wheelbase 4mm Arm Carbon Fiber 5 Inch Frame Kit for RC Drone FPV Racing

$28.50

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

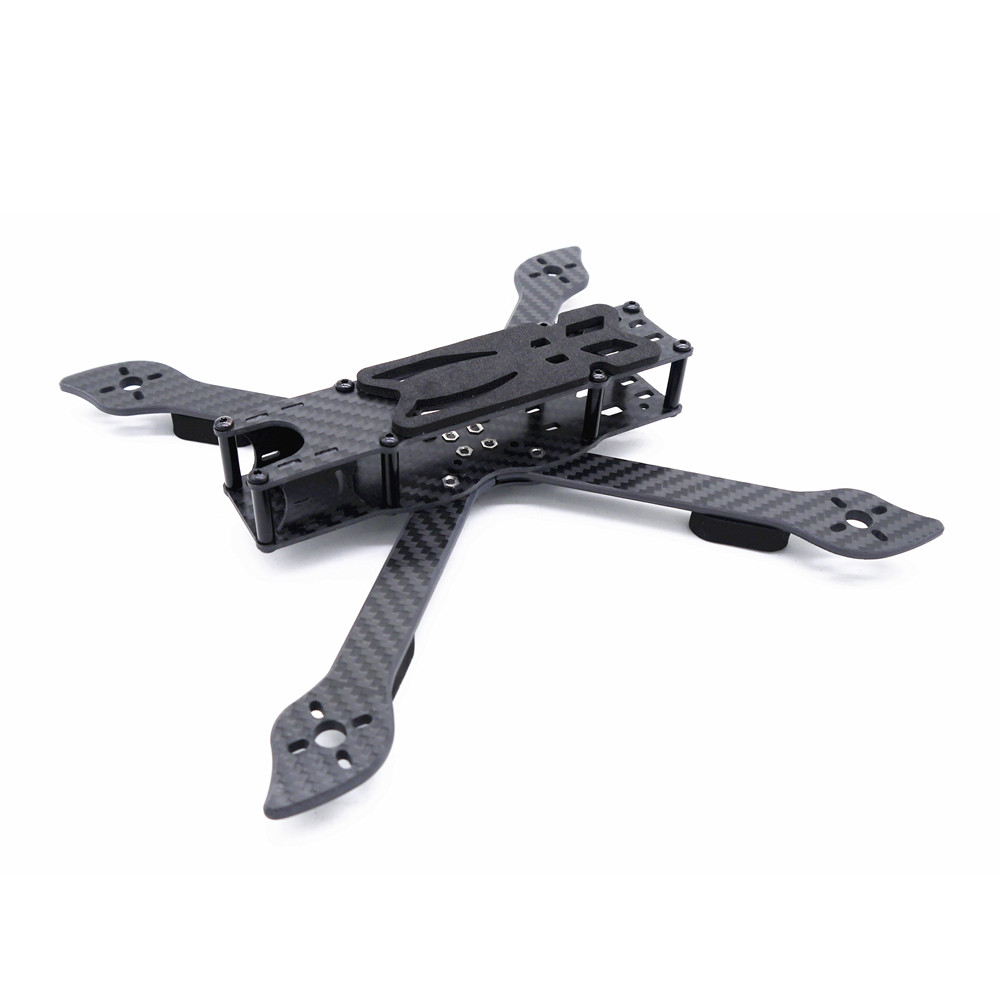

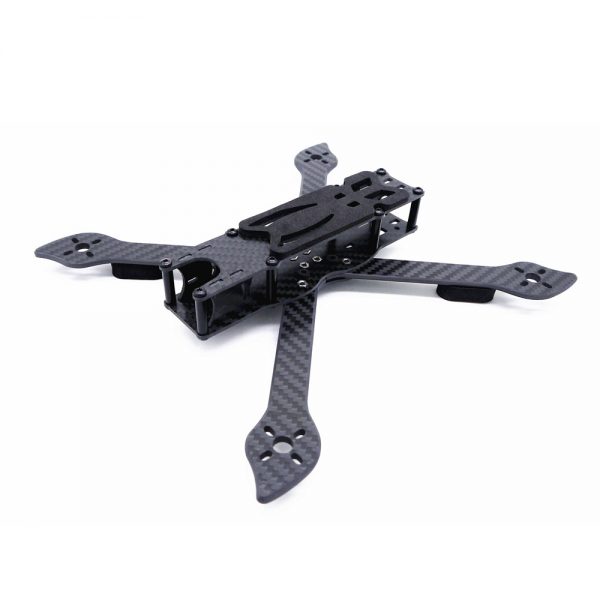

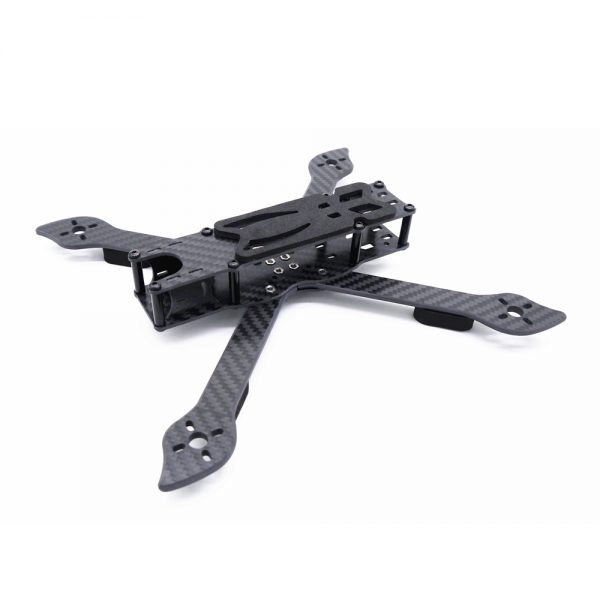

Stingy V2 235mm Wheelbase 4mm Arm Carbon Fiber 5 Inch Frame Kit for RC Drone FPV Racing

Specification:
Model: Stingy V2
Item Name: 235mm 5 Inch Racing Frame Kit
Material: Carbon Fiber
Wheelbase: 235mm
Arm Plate Thickess: 4mm
Other Plate Thickness: 2mm
Inner Standoff Height: 20mm
Weight: 107g

Recommend Part:
Flight Controller: 20x20mm / 30.5×30.5mm Flight Controller
Brushless ESC: 20-40A ESC
Brushless Motor: 2204/2205 2207/2306/2405/2307/2308/2506 Motor
Propeller: 5 Inch Propeller
FPV Camera: 22mm Mounting Width Camera

The Following Parts are compatible: ( Not Included)
FC & ESC Stack: 20x20mm HGLRC XJB F438 F4 FC  & 33A BL_S ESC
                             DYS 30.5×30.5mm F4 Pro FC & F30A BLheli_S ESC

Brushless Motor: DYS Samguk Wu 2206 2400KV 2700KV 3-4S Motor
                            DYS Samguk Shu 2306 225/2500/2800KV 3-4S Motor

Propeller: 10 Pairs LDARC 5045 5 Inch 3-Blade Propeller CW & CCW

Lipo Battery:  AHTECH Infinity 4S 14.8V 1300mAh 85C LiPo Battery

Package Included:
1x Stingy V2 235mm Frame Kit
