Description
Description:
Brand: SPT

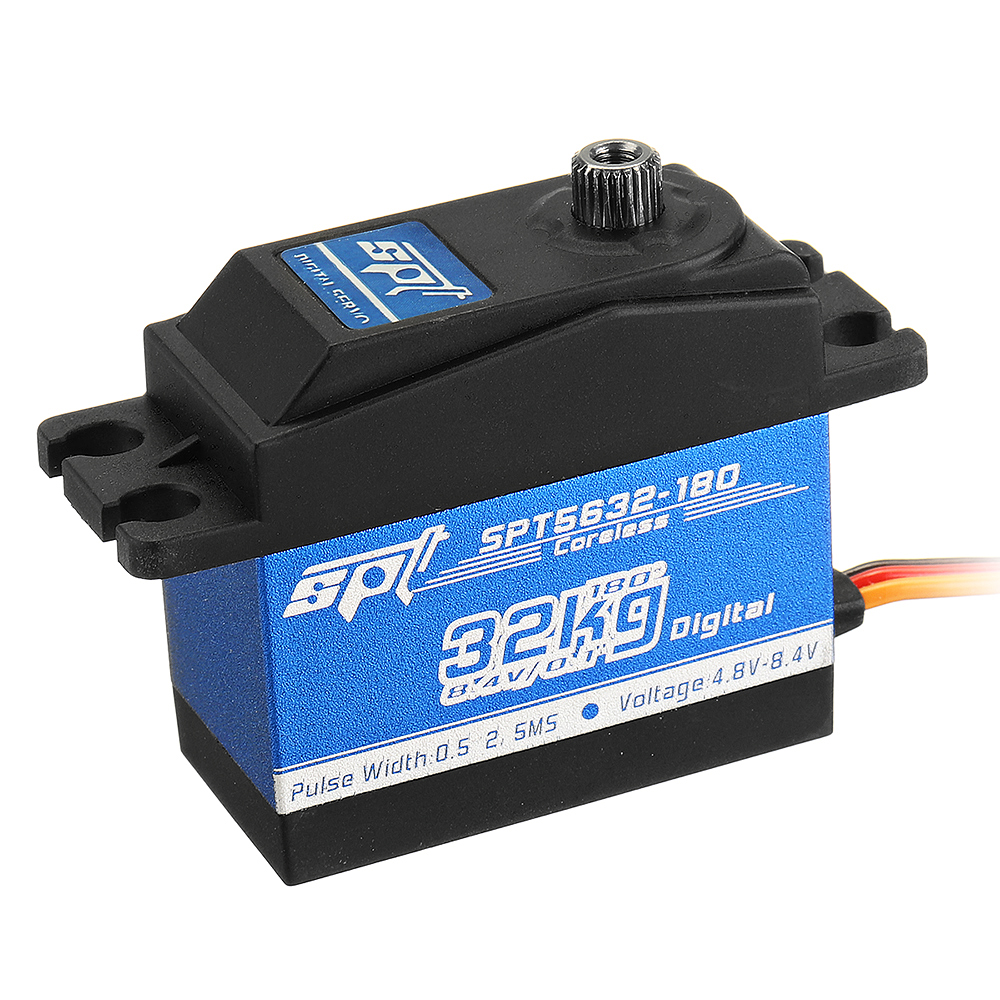

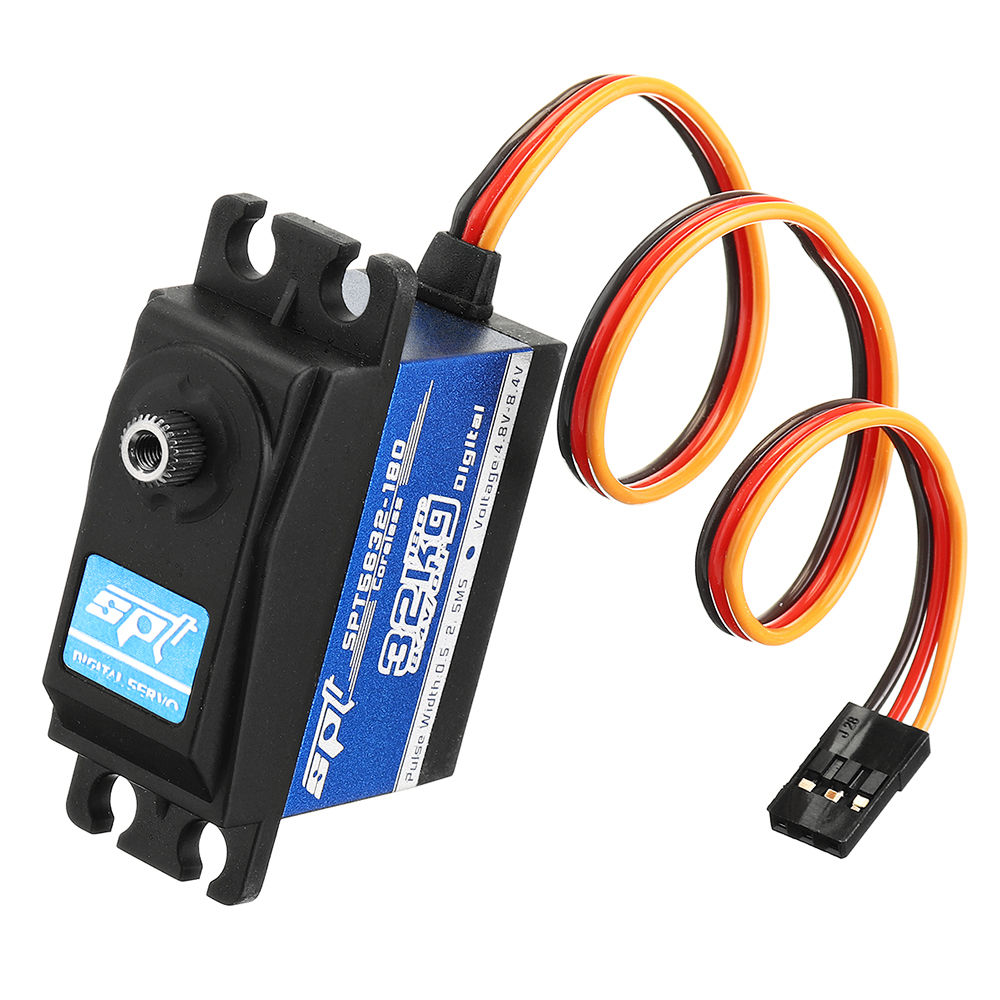

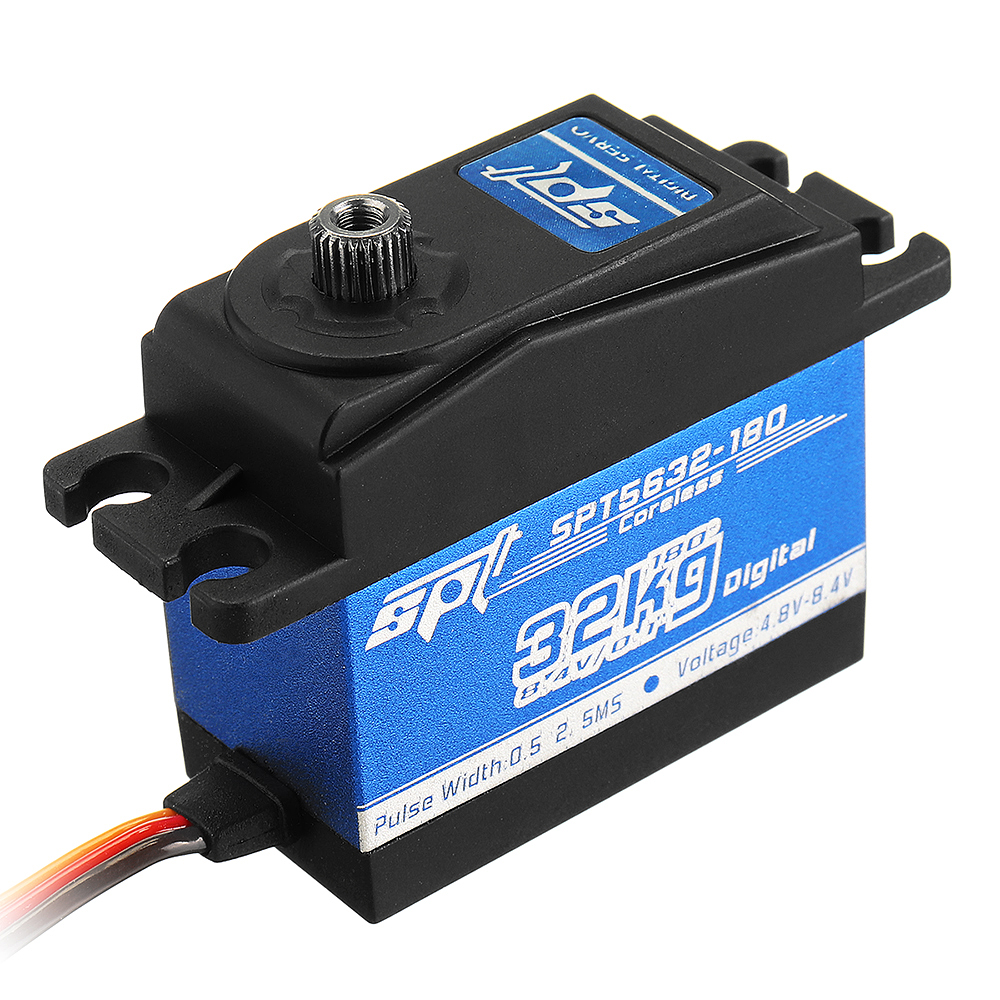

Product: SPT5632-180 Digital Servo
Dead Band:2μs
Neutral Position:1500μs/330hz
Motor: Coreless Motor
Pulse Width: 500μs-2500μs
Angle: 180°±2°
Voltage Range: 4.8V-8.4V
Operating Speed(6.0V): 0.14''/60°
Operating Speed(7.4V): 0.11''/60°
Stall Torque(6.0V): 27 kg.cm
Stall Torque(7.4V): 33 kg.cm
Dimensions: 40.5X20X37.5mm
Weight: About 58g

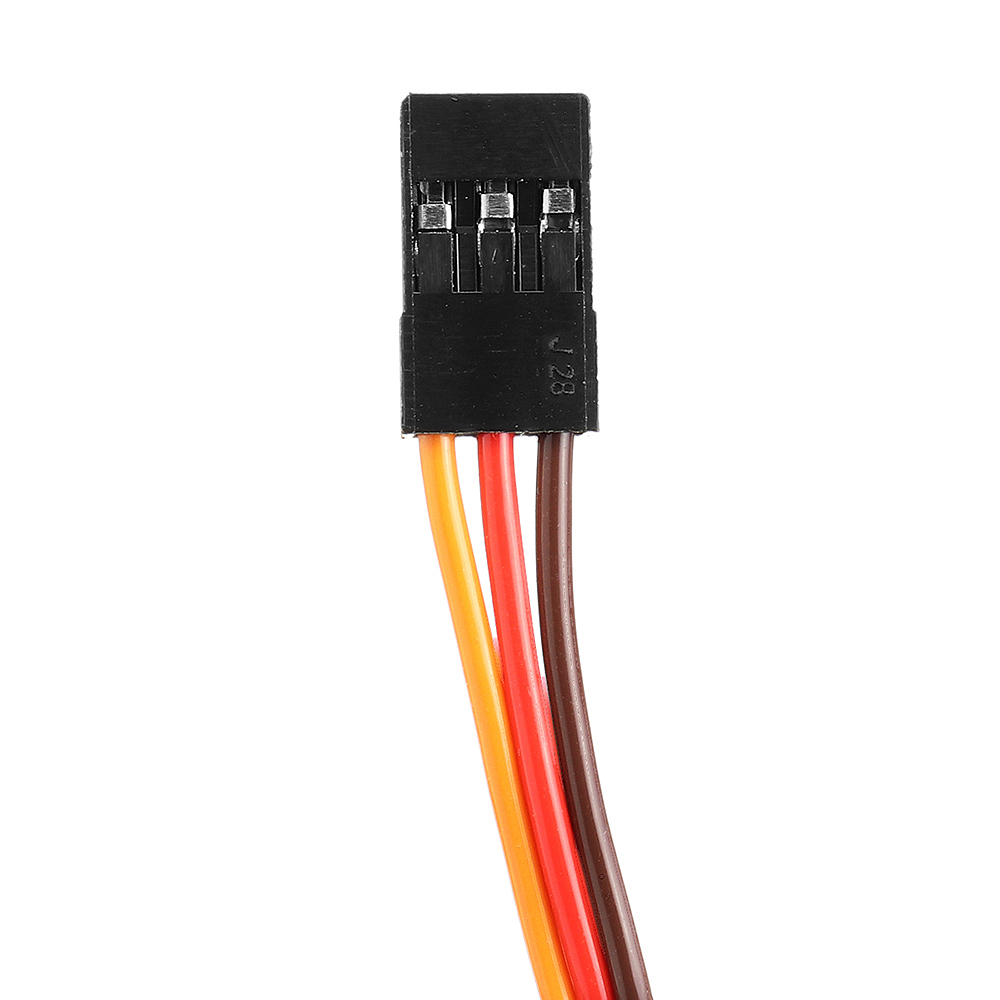

Connector Wire Length: JR 260 mm
Bearing: 2BB
Package:
1* Servo
