Description
Description:
Brand: SPT

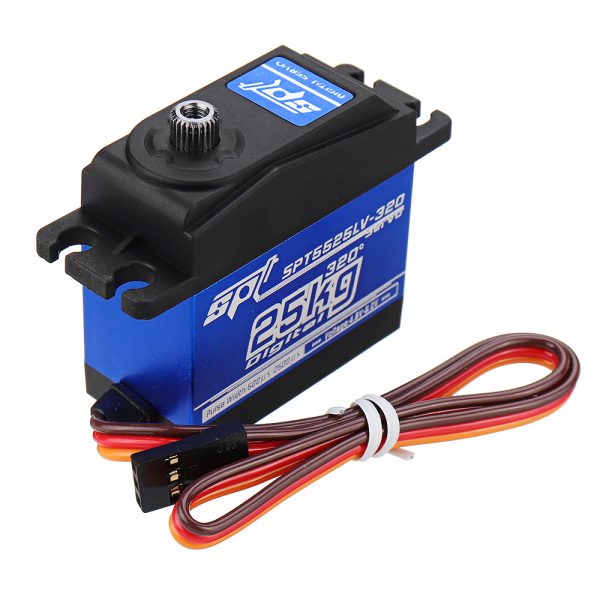

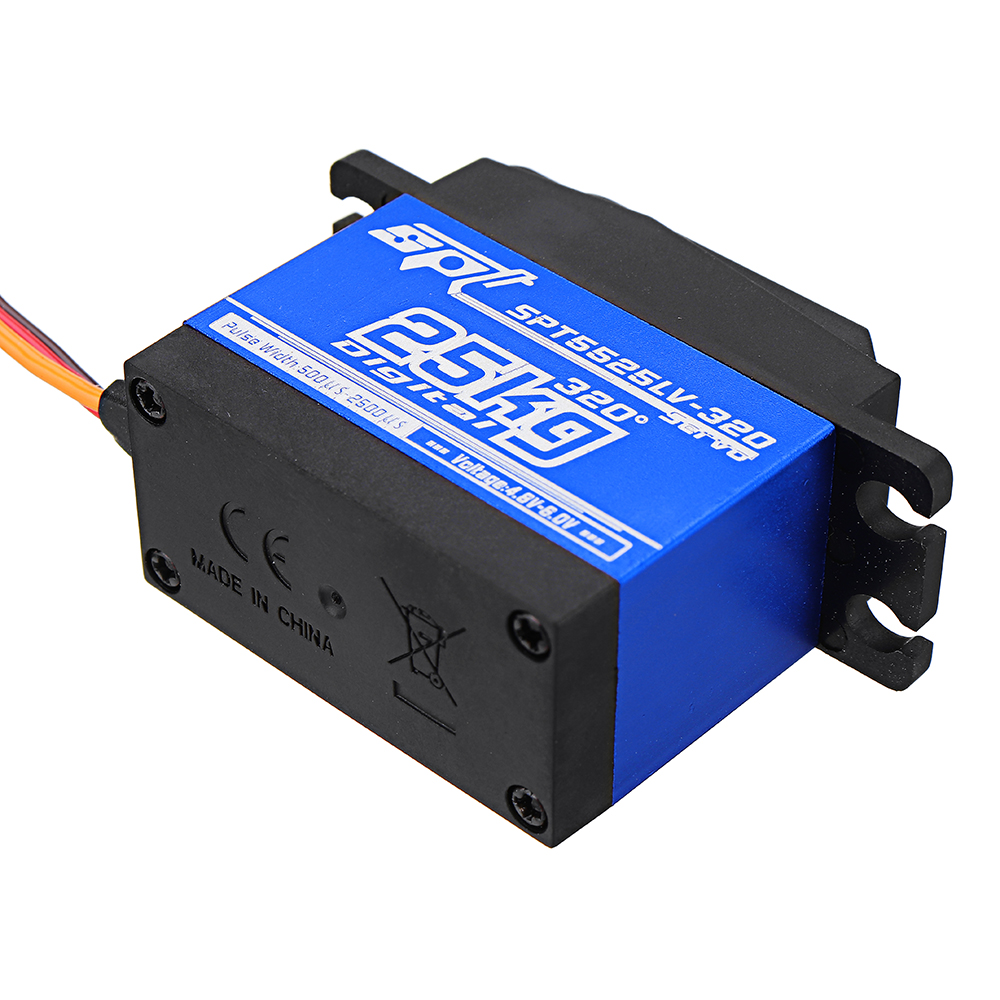

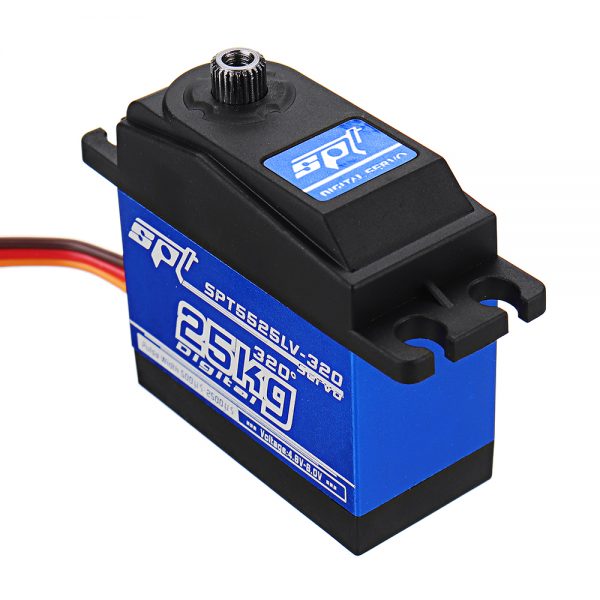

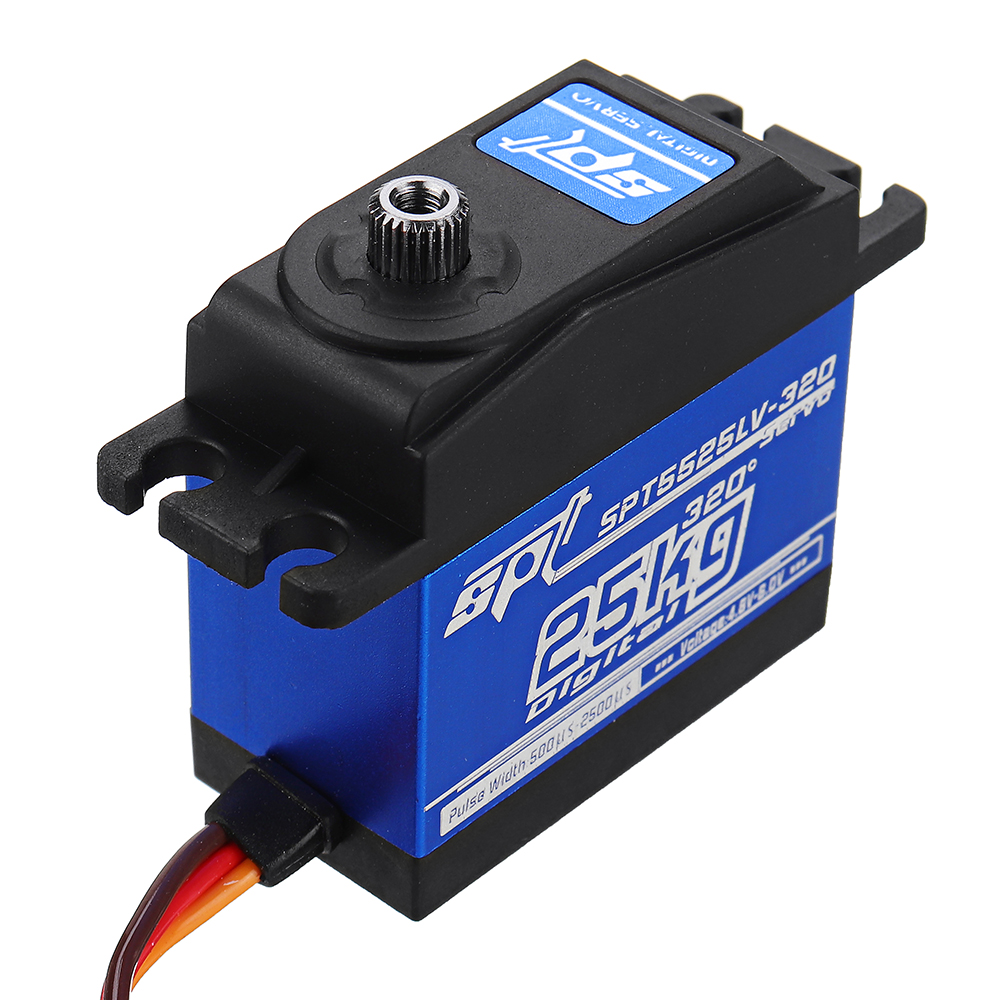

Product: SPT5525LV-320 25KG Digital Servo
Dead Band: 4μs
Neutral Position: 1500μs/50hz
Motor: Core motor
500-2500μs Angle: 320°±2°
Voltage Range: 4.8V-6.0V
Operating Speed(4.8V): 0.22''/60°
Operating Speed(6.0V): 0.18''/60°
Stall Torque(4.8V): 24 kg.cm
Stall Torque(6.0V): 26 kg.cm
Dimensions: 40.5X20X40.5mm
Weight: 57g

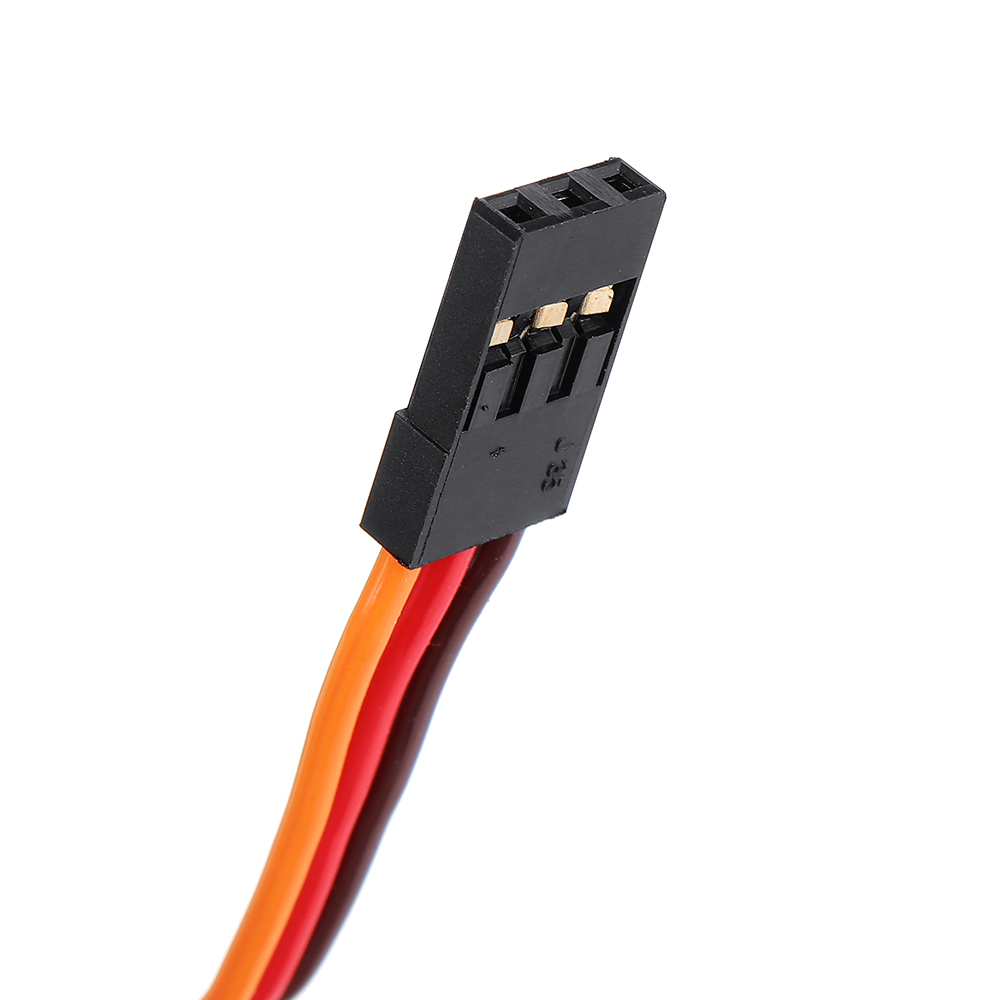

Connector Wire Length: JR 260 mm
Bearing: 2BB
Application: RC Robot
Application: RC Robot

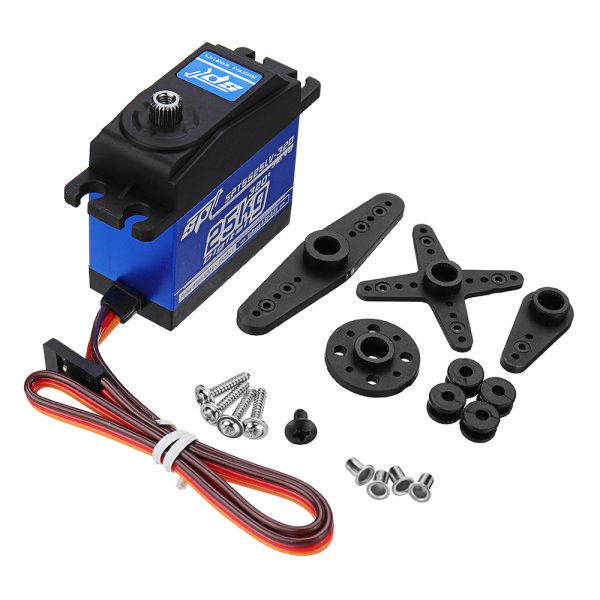

Package:
1* SPT5525LV-320 25KG Digital Servo
