SpeedyBee bluetooth-USB Adapter 2-6S Support STM32 Cp210x USB Connector For RC Flight Controller
Description:
Brand Name: SpeedyBee
Item Name: bluetooth-USB Adapter
Output Power: 0 dBm
Receiver Sensitivity: -94 dBm
Transmission Rate: Bidirectional 2K/S
bluetooth Protocol: 2bluetooth Specification V4.0 BLE
Transmission Distance: 10m
Frequency Range: 2400 MHZ – 2483.5MHZ (2.4G ISM Band)
Baud Rate: 19200
USB to Serial Port Baud Rate: 115200
Operating Voltage: 2-6S LiPo (6 – 30V)
Minimum Operating Current: 20mA
The Operating Current When Connecting The FC: 80mA

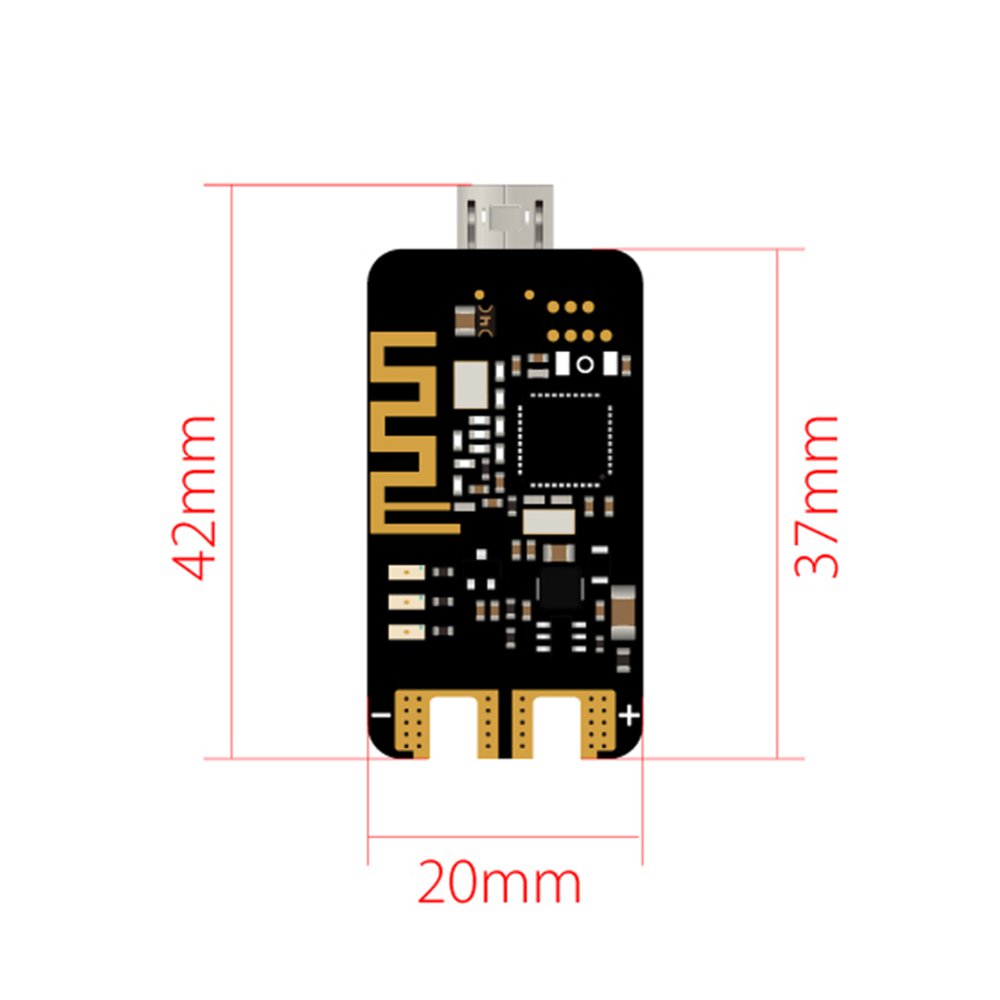

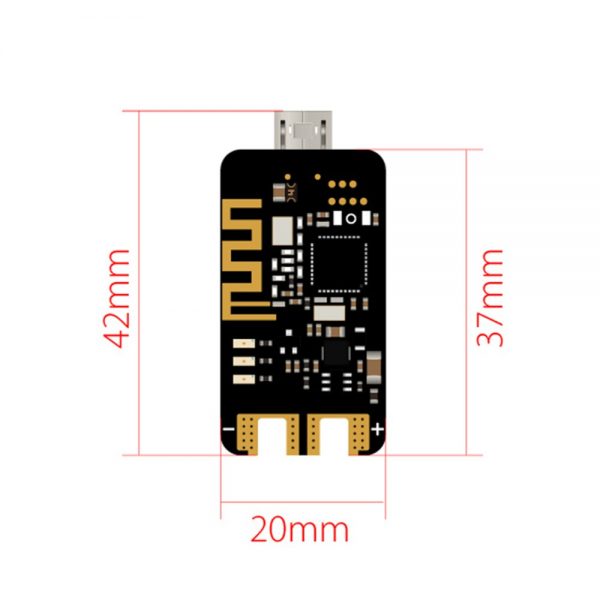

Dimension: 42*20*5.6mm
Net Weight: 3.5g
Features:
– 2S – 6S Power Input

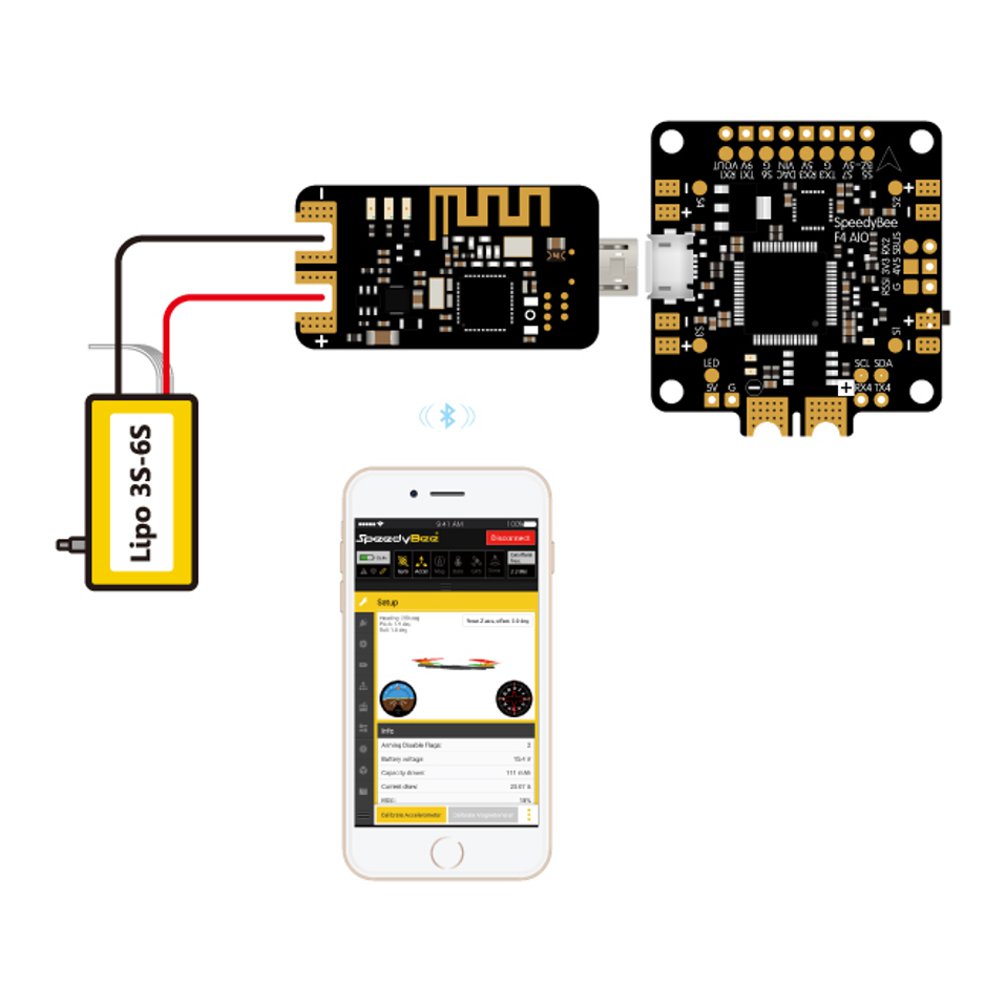

2s-6s power input, at the same time, the Micro USB interface supplies power to the flight controller
(*A battery can simultaneously power the bluetooth module and the flight controller)
(*A battery can simultaneously power the bluetooth module and the flight controller)
– Support USB Connector
Support STM32/Cp210x USB Connector, compatible with most flight controllers
– Speedybee App
Using with SpeedyBee APP, the most convenient Mobile Ground Station!
iOS Device: iPhone 4S, iPad 3rd Gen and later
iOS 10.0+ : APP Store
Android 4.3+: Google Play, Download
– More Stable and Faster Transmission Performance
Low-Power bluetooth Solution
Standalone Transmission Control Chip
1KB Data Cache Expansion
Low-Power bluetooth Solution
Standalone Transmission Control Chip
1KB Data Cache Expansion
– No Configuration Required, plug and play
English Manual, Click Here
Package Included:
1x SpeedyBee bluetooth-USB Adapter
1x XT60 Male Plug Cable
1x Heat Shrink Tubing
1x Manual
