Specification:
Brand name: Spedix
Item name: IS35 35A ESC
Input Voltage: 2-5S
Max. Continuous Current: 35A
Max Burst Current: 45A (10 sec.)
Firmware: Blheli_S
BEC: No
Current Detection: Yes
Dimensions:29x32x6.5mm
Stack Size: 20x20mm, M3
Weight: 7G
Brand name: Spedix
Item name: IS35 35A ESC
Input Voltage: 2-5S
Max. Continuous Current: 35A
Max Burst Current: 45A (10 sec.)
Firmware: Blheli_S
BEC: No
Current Detection: Yes
Dimensions:29x32x6.5mm
Stack Size: 20x20mm, M3
Weight: 7G
Features
High reliability.
This design allows low pro file stack and prevent interferences between wires, ESC, and flight controller.
The potential interference between standoffs and electronic parts were also taken into consideration in the design. Fragile parts are now away from the mounting holes.
The silicone rings provided will prevent the standoffs to short the PCB and electronics parts during a crash.
The small size and square shape of the ESC board is compatible with most frames available in the market.
The product comes with 2 different cables and spare connector housings to accomodate the multipin connectors used on different flight controllers.
Package Included:

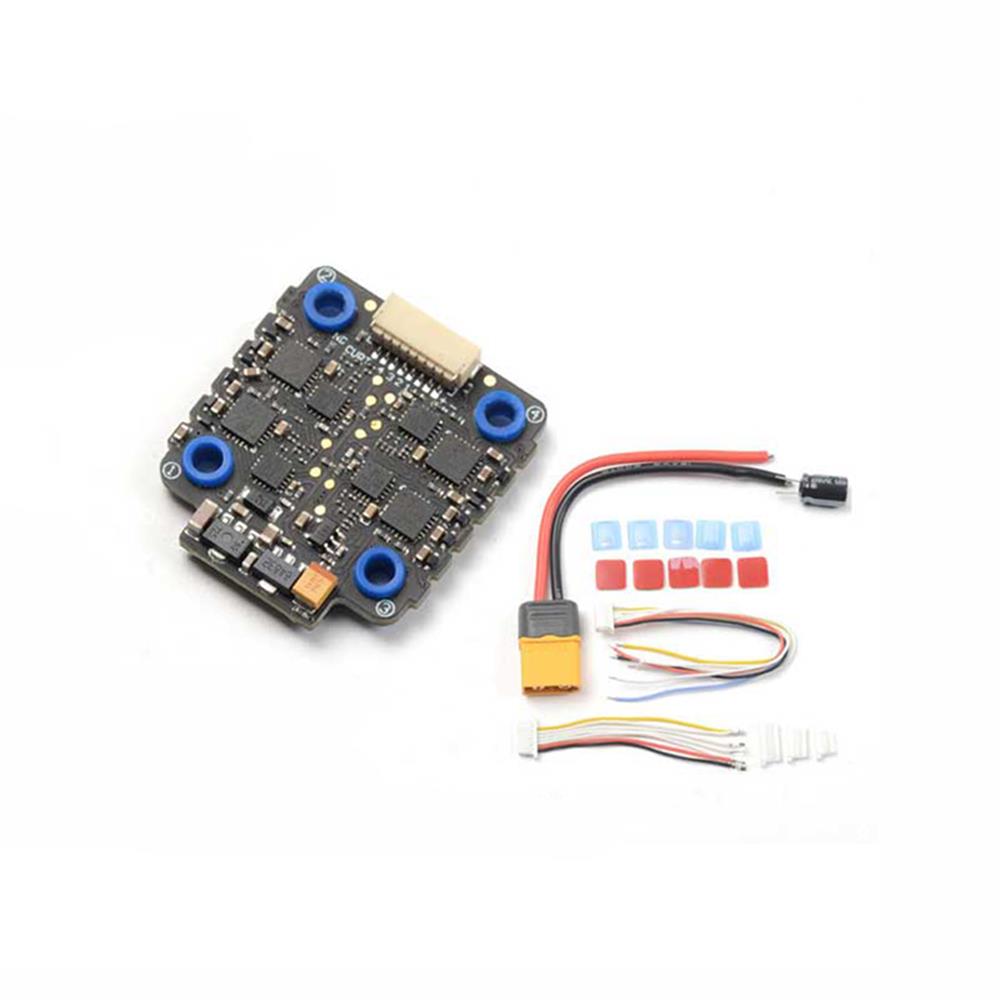

1 x IS35 35A Blheli_S 2-5S 4 IN 1 Brushless ESC
