Description

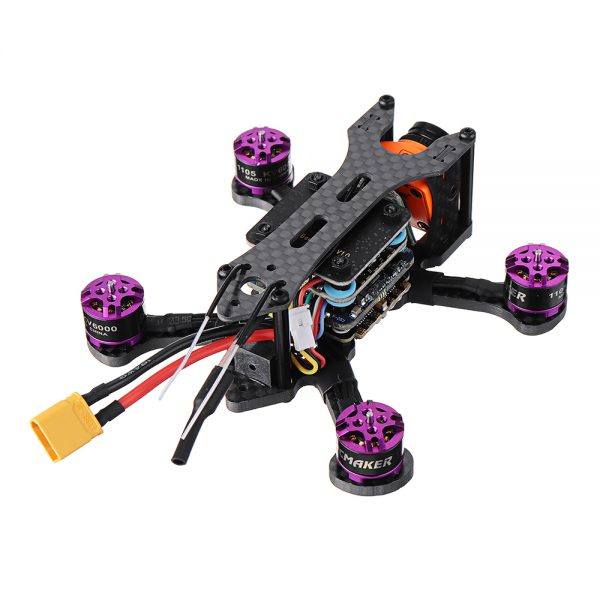

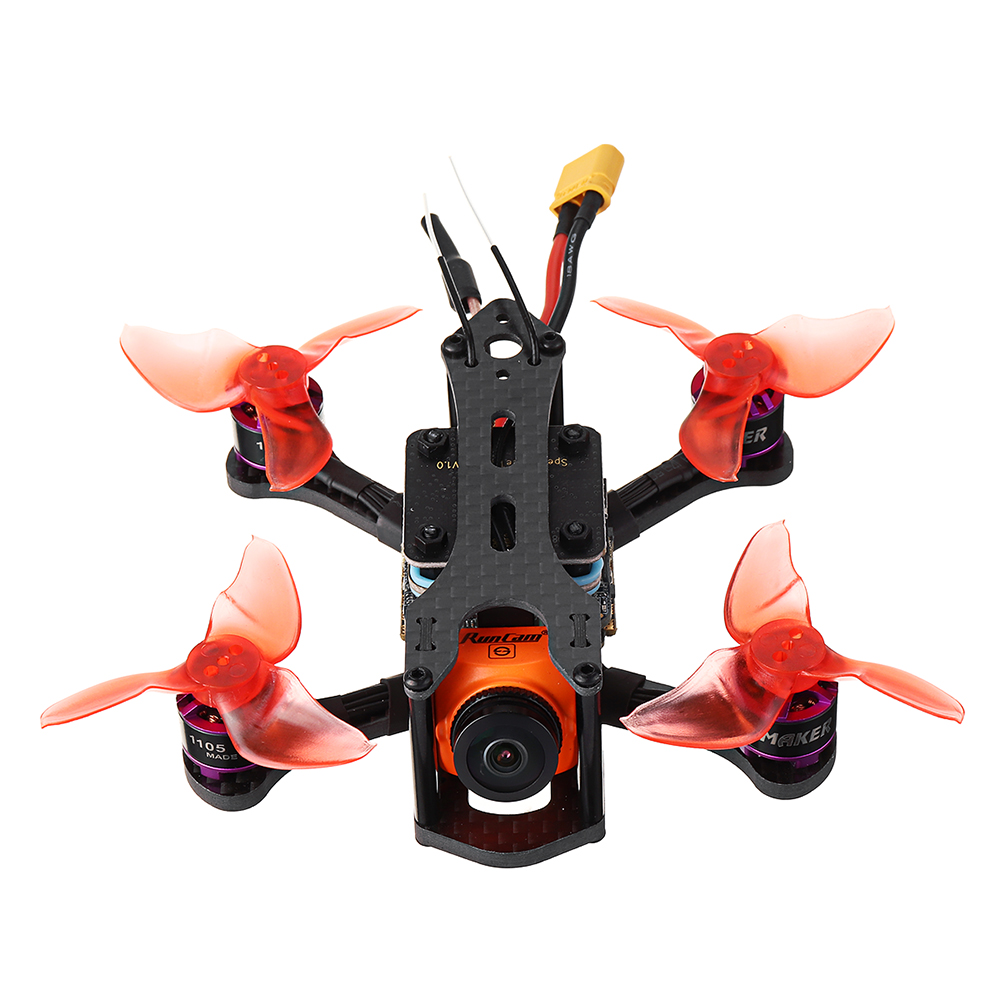

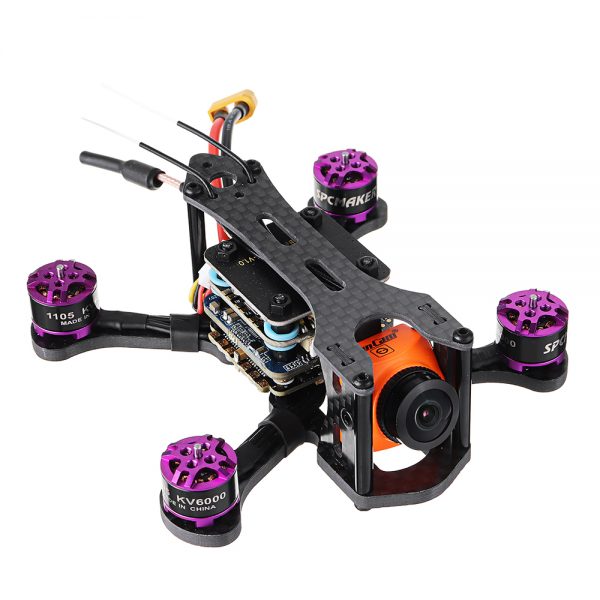

SPCMaker SPC K1 95mm Omnibus F4 20A BL_S FPV Racing Drone PNP BNF w/ RunCam Split Mini 2 Camera
Specification:
Brand Name: SPC Maker
Model: K1
Item Name: 95mm Omnibus F4 FPV Racing Drone
Wheelbase: 95mm
Materail: 3K Carbon Fiber
Version: PNP ( Without Receiver )
Compatible DSM2/X Receiver
Compatible Frsky Receiver
Compatible Flysky Receiver
Compatible Futaba Receiver ( Optional)
Size:87x91x30mm
Weight: 91g ( battery not include)
| Omnibus F4 Flight Controller | Item Name: Omnibus F4 Flight Controller Integrated with OSD PDB BEC Firmware: OmnibusF4SD Main Chip: STM32F405 MPU6000 6 aixs SPI Gyro & Acc BEC: 5.1V@1.2A Size: 27x27mm Mounting Hole: 20x20mm Weight: 3.5g – DShot1200 Support – SBUS/PPM and Speketrum DSM Ports 5.5V BEC Support |
| Brushless Motor | 1105 6000KV Brushless Motor |
| 20A BL_S 4in1 ESC | Item Name:20A BL_S 4in1 ESC Con. Current: 20A Input Voltage: 2-4S Lipo Support BEC: NO Firmware: BLheli_S Dimension: 29x31mm Mounting Hole: 20x20mm Weight: 4.9g – Support DShot150, DShot300 and DShot600 Don't Recommend PWM |

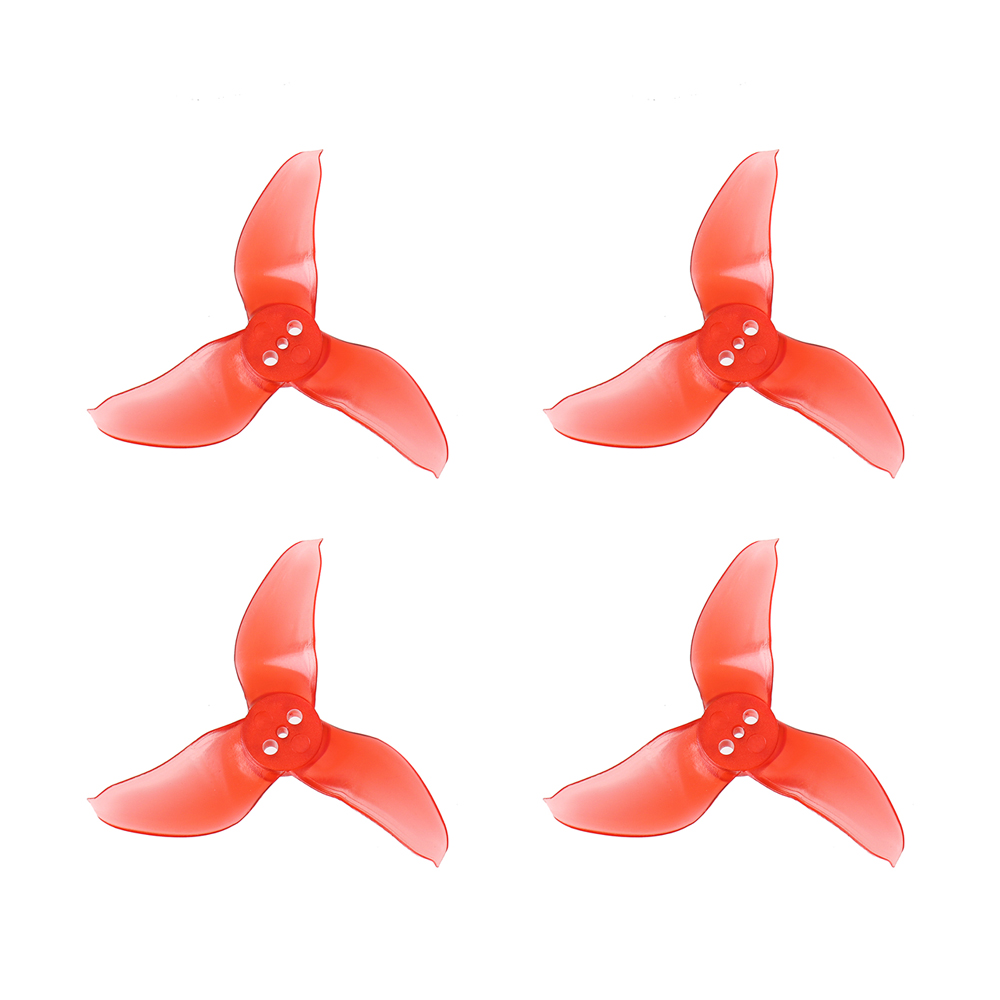

| Emax Avan Blur 2 Inch Propeller | Item Name: Emax Avan Blur 2 Inch 3-Blade Propeller
Diameter: 2 inch
Pitch: 1.9 inch
Weight: 1.1g
|
| FPV Transmitter | Item Name: 5.8G 40CH 25mW 100mW VTX Input Voltage: 5-6V Operation Current (5.5V) : 310mA@25mW 350mA@100mW Frequency: 5.8G 40CH 5645-5945MHz |
| FPV Camera | Item Name: Runcam Split Mini 2 Camera
Field of View(FOV): FPV FOV 130° / Recording FOV 165°
Video Resolution: 1080@60fps / 1080@30fps / 720@60fps
Video File Format: MOV
Image Resolution: 2 MP
TV Mode: NTSC (720*480) / PAL (720*576) Switchable
Interface : JST 1.0mm / UART
Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10 / UHS-I / UHS-II / UHS-III)
Hole Distance of Installation: 20*20mm
Dimensions: PCB 29*29mm / Lens Module 19*19mm
Power Input: DC 5-20V
Working Current: 650mA @5V / 270mA @12V
Weight: 12.5g
|
| Receiver | Without Receiver Version : NO Receiver
Compatible DSM2/X Receiver Version: DSM2/X Receiver Compatible Frsky Receiver Version: Frsky Receiver |

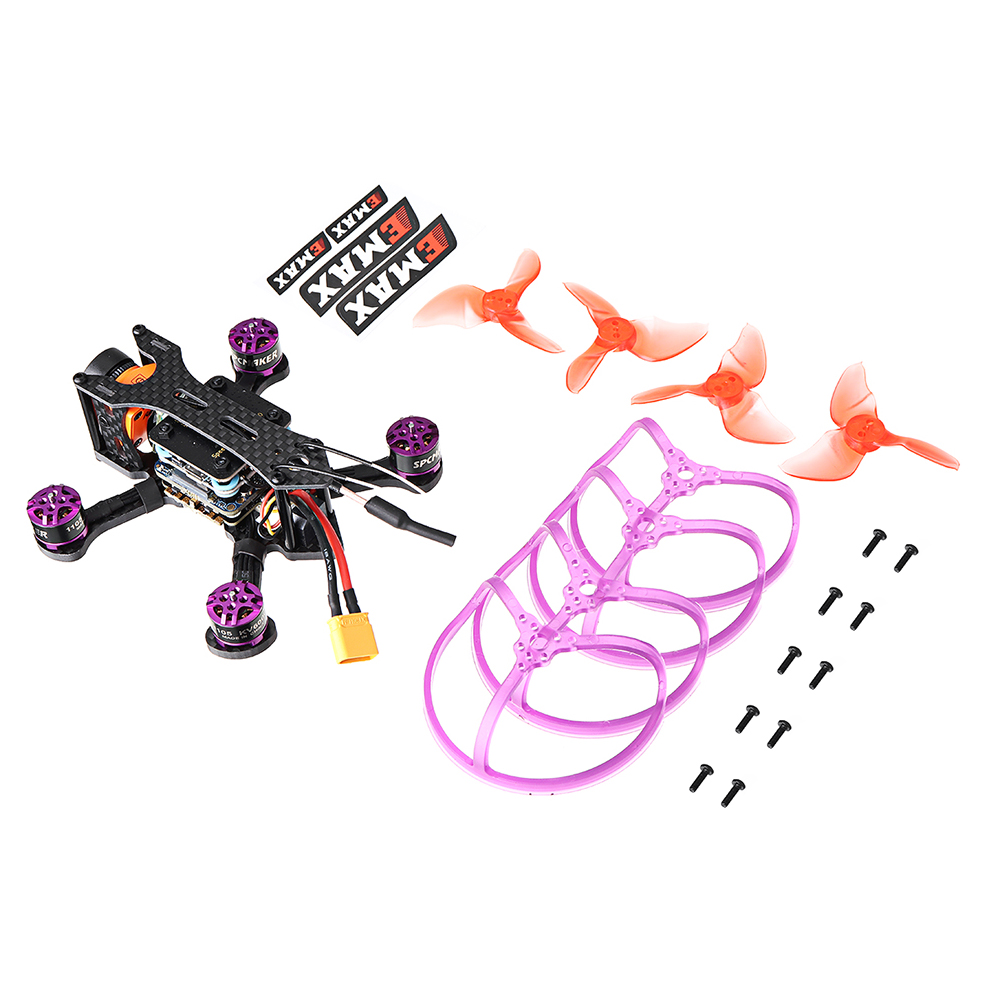

Package Included:
1x SPC K1 95mm FPV Racer

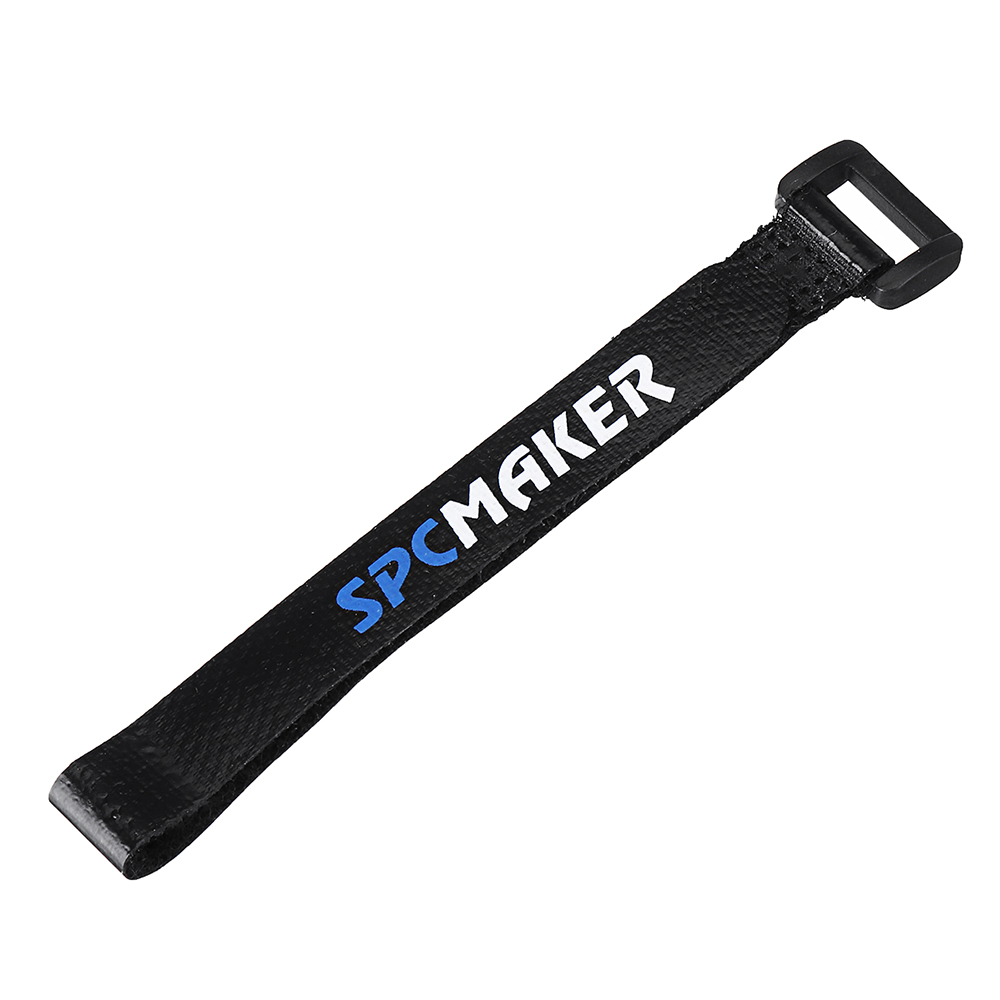

1x Strap
