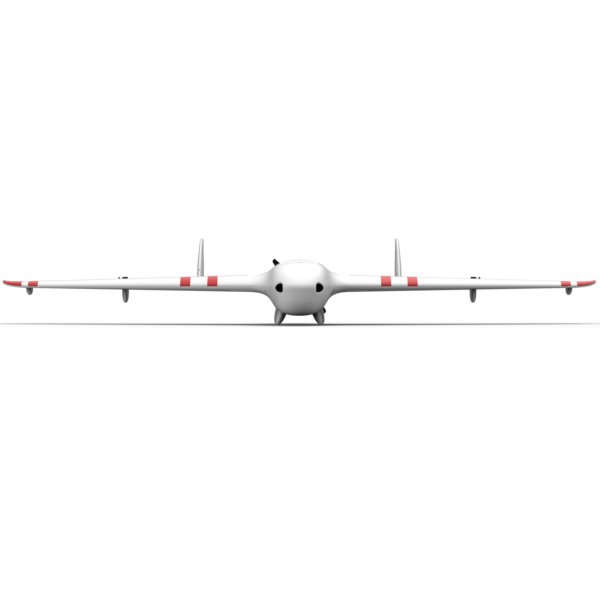

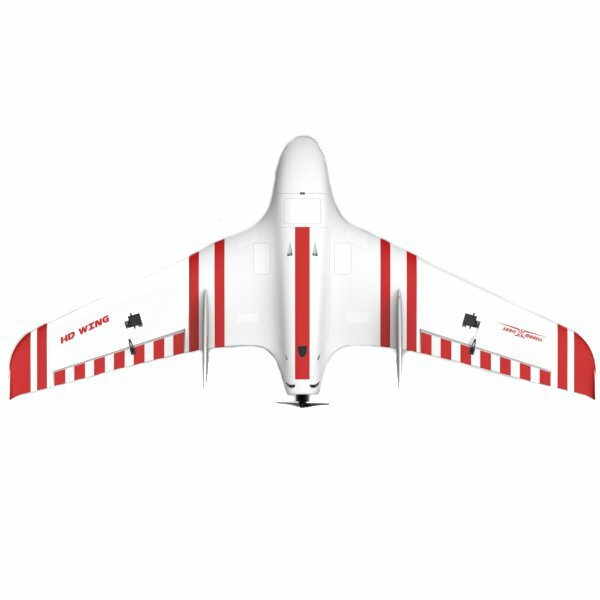

Sonicmodell HD Wing 1213mm Wingspan EPO FPV Flying Wing RC Airplane KIT
$178.19
Description
Description:
This 1213mm wingspan HD flying wing is designed for stable flight and multitask FPV flying, the special designed high efficiency airfoil and envelope offers great elevating force during flying, it’s spacious rooms inside fuselage are perfect for more FPV gear and large battery to ensure long flying time, we offer foam nose for multiple FPV camera mount, the separate hatches in two wings are for Vtx and GPS mounting with great cooling effect, the landing sled in bottom of fuselage and wings will protect you air frame from scratch.
Specification:
Brand Name: Sonicmodell
Item Name: HD Wing
Wingspan: 1213mm
Length: 536mm(21.10")
Wing Size: 23.5dm²
Flying Weight: 700g
Wing Load: 30g/dm²
Weight: 1300g
Package Size: 650*200*250mm
Recommended Parts For HD Wing (Not Included):
Motor: 2212 KV2200, Click Here
ESC: 30A, Click Here
Servo: 9g*2pcs, Click Here
Propeller: 6*4, Click Here
Lipo Battery: 11.1V 2200-4200mAh 25C, Click Here
Charger: Balance Charger, Click Here
Radio System: 2.4G 6CH, Click Here
Features:
Middle size FPV Flying Wing for middle range FPV flying
1213mm wing span compact size offers the best portability and flexibility
Very large equipment bay for FPV gear and big battery
Pre-molded 9g or 5g servos location for rudders if you plan on using them
Pre-cut 3 equipment hatch with cover in fuselage and wings for cameras / Vtx / GPS
Molded hand grip for hand launch
With foam landing sled for landing
With foam cone nose for normal flying
Multiple camera mount option, compatible for FPV and HD camera in the market
CG: Marked under wings from factory (Slightly forward for maiden flight)
Unassembled kit easy for DIY purpose
Note:
This item comes with all foam parts / extra nose / hardware / carbon fiber tube and strips(unassembled).
This item does not come with any electronic devices.
English Manual, Click Here
Package Included:
1x Sonicmodell HD Wing 1213mm Wingspan EPO FPV Flying Wing RC Airplane KIT,,,,,,,
Additional information
Weight | 1.3 kg |
---|
