Description

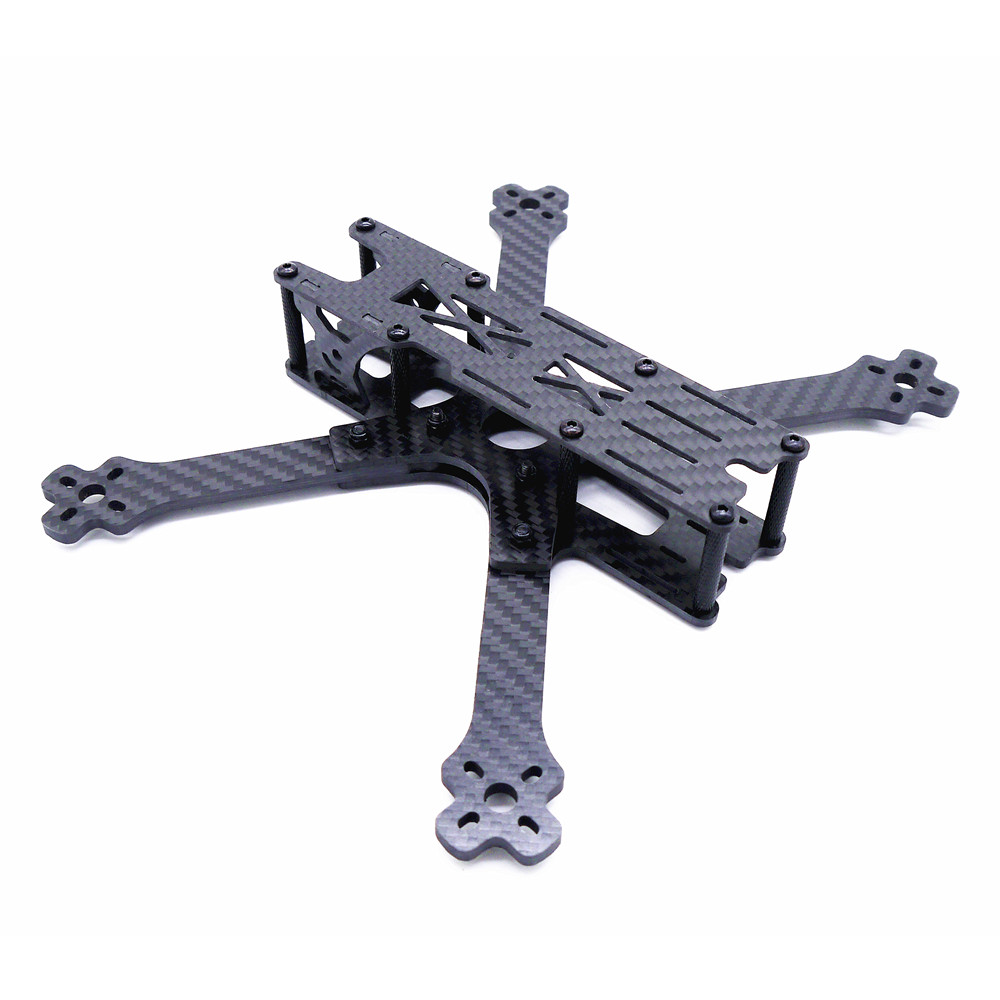

Sonic 5 225mm Wheelbase 4mm Arm Carbon Fiber 5 Inch Frame Kit for RC Drone FPV Racing
Specification:
Mode: Sonic 5
Item Name: 225mm Wheelbase 5 Inch Racing Frame Kit
Wheelbase: 225mm
Material: Carbon Fiber
Arm Plate Thickness: 4mm
Bottom Plate Thickness: 3mm
Center Plate Thickness: 3mm
Other Plate Thickness: 2mm
Inner Height: about 30mm
Weight: 123g
Recommmend Parts:
Flight Controller: 20x20mm/ 30.5×30.5mm F3/ F4 Flight Controller
Brushless ESC: 20-40A ESC
Brushless Motor: 2204/2205/2207/2306/2405/2307/2308/2506 Motor
Propeller: 5 Inch
Camera Mounting Width: 28mm
The following Parts are Compatible: ( Not Inlcuded)
FC & ESC Stack: 20x20mm HGLRC XJB F438 Flytower F4 FC & 33A BL_S ESC
DYS 30.5×30.5mm Flytower F4 Pro FC + F30A 4in1 BL_S ESC
Brushless Motor: Emax RS2205 2300KV 3-4S Racing Edition CW/CCW Motor
DYS Samguk Shu 2306 2250/2500/2800KV 3-4S Motor
Propeller: 10 Pairs LDARC 5045 5X4.5 5 Inch 3-Blade Propeller CW & CCW
2 Pairs Gemfan Windancer 5042 5×4.2 Inch PC 3-Blade Propeller
Lipo Battery: GaoNeng GNB 4S 15.2V 1300mAh 120C 240C Lipo Battery
Package Included:
1x Sonic 5 Frame Kit
