Description

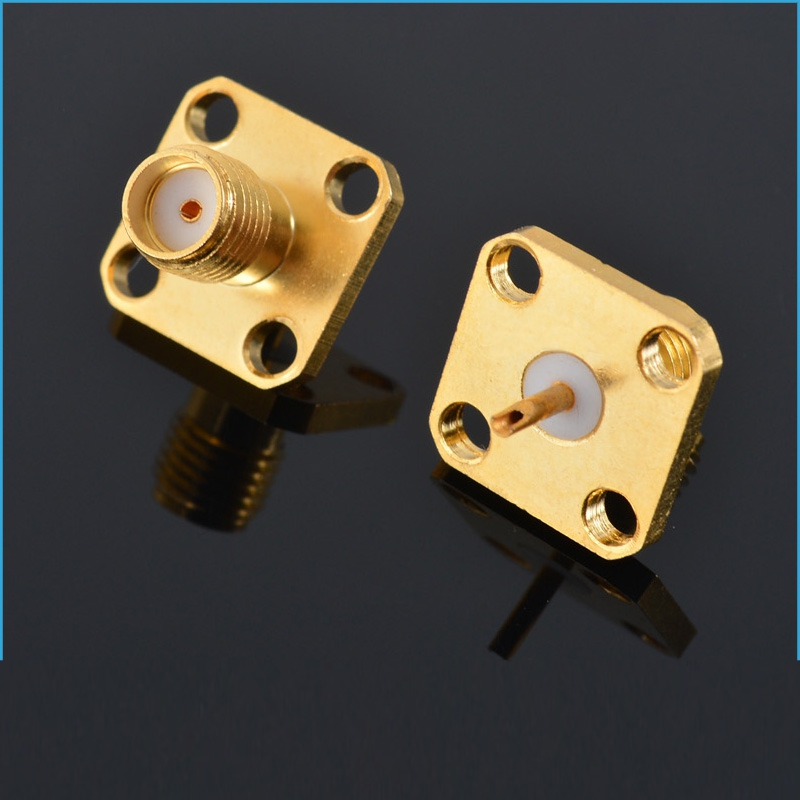

SMA-KFD 5mm Flange Terminal Connector SMA Female 4 Hole Square Plate Panel Straight For Coaxial Cable
Specification
Temp. : -65~ ~
Vibration : MIL-STD-202,Method 213
Impedance : 50Ω
Frequency : DC~ ~
Working Voltage : 335V max (effective)
Withstand Voltage : 1000V rms (Minimum sea level)
Contact Resistance
Center Contact ≤ 3 mΩ
Outer Contact ≤ 2 mΩ
Insulation Resistance ≥ 5000MΩ
Insertion Loss ≤0.15 dB/6GHz
VSWR
Straight soft cable≤1.10+0.002f
Semi-rigid cable≤1.05+0.001f
Curved flexible cable≤1.20+0.003f
Durability≥500 Times(cycles)
Package Included
1 x Connector
