Description
Slosstyle HX Type 5 Inch 6 Inch 238mm 273mm FPV Racing Frame Kit 5mm Arm Supports Foxeer HS1177 FPV Camera
Description:

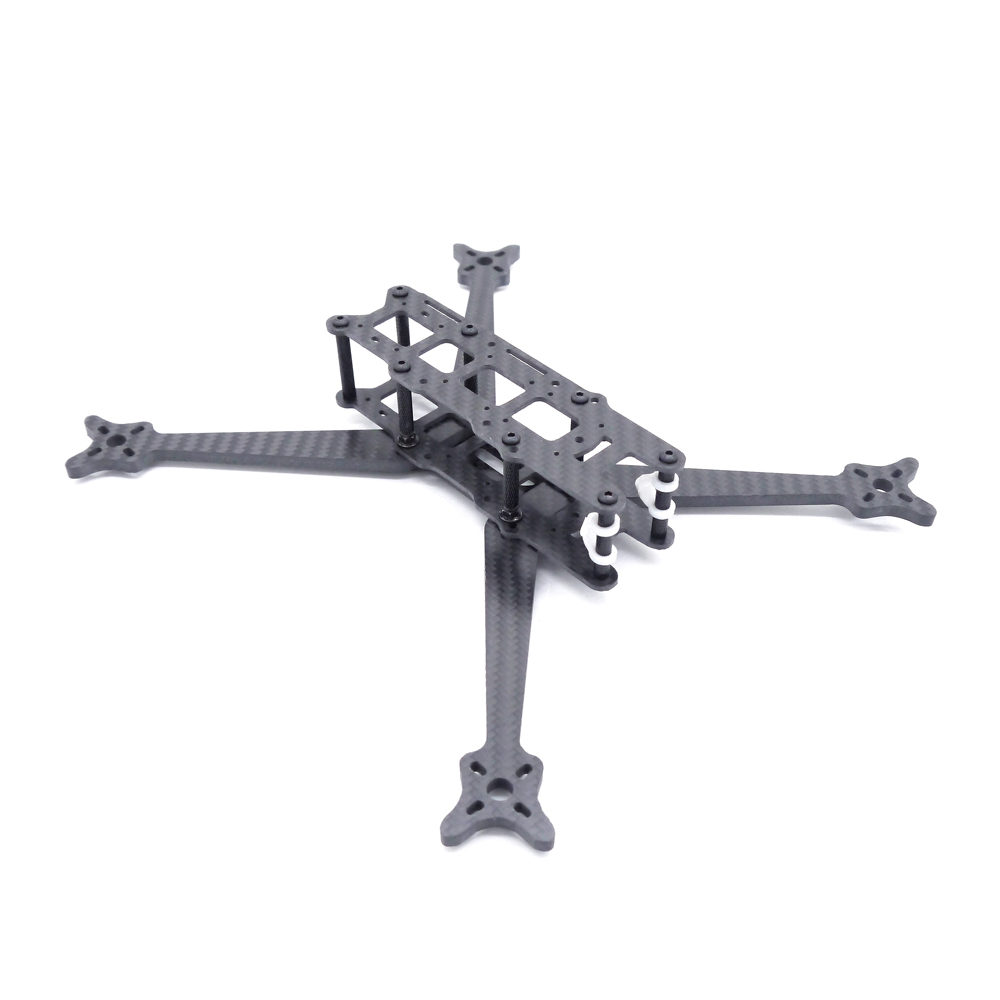

Item name: Slosstyle HX Type Frame Kit
Frame type: HX
Wheelbase: 5 inch 238mm, 6 inch 273mm
Frame weight: 5 inch 96g, 6 inch 106g
Frame arm thickness: 5mm
Bottom plate thickness: 2mm
Upper plate thickness: 2mm
Other plates thickness: 2mm
Recommend parts (package doesn't include):
Brushless motor: 22xx
Brushless ESC: 20-40A
Flight controller: F3 / F4 / F7 (mounting holes: 30.5*30.5mm, 20*20mm)
FPV camera: Foxeer XAT600M HS1177 / HS1177 V2 600TVL CCD (width: 27mm)
The following products in our website are suitable for this frame:
Brushless motor: Racerstar BR2205 2300KV or EMAX RSII 2206 1600KV 1700KV 1900KV 2300KV 2700KV or DYS Samguk Wu 2206 2400KV 2700KV
Brushless ESC: Racerstar REV35 35A BLheli_S 3-6S 4 In 1 or Racerstar RS20Ax4 Blheli_S 2-4S
Flight controller: F3 Acro 6 DOF/Deluxe 10 DOF or Upgrade DYS F4 Pro V2 AIO or Matek Systems F722-STD F7
Flight controller & ESC: MAMBA F405 Betaflight Flight Controller F40 40A 3-6S DSHOT600 ESC or Racerstar StarF4S 30A Blheli_S 4 in 1 ESC AIO F4 OSD
Propeller: Racerstar Fish Bone 5041 3 Blade or DALPROP T5045C Cyclone 3 Blade or FCMODEL 6045 3-Blade or Dalprop Cyclone T6040C 3-blade
Brushless ESC: Racerstar REV35 35A BLheli_S 3-6S 4 In 1 or Racerstar RS20Ax4 Blheli_S 2-4S
Flight controller: F3 Acro 6 DOF/Deluxe 10 DOF or Upgrade DYS F4 Pro V2 AIO or Matek Systems F722-STD F7
Flight controller & ESC: MAMBA F405 Betaflight Flight Controller F40 40A 3-6S DSHOT600 ESC or Racerstar StarF4S 30A Blheli_S 4 in 1 ESC AIO F4 OSD
Propeller: Racerstar Fish Bone 5041 3 Blade or DALPROP T5045C Cyclone 3 Blade or FCMODEL 6045 3-Blade or Dalprop Cyclone T6040C 3-blade
Package included:
1 x Slosstyle HX Type Frame Kit
