Description
Overview:
Our goggles is first goggles integrated with receiver and fully functional user interface, pilots just need install the antenna and plug the battery, easy to use, no need to purchase extra receiver and head track-er module, the user interface is easy use, no need take off the goggles to do all the setting.
SKY03S is the update version of Original sky03, we update the ergonomics, which fits pilots face perfectly, and we update the software off the goggles, pilots can calibrate the voltage readings of the goggles.
The SKY03O is the OLED version of SKY03, with resolution of 1024*768 and OLED display, the vivid color and high contrast ratio, pilots can see more details, the new optical make the image crystal clear and no image distortion and blur edge.
Operational Guidance:
The two 5.8GHz wireless receiver modules and the new DVR system are built in the SKY03O FPV goggles. The wireless receiver system can work in the diversity mode to improve the receiving effect. In this mode, the channel and band settings for wireless receiver can be compatible with most of the conventional ISM 5.8GHz transmitters, in order to support the 6 bands and the 48 channels (for detailed bands and channels, see the specification).
DVR system use high-quality H.246 video compression technology to better restore the video screen, save the more storage space, support the 128GB high-capacity memory card(UHS-I U1), and support the automatic video recording function. For details, see the description of the "Video" section.
Specifications:
Brand Name: Skyzone
Item Name: SKY03S / SKY03O (optional)
Color: White, Black, Red, Camouflage, Diamond Midnight Blue, Vagary Ice Blue, Amber, Super Glossy Metallic Orange, Super Glossy Metallic Black Rose (optional)
Features:
– Support head tracking; Pan : 180°/120°/90°; Tilt: 120°/90°/60°

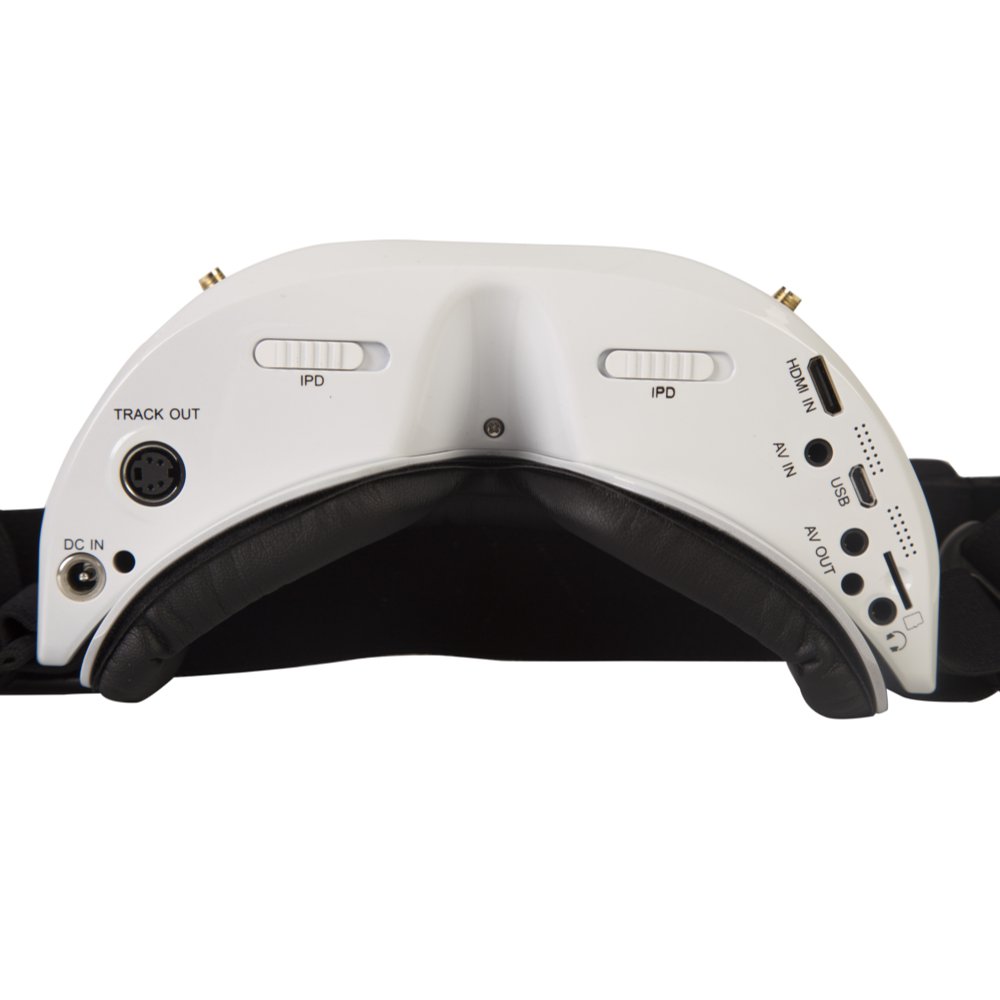

– Adjustable 57.5 to 69.5mm wide ran-ge IPD.
– RSSI Signal Inten-sity Indicator.
– Diversity 5.8Ghz receiving modules,total 48CH and 6 bands.
– Support RF Normal, RF Racing, HDMI IN, AV IN and PLAYBACK modes.
– Built-in fan for defogging and dissipate the heat.
– With a display window for the LED light. The LED MODE can be set in the system menu.
– Support 2S~6S battery, more convenient in the field.
English Manual for SKY03S, Click Here
English Manual for SKY03O, Click Here
Package Included:
1 x SKYZONE SKY03S/SKY03O 5.8Ghz 48CH Diversity FPV Goggles
1 x Carry Case
1 x Data Cable
1 x JR Data Cable
2 x 5.8Ghz 2dBi Antenna
1 x AV Cable
1 x Power Cable
