Description
Skyzone RD40 FPV 5.8G 40CH Diversity Receiver
Description:
Brand Name: Skyzone
Item Name: RD40 Diversity Receiver
Frequency: ISM 5.8GHz 40CH

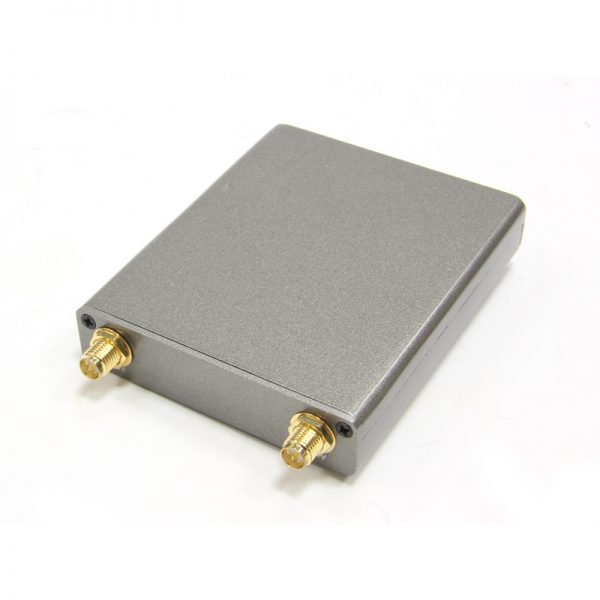

Connector: RP-SMA
Sensitivity: -90dBm
Power Supply Voltage: DC 7-24V
Current: 280mA
RF Input Matching: 50ohm
Video Output Level: 1.0Vp_p 75Ω
Audio Output Level: 1.0Vp_p 10KΩ
AV Port : 2.5mm
AV Port : 2.5mm
Dimension: 80 x 65 x 15mm
Weight: 100g
Features:
40 channels, 5 frequency band wireless receiving.
Two buttons for channel and band exchange individually.
Two number display, timely locate the current receiving frequency
and band
When power on, storage memory shows channel and frequency of the
last time.
Two-way video and audio signal output ( video: PAL, NTSC,CECAM ;
Audio: 6.5MHz)
Wide dynamic power supply ( 7-24v)
Two-way high senstivity receivers, make your signals more stable.
With specific indicator shows the current working state
Frequency: CH and FR form
FR1 or (A): 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
FR2 or (B): 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M
FR3 or (E): 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M
FR4 or (F): 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
FR5 or (R): 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M
Function:
1.Channel control and LED display.
When power on,press CH, RX1 and RX2 channel Change, and shows on
CH-LED display.
So Channel and digi-display loop from 1-8.
2.Frenquency control and LED display
When power on,press FR, RX1 and RX2 frenquency Change, and shows on
FR-LED display.
So Frenquency and digi-display loop from 1-5.

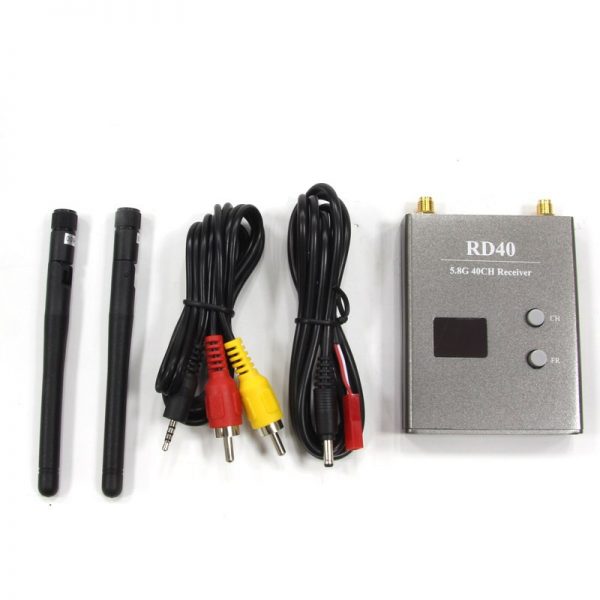

Package Included:
1 x Receiver
1 x AV Cable
1 x Power Cable
2 x Antenna
