Description:
Brand Name: Skyzone

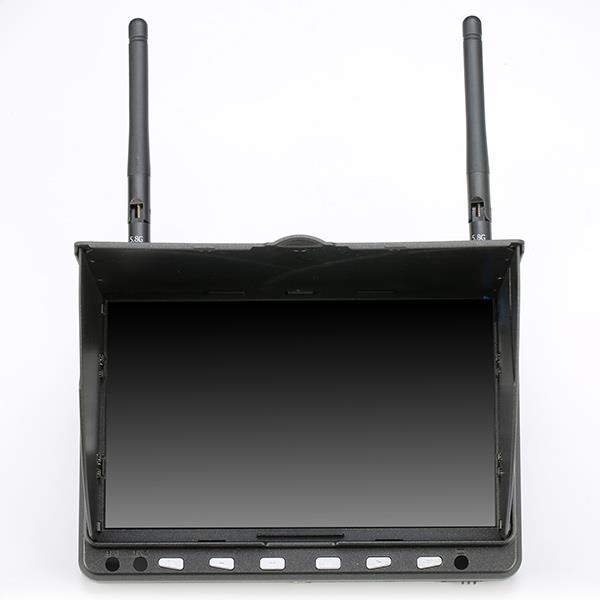

Item Name: HD02
Frequency: ISM 5.6GHz-5.95GHz
Sensitivity: -92dB
Format: NTSC/PAL
Output Voltage: 1V±0.2Vp-P/75Ω
Resolution: 1024 x 600 pixel
Luminance for LCM: 600 cd/㎡
Contrast Ratio: 700:1
Viewing Angle: 140/120 degree (horizontal/vertical)
Video Format: MP4
Support Max.32G SD card(not included)
Audio Range: 20Hz-20KHz stereo
Audio Output: Left 20mW+ Right 20mW
Stereo Double Speaker: Left 1 W; Right 1 W

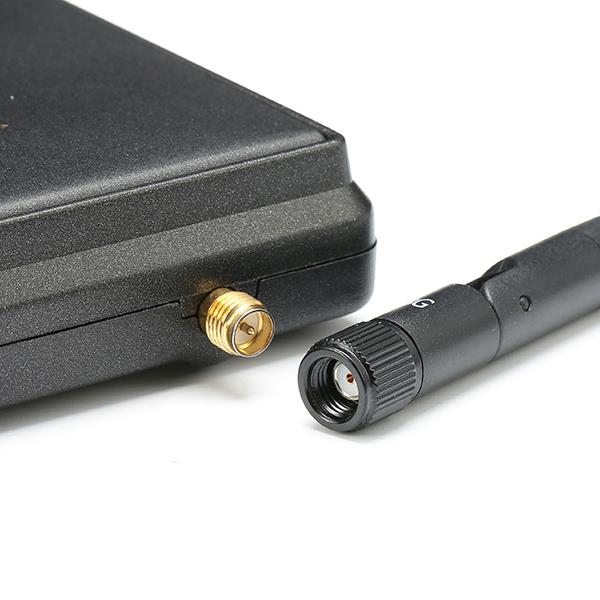

Antenna Connector: RP-SMA
DC Port: 3.5mm
HD Port Interface: C type
Working Voltage: DC7V- 24V
Current(monitor mode): 12V/650mA
Current(video mode): 12V/780mA
Battery: build in 2000mAh Battery
Temp.: -10℃-+65℃
Dimension: 176 x 128 x 23mm
Screen Dimension: 160 x 101mm
Weight: 250g
Band and Channel selection
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ
|
Features:
With DVR Function(optional)
Receiver diversity mode
One button auto searching, easy to operate
One button to record, cycle covering old video
Videos playback by device itself
Retractable sun shade
Stereo double speaker
Package Included:
1 x Monitor
2 x Antenna
1 x Video Cable
1 x Charging Cable
1 x User Manual
