Description

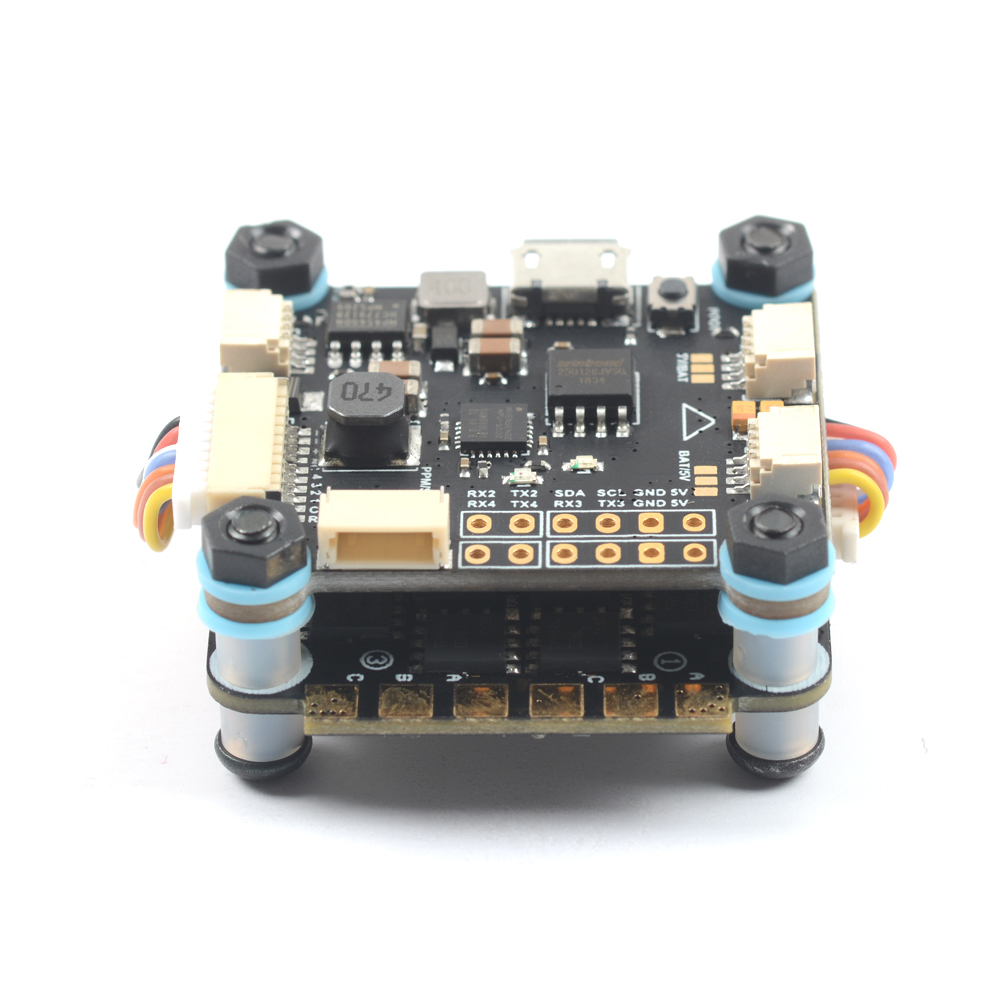

SKYSTARS TurboS F405 Flytower Betaflight Flight Controller & 40A Blheli_32 4 IN 1 Brushless ESC
Specificaiton:
Skystars TurboS F405 FC
Item name: F405 Betaflight Flight Controller
Input power: 7.4-25V (2-6S)
BEC: 9V/2A
MCU: STM32F405
Gyro: MPU6000
Flash: 16MB
OSD: AT7456
Mounting hole: 30.5*30.5mm
Weight: 6.8g
FC Features
– Supports Betaflight and Cleanflight.
– Additional UART (UART 4)
– Additional UART (UART 5)
– Incould socked head and flat pads for more secure soldering especially for beginners.
– I2C pad available for certain external sensors.
TurboS F405 Blheli_32 4IN1 ESC
Item name: Turbo S40HV ESC
Input voltage: 2-6S (7.4V~25V)
Continue current: 40A×4
Burst current: 40/50A (6S)
BEC: NO
Mounting: 30.5×30.5mm / φM3
Size:38X41X6.9MM
Weight: 15g
ESC Features:
– 4in1 ESC with 30.5×30.5mm mounting holes, supports DSHOT 1200, BLHELI32 firmware.
– 2 oz. copper PCB allows up to 120A maximum continuous current.
– Supports BLHeli32 pass-through for easy ESC upgrade and configuration.
– On this version added more CAPS to reduce power noise.
Package Included:
1 x TurboS F405 Betaflight Flight Controller
1 x TurboS 40A Blheli_32 ESC
