Description
Specifications:
Brand: SKYSTARS
Item No.: TA LON X110
Size:100*90*40 mm
Weight: About 45g
| Frame Kit |
Frame Kit
Name: Skystars TA LON X110
Wheelbase: 110mm
Props Size: 2.5inch
Arm Plate Thickness: 2mm
TOP Plate Thickness: 1.5mm
Material: 3k Carbon Fiber and TPU 3D print
Screw: 10.9 level screw
Weight: 13g
|
| Flight Controller |
FC Specifications:
MCU: 168MHz STM32F405
IMU: MPU6000 accelerometer/gyro (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Built in inverter for SBUS input (UART6-RX)
Ibus/dsmx Shared: UART1-RX
Smartaudio & Tramp VTX protocol supported
WS2812 Led Strip : supproted but not include
Beeper : supproted but not include
RSSI: Yes
|
| ESC |
Features:
– Support Dshot 600 in default out from factory
– Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and Dshot600
– Ultra light and ultra small ESC
-Composed of 3Oz gold plated PCB
-Supports higher KV motor and more power load, more suitable for violent flight of racing drone.
15A 2 – 4S BLS RGB light ESC:
Input Voltage: 2 – 4S Lipo battery
Constant Current: 15A
P eak Current: 18A
BEC Output: no
CPU: BB21 BLHELIS firmware
MOS Tube: TOP QUALITY MOSFET
|
| Transmitter |
FPV Transmitter
Output power: 0mW/25mW/100mW switchable
Control mode:button OR Channel changes and Pitmode setting through PWM TBS SmartAudio inside
BAT: 5V,40mA—-100mW
Video system: NTSC/PAL
Antenna: IPEX
Frequency: 5.8GHz 5 bands 40channels
Weight: 0.9 g
Dimension: 16*13*3mm
Mounting Hole: 20mmx20mm
|
| Motor:(4S) |
skystars 1103 8000KV, race edition,hollow shaft,
Made of NSK bearings and curved magnets for longevity and efficiency
|
| Camera |
Runcam nano 2
Image Sensor: 1/3" CMOS
Horizontal Resolution: 700TVL
Lens: 2.1mm(M8) FOV 155°
Signal System: NTSC / PAL
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current: 110mA@5V
Housing Material: ABS
Net Weight: 3.2g
Dimensions: L14mm*W14mm*H16mm
|
| Propeller | 65mm 2Blade Propeller Prop |
| Antenna | 5.8G 3dBi Brass Antenna Omni Directional IPEX Port |
Package Included:

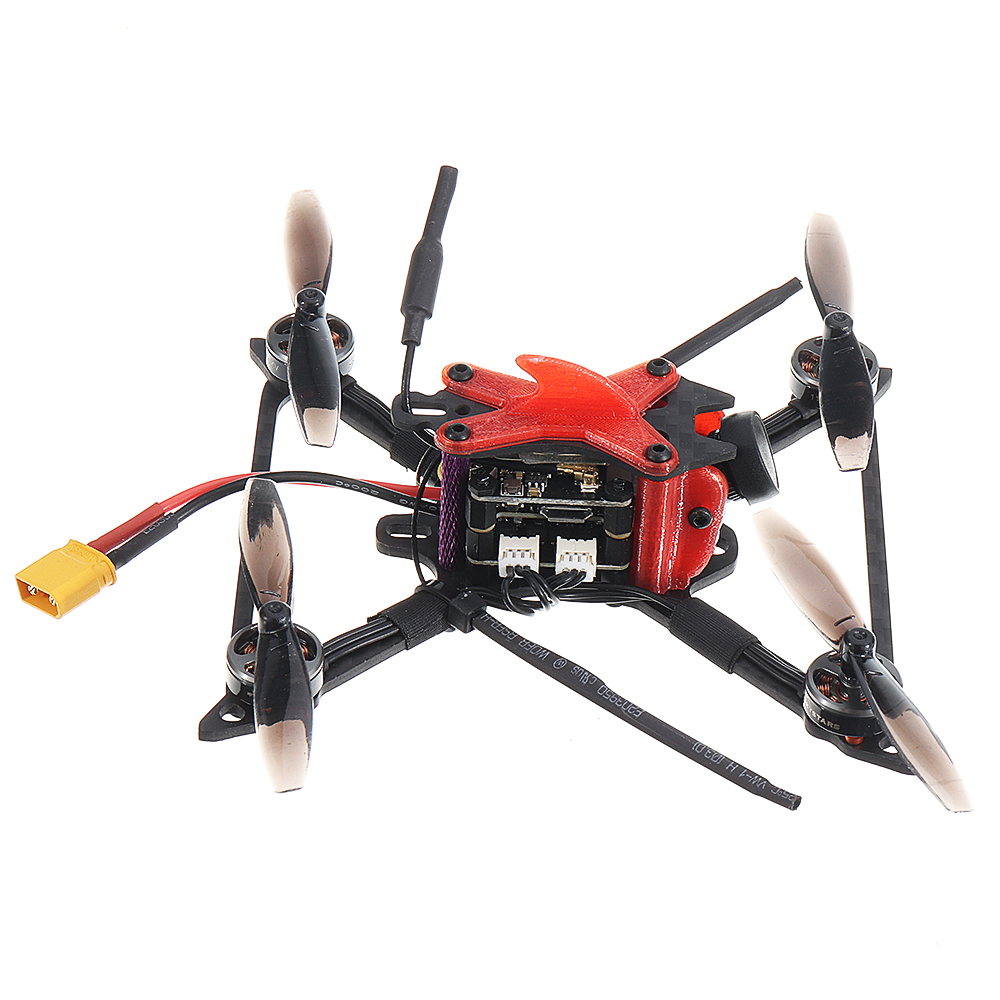

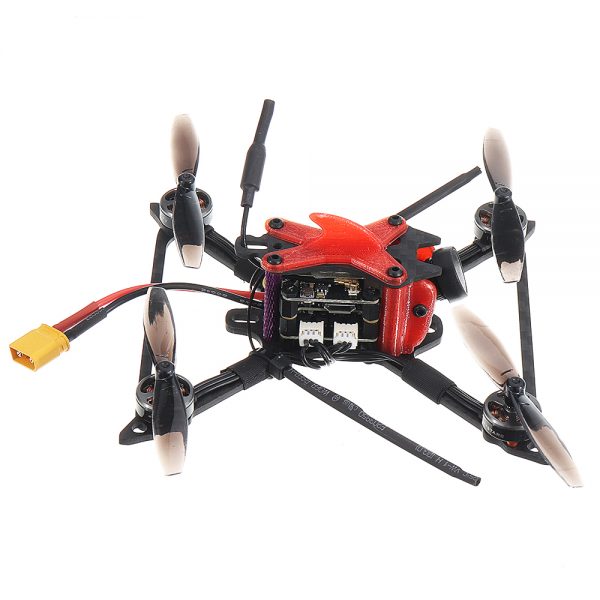

1 X SKYSTARS TA LON X110 2~4S RC Drone
