Description

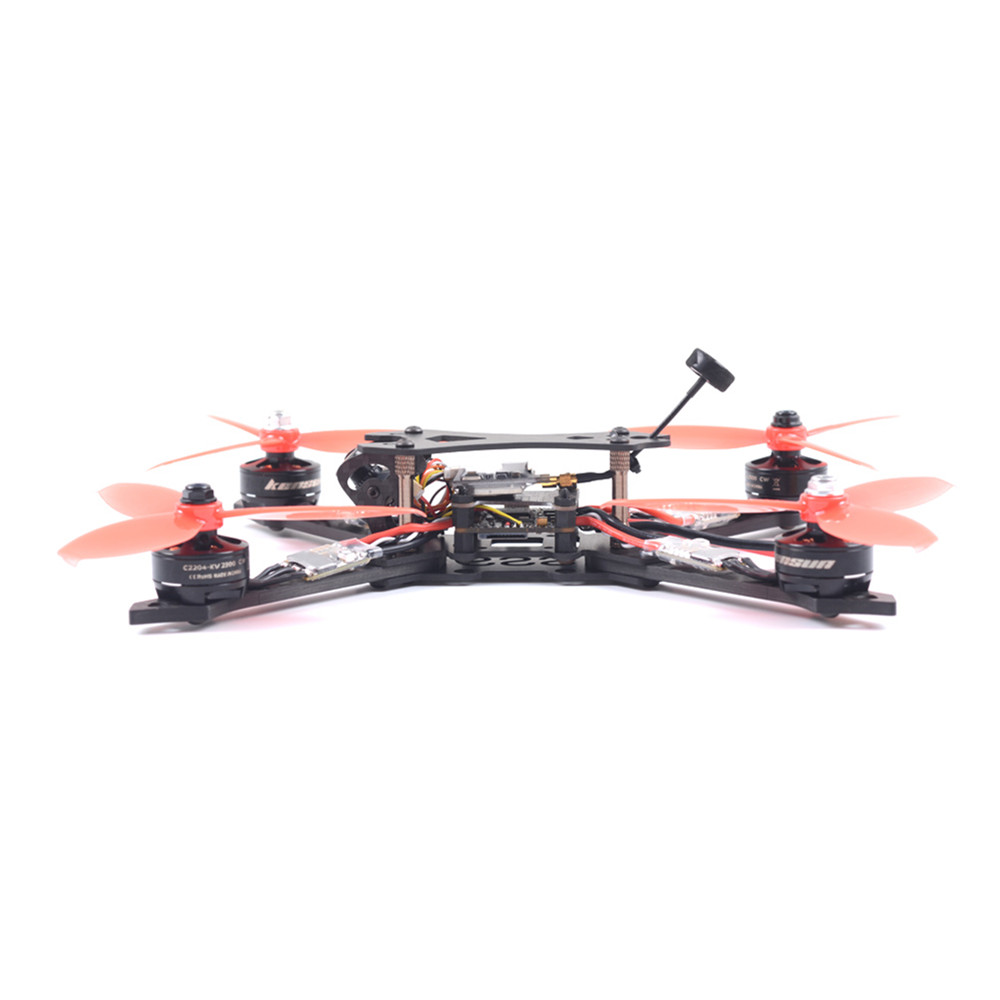

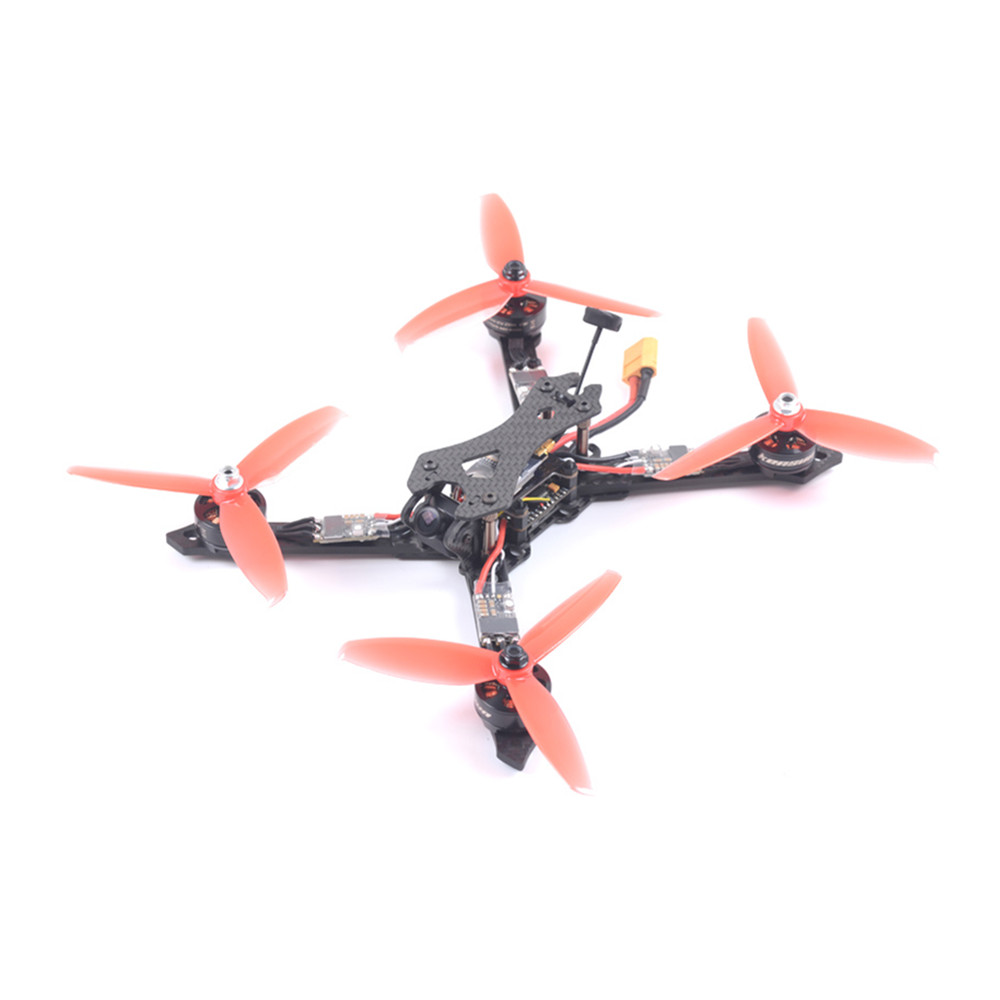

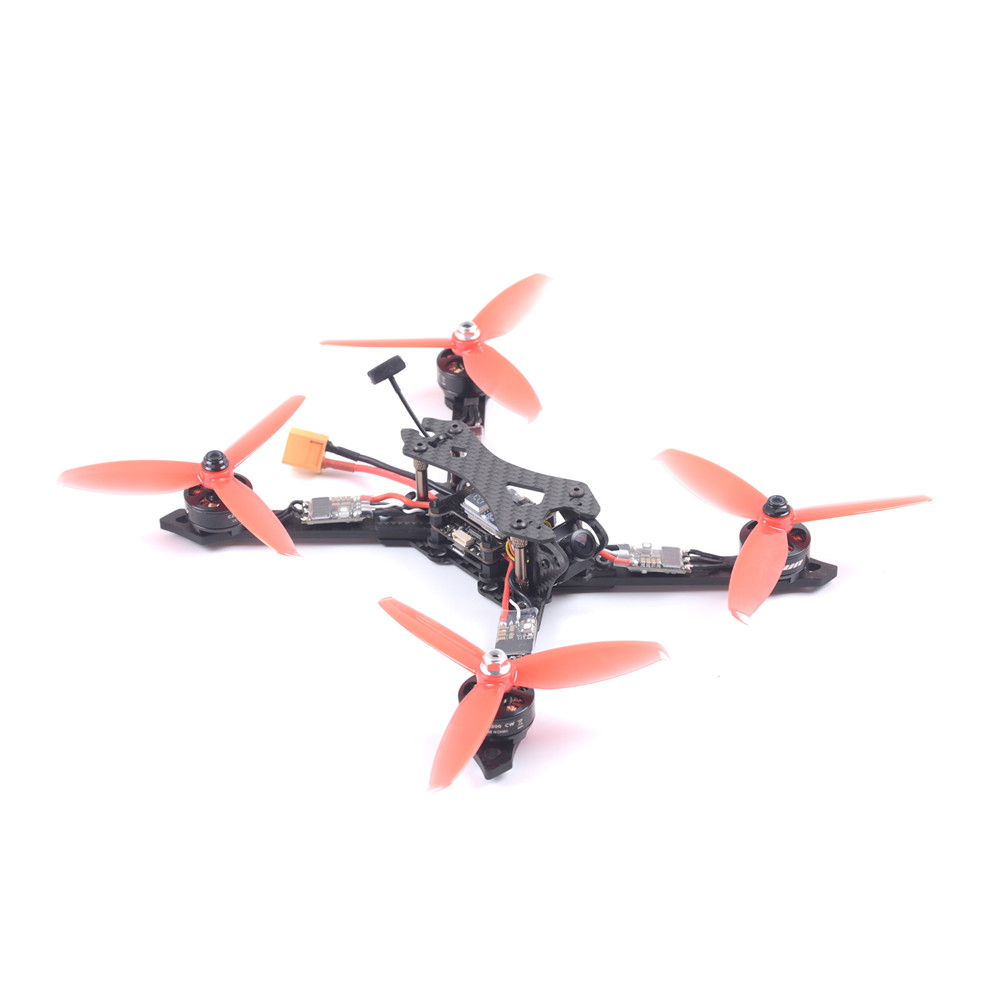

SKYSTARS STX225 DIY Version 225mm RC FPV Racing Drone PNP w/ F4 OSD 35A RGB LED 1200TVL 40CH 600mW VTX
Notice: this is the DIY version that comes unassembled.
Specification:
Brand name: SKYSTARS
Item name: STX225 DIY version FPV racing drone PNP
Recommended 3-5S battery (package not included)
| Frame kit | Wheel base: 225mm Frame arm thickness: 4mm Bottom plate thickness: 2mm Side plate thickness: 2mm Frame kit material: 3K carbon fiber |
| 2204 2300KV Brushless Motor | Motor KV: 2300RPM/V Idle current (Io/10V): 1.26A Lipo cell: 3-5S Weight: 26g Max continuous current: 25A Max continuous power: 240W Max thrust: 700g (4S/5") Configu-ration: 12N/14P Motor resistance (RM): 0.0572 Ω Stator diameter: 22mm Stator thickness: 4mm Motor diameter: 27.55mm Motor body length: 20mm Overall shaft length: 34.2mm Prop adapter shaft: M5 Bolt holes spacing: 16mm Bolt thread: M3 Propeller: 5inch |
| 35A BLHeli_32 RGB LED ESC | Continuous current: 35A Peak Current: 40A(10S) Input voltage: 2-5S BEC: NO bec Main control chip: STM32F051 Firmware: BLHeli_32 supports 500HZ PWM, Oneshot125, Oneshot42, Multishot, Dshot150/300/600/1200. |
| Customized F4 Flight Controller | Main control chip: STM32F405 Sensor:MPU6000 Power supply: 5V Integrated OSD Onboard LC filter PID cycle rate & gyro refresh rate up to 8Khz Supports BetaFlight / inva racing firmware |
| 1200TVL CMOS Camera | Case size: 19mm*19mm Weight: 9.5g Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP) Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP) Signal system: PAL/NTSC switchable Resolution ratio(horizontal center): 1200TVL Video output: 1.0Vp-p/75Ω Automatic gain control: yes White balance: on/off optional Exposure mode: electron exposure Electronic shutter: 1/50(1/60) – 1/100000 S Gamma correction: 0.45/1.0 Synchronization method: inter-sync Camera lens: standard 2.3mm Lens operating voltage: DC12V (wide voltage, measured can work normally at 7.5-13V) Working current: 70mA (low power consumption) Working temperature: -20℃~-60℃ Humidity: 0%~98% |
| 5.8G 40CH 600mw switchable VTX | Output power & transmission distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW Transmitting power: 600mW Full video format: NTSC /PAL Input voltage & power dissipation: 7V~24V, +12V/190mA Size: 38*18*8mm Weight: ≤16g(except antenna) With output power self-check function. Nixie tube SCAN: frequency point (1-8), frequency band (A-E), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw) Antenna: RP-SMA |
| 5042 3 Blade Propeller | Material: PC Mounting hole: 5mm Center thickness: 8mm Quantity: 2 pairs Weight: 7.25G a pair Color: blue, red, yellow, purple, white MIX Delivery color randomly |
Package included:
1x STX225 DIY version FPV racing drone PNP
