Description

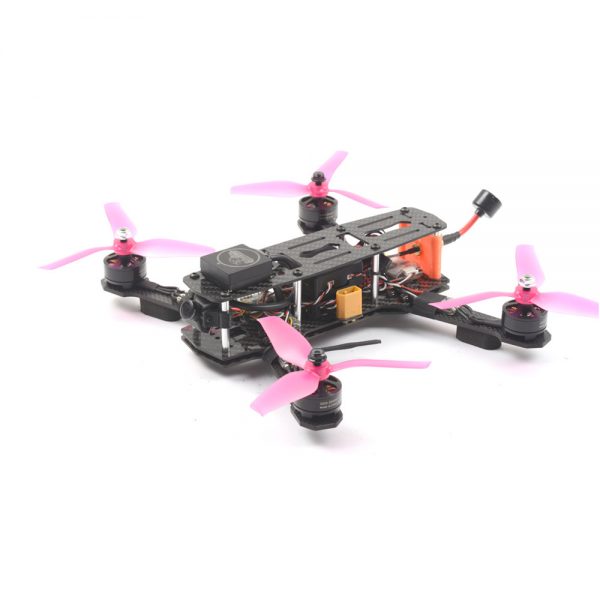

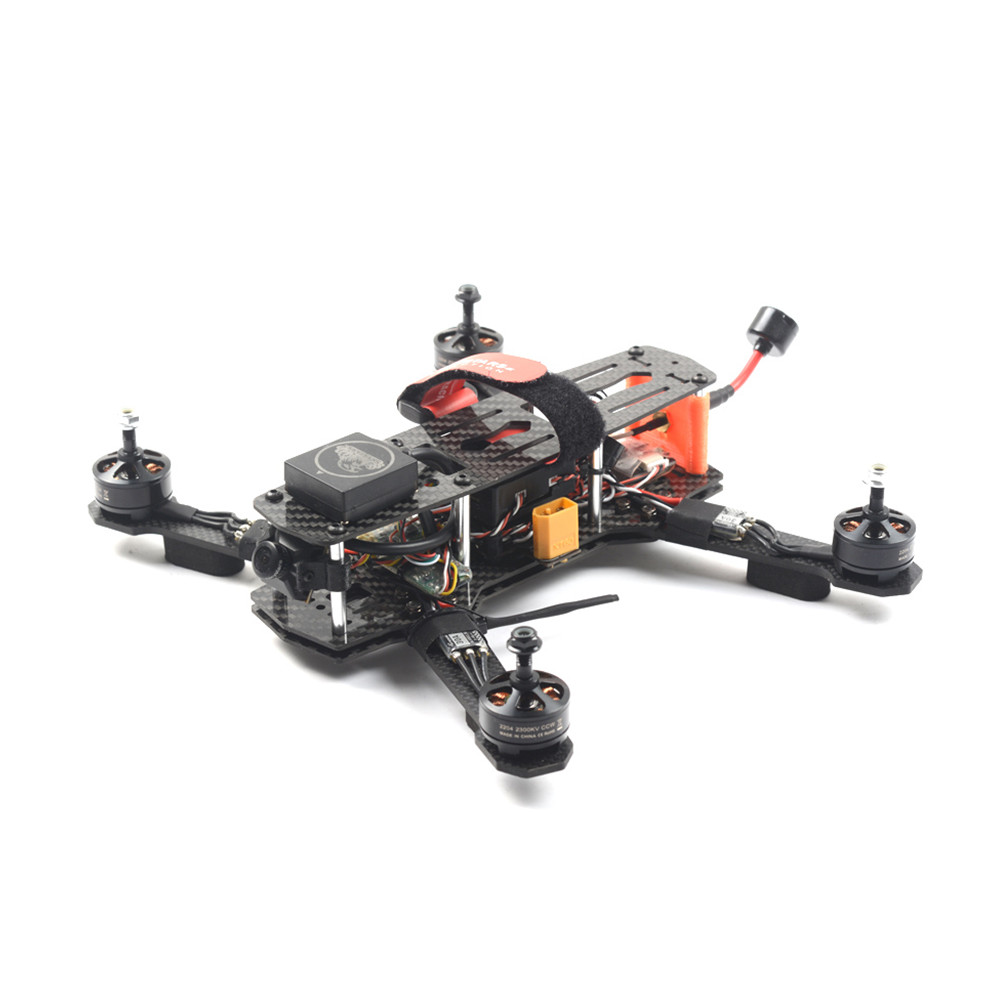

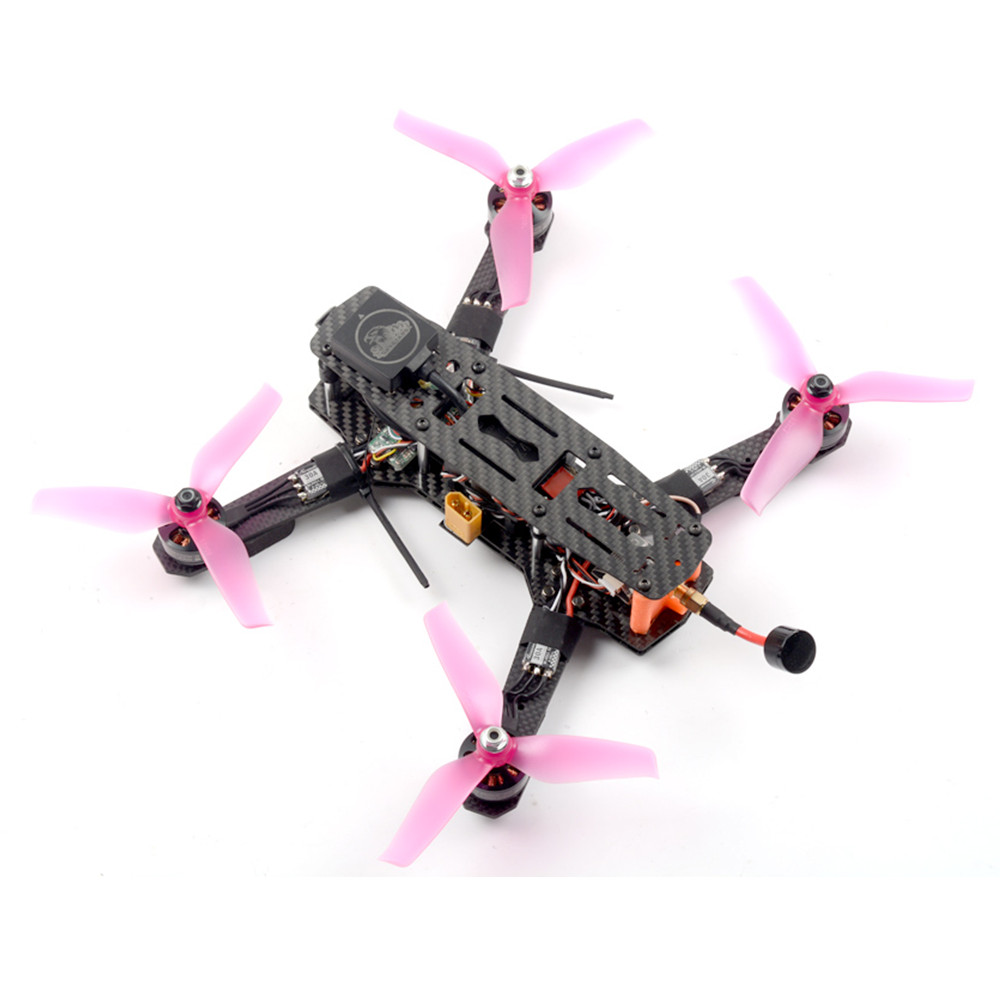

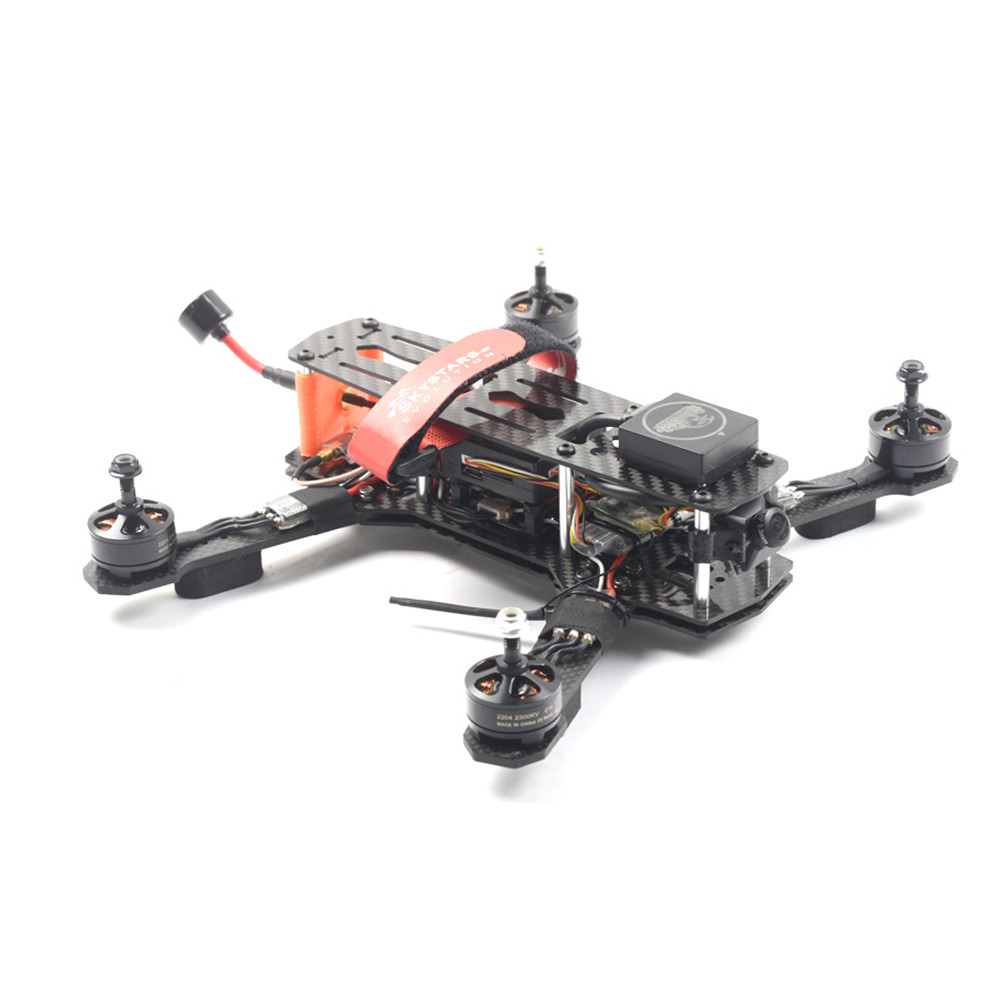

Skystars QAC250 250mm Mini Pix F4 FPV Racing Drone PNP BNF w/ 25/200/600mW VTX 1200TVL Camera
30% OFF Coupon Code: BGQAC250
Quantity Limited, Valid to July 31th.
Specification:
Brand Name: Skystars
Model: QAC250
Item Name: 250mm Mini Pix F4 5 Inch 5.8G FPV Racing Drone
Version: PNP( Without Receiver) / With Frsky R9 MM RX/ With Frsky XM+ RX
Drone Wheelbase: 250mm
Arm Thickness: 3mm
TOP Plate Thickness: 1.5mm
Bottom Plate Thickness: 1.5mm
Bottom Plate Thickness: 1.5mm
Side Plate Thickness: 1.5mm
Material: 3K Carbon Fiber & Aluminium Alloy
Empty Frame Kit Weight: 140g
| Mini Pix F4 Flight Controller | Item Name: Mini Pix F4 FC Size: 36x36mm (PCB only ) Weight: 9g(FC Board only) USB Voltage: 5V (+-0.4V) PM Module Input Voltage: 5V (+-0.4V) Servo Input Voltage: 5-16V FC Voltage: 5V Temperature Range: -40-85*c FMU Processor: SMT32f407(32bit Arm Cortx-M7 168Mhz)
Sensor:
Gyroscope: ICM-20689
Accelerometer: ICM-20689
Barometer: MS5607
Compass: IST8310
|
| 30A BL_32 ESC | Con. Current: 30A Burst Current: 40A (15S) Input Voltage: 2-4S Lipo BEC: NO Current Sensor Monitor Function: NO Size: 26.5x14x5mm Weight: 7g – Support Dshot 1200 in default out from factory
– Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300
and Dshot600 |
| 40CH 25/200/600mW VTX |
Output Power & Transmission Distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW
Transmitting Power: 600mW
Full Video Format: NTSC /PAL
Input Voltage : 7-24V
Power Dissipation: +12V@190mA Size: 38x18x8mm
Weight: about16g (except antenna)
– With output power self-check function.
Nixie tube SCAN: frequency point (1-8), frequency band (A-E),
power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw) Antenna Connector: RP-SMA
|
| Skystars 2205 2300KV Motor |
Brand: Skystars
ST2205 2300KV Brushless Motor
KV : 2300
MAX thrust: 780g
Length: 36mm
NO.OF cell : 2-4S
Diameter : 27.5mm
Framework : 12N14P
Shaft : 5mm
Weight: 31g
CW screw thread motor comes with silver cap
CCW screw thread motor comes with black cap
|
| 5042 Propeller | Item Name: 5042 5×4.2 5 Inch 3-Blade Propeller Quantity: 2 CW & 2 CCW Color: Pink Material: PC |
| 1200TVL FPV Camera |
Case size: 19mm*19mm
Weight: 9.5g
Total pixels: PAL: 1020H×596V (0.61MP);
NTSC: 1020H×508V (0.52MP) Effective pixels: PAL: 976H×582V (0.57MP);
NTSC: 976H×494V (0.48MP) Signal system: PAL/NTSC Switchable
Resolution ratio(horizontal center): 1200TVL
Video Output: 1.0Vp-p/75Ω
Automatic Gain Control: yes
White Balance: on/off (optional )
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) – 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: inter-sync
Camera lens: standard 2.3mm
Lens operating voltage: DC12V (wide voltage, measured can work normally at 7.5-13V)
Working current: 70mA (low power consumption)
Working temperature: -20℃~-60℃
Humidity: 0%~98%
|
| Mini M8N GPS Module |
Brand Name: SKYSTARS
Item Name: ST100 Mini M8N GPS
Size: 31x30x12mm
Weight: 22g
Positional Accuracy: 50 centimeter pre-cision when working with concurrent GNSS
Ve-locity Pre-cision: 0.1m/s
Max. Height: 50000m
Max. Speed: 515m/s
Max. Acceleration: 4G
Max. Update Rate: up to 10Hz
|
| 5.8G 2.5dBi Antenna |
RHCP 5.8G 2.5dBi Super Mini Antenna
Size: 60mm x 17mm
Weight: 7.4g
Gain: 2.5dbi Axial ratio: <1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
VSWR: <=1.2
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
|
| Receiver | PNP Version: Without Receiver Frsky R9 MM Receiver Version: with Frsky R9 MM RX Frsky XM+ Receiver Version: with Frsky XM+ RX |
Package Included:
1x Skystars QAC250 Racing Drone
1x 20mm Battery Strap
1x Anti-slipping Pad
