Description
Skystars G730L HD F4 OSD FPV Racing Drone PNP BNF w/ RunCam Split 2S 1080P Camera & Mini M8N GPS
25% OFF Annivesary Coupon: BGAD7HD
Limited Quantity, Valid to Sept. 12th
Specification:
Brand Name: Skystars
Model: G730L HD
Item Name: 300mm F4 OSD FPV Racing Drone
Version : PNP( Without Receiver)/ With Frsky XM+ receiver
/ Frsky R9 MM receiver (Optional)
Drone Wheelbase: 300mm
Arm Plate Thickness: 4mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Side Plate Thickness: 2mm
Material: 3K Carbon Fiber & Aluminium alloy
Weight: 221g
| Micro F4 Flight Controller |
Item Name: Micro F4 Flight Control Board (D-Shot Version)
MPU: 6000
CPU: STM32F405RGT6
Baro: BMP280 (I2C) Input Voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 30.5×30.5mm board, 3mm mounting holes (M3)
Weight:7g
Support Subs/PPM/DSMX receiver
|
| 50A BLheli_32 ESC |
Item Name: 50A 2-6S Blheli_32 ESC Built-in RGB LED
Input Voltage: 2-6S Lipo
Constant Current: 50A
Burst Current: 60A
BEC Ouput: NO
CPU: STM32F051 BLHELI_32 firmware
Size: 26x15x6mm
Weight: 7.4g
MOS Tube: TOP QUALITY MOSFET
– Support Dshot 1200 in default out from factory
– Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and Dshot600
– Ultra light and ultra small ESC – The color of RGB LED can be set by Blhelisuite. – Powered by high performance STM32 MCU frequency up t0 48 MHZ – Composed of 3Oz gold plated PCB – Flashed with the latest BLheli32 firmware – Supports higher KV motor and more power load, more suitable for violent flight of racing drone – Aluminum heat sink effectively slow down the temperature rise |
| 2306 1800KV Motor | Brand Name: Skystars Model: ST2306 KV:1800KV
Stator Diameter: 23mm
Stator Thickness: 6mm
No.of Stator Poles: 14
Motor Dimension (Dia.*Len): 33.75X28.8mm
No Load Current 10V(A): 1.5
No.of Cells(Lipo): 4-6S
Max Continuous Power (W) 180S: 1000
Internal Resistance: 78m ohm
Max Current (15S): 55A
|
| 7056 3-Blade Propeller | Model: DP7056C Quantity: 4 CW & 4 CCW Color: Transparent White |
| 40CH 25/200/500/800mW VTX |
Output power: 25mW/200mW/500mW/800mW switchable
Control mode:button OR Channel changes and Pitmode setting through PWM With a microphone, you can switch the audio flexibly
BAT: 7-26V,BEC 5V-1A
310mA—-800mW
Video system: NTSC/PAL
Antenna: MMCX
Frequency: 5.8GHz 5 bands 40channels
Weight: 4.2 g
Dimension: 36*36*4.85mm
Mounting Hole: 30.5mmx30.5mm
|
| RunCam Split 2S HD Camera |
Brand Name: RunCam
Model: Split 2S
Field of View(FOV): FPV FOV 4:3@140°, 16:9@170°/HD Recording 170°
Lens Thread Size: M12*0.5
Video Resolution: 1080@60fps/1080@50fps /1080@30fps/720@60fps
Video File Format: MOV
Image Resolution: 2 Megapixels
TV Mode: NTSC (720*480)/PAL (720*576) Switchable
Interface: Micro USB / UART
Max Micro SD Card: Supported 64G(need Class 6 or above,
recommend Class 10/UHS-I/UHS-II/UHS-III) WiFi Module: Support (Removable)
Dimensions PCB: 38*38mm/Lens Module 19*19mm
Power Input DC: 5-15V / DC 5V(USB)
Working Current: 650mA @5V / 270mA @12V
Net Weight: 19g
– 1080P@60fps HD recording & WDR 16:9 / 4:3 FPV camera
– 38x38mm@30.5×30.5 M4 holes, Standard size for a better experience
– Removable WiFi module for APP |
| Mini M8N GPS Module |
Mini M8N GPS Module UBX-M8030 For Mini PIX / F4 / F7 Flight Controller
Description:
Brand name: SKYSTARS
Item name: ST100 Mini M8N GPS
Size: 31*30*12mm
Weight: 22g
Positional accuracy: 50 centimeter precision when working with concurrent GNSS
Velo-city pre-cision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 10Hz
|
| 5.8G 2.5dBi Antenna |
RHCP 5.8G 2.5dBi Super Mini Antenna For FPV Racing Drone
Size: 120mm x 17mm
Weight: 10g Gain: 2.5dbi
Axial ratio: <1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
VSWR: <=1.2
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
|
| Receiver ( Optional) | PNP Version: Without Receiver Frsky R9 MM Receiver Version: with Frsky R9 MM RX Frsky XM+ Receiver Version: with Frsky XM+ RX |

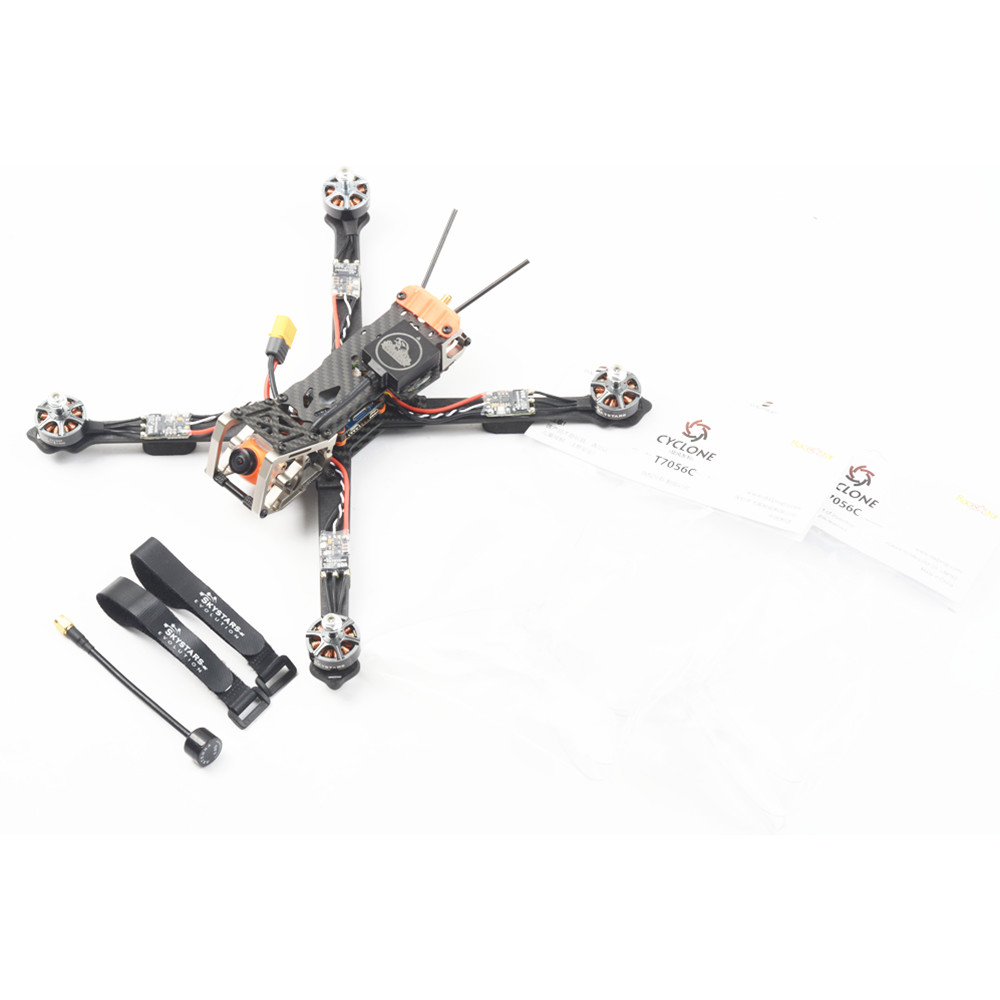

Package Included:
1x Skystars G730L HD FPV Racing Drone
2x Battery Strap
1x Anti-slipping Pad
