Description

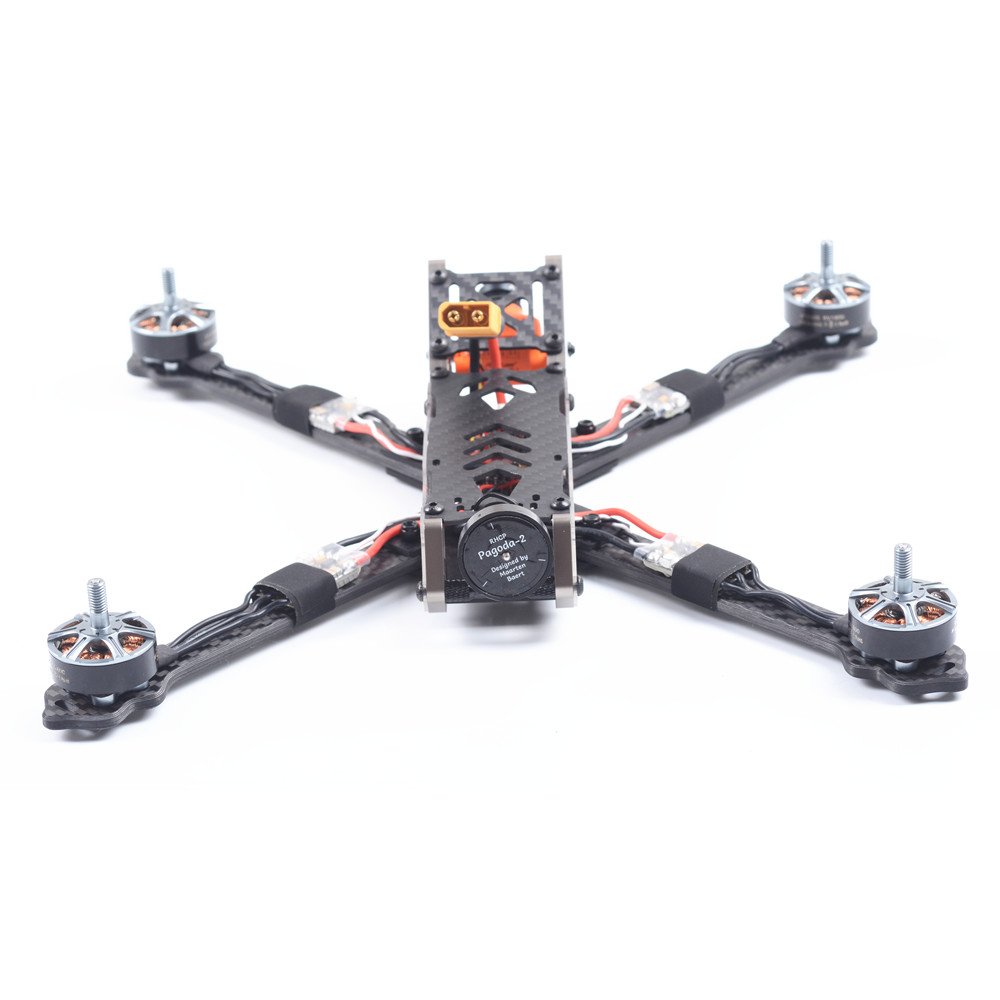

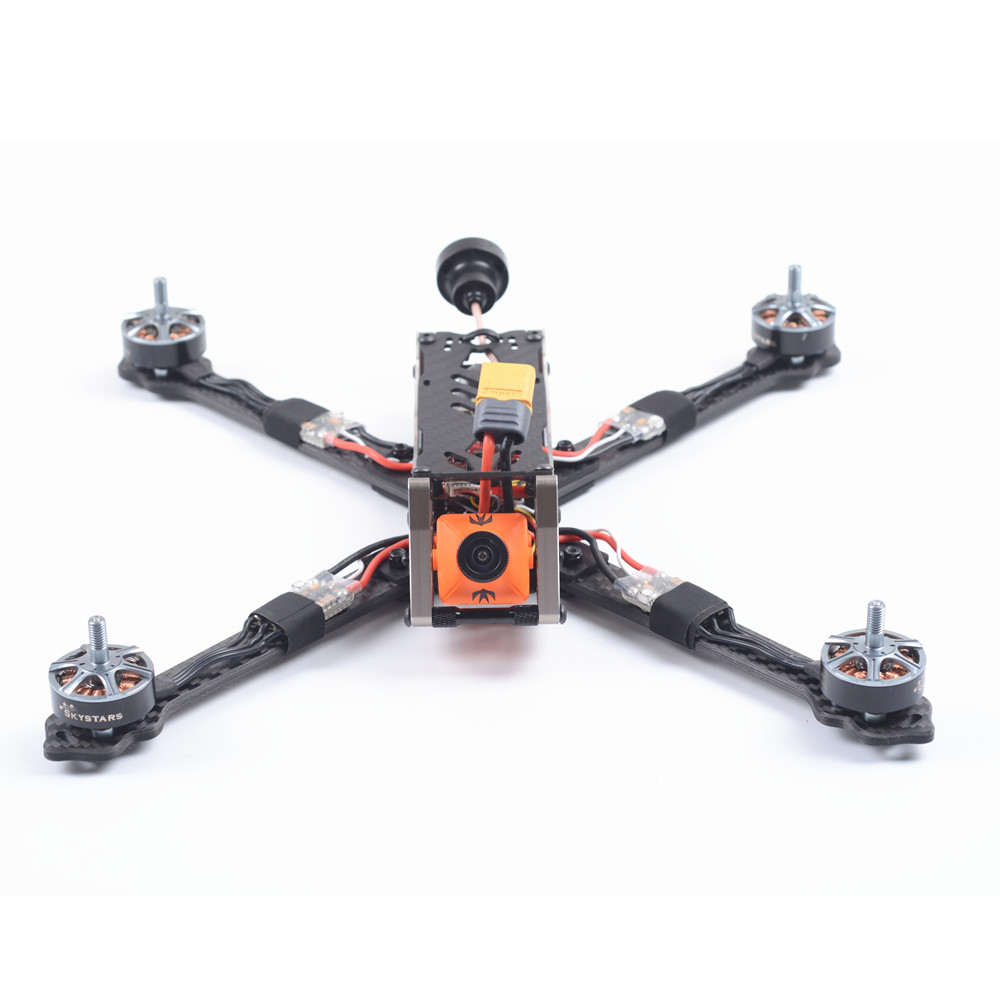

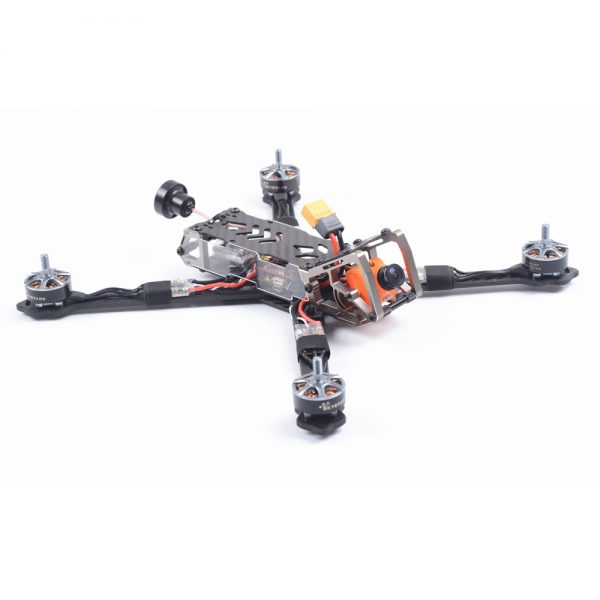

Skystars G730L 300mm F4 OSD 50A BL_32 7 Inch FPV Racing Drone w/ Runcam Swift 2 WDR Camera PNP
Specification:
Brand Name: Skystars
Model: G730L
Item Name: 300mm F4 OSD 7 Inch FPV Racer
Version: PNP ( without receiver, battery and radio transmitter)
Wheelbase: 300mm
Arm Plate Thickness: 4mm
TOP&Bottom Plate Thickness: 2mm
Side Plate Thickness: 2mm
Material: 3k Carbon Fiber and Aluminium alloy

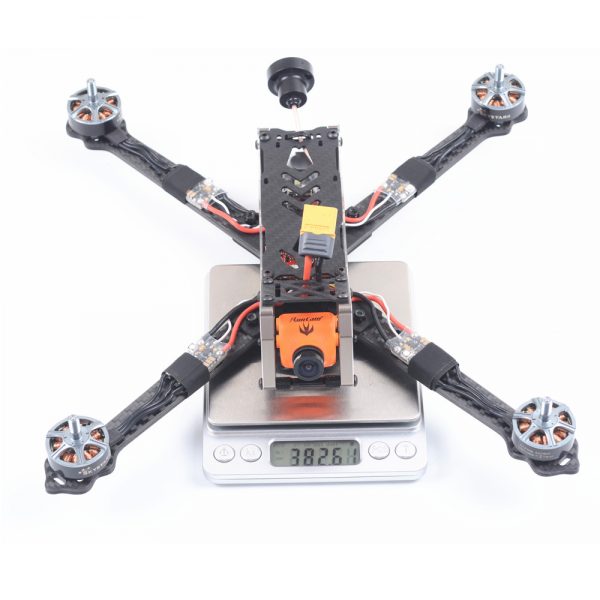

Net Weight: 390g
| F4 Flight Controller ( Diagram Picture) |
Item Name: Micro F4 FC AIO OSD BEC (D-Shot Version) MPU: 6000 CPU: STM32F405RGT6 Input Voltage: 2-6S Lipo Built-in Betaflight OSD to adjust PID BEC Output: 5V@3A Size: 30.5×30.5mm board, 3mm mounting holes (M3) Weight:7g Support Subs/PPM/DSMX receiver |
| 50A BL_32 ESC | Item Name: 50A 2-6S Blheli_32 RGB light ESC Input Voltage: 2-6S Lipo battery MOS Tube: TOP QUALITY MOSFET Constant Current: 50A Peak Current: 60A BEC Ouput: NO CPU: STM32F051 BLHELI_32 firmware Size: 26x15x6mm Weight: 7.4g Features: |
| 2306 1800KV Brushless Motor | Brand Name: Skystars Item Name: 2306 1800KV Brushless Motor |
| 7 Inch Propeller | Item Name: DP7056C 7 inch 3-Blade Propeller Color: Transparent White |
| FPV Transmitter | Output power: 25mW/200mW/500mW/800mW switchable button OR Channel changes and Pit mode setting through PWM With a microphone, you can switch the audio flexibly BAT: 7-26V,BEC 5V-1A 310mA—-800mW Video system: NTSC/PAL Antenna: MMCX Frequency: 5.8GHz 5 bands 40 Channels Dimension: 36x36x4.85mm Mounting Hole: 30.5mmx30.5mm Weight: 4.2 g |
| RunCam Swift 2 FPV Camera | Brand Name: Runcam Model: Swift 2 Image Sensor 1/3" SONY Super HAD II CCD Horizontal Resolution 600TVL,4:3 Signal System PAL Integrated OSD YES Integrated MIC YES S/N Ration >60dB(AGC OFF) Electronic Shutter Speed PAL:1/50~100,000; NTSC:1/60~100,000 AutoGain Control(AGC) YES Back light compensation(BLC) YES Min.illumination 0.01Lux/1.2F WDR D-WDR DNR 2DNR Day/Night Color / Auto / B&W Power: DC 5 to 36V Net Weight: 14g Dimension: 28.5x26x26mm |
| Pagoda2 FPV Antenna | Size: 25mm x 25mm Gain: 1.6dbic Axial ratio: 1.0 (near perfect) Bandwidth: 5.5GHz-6.0GHz Radiation Efficiency: 95% VSWR: <=1.22 Connector: MMCX Works great as both a transmitting or receiving antenna Compatible with other styles of 5.8GHz RHCP antennas |
Package Included:
1x Skystars G730L FPV Racer
3x Battery Strap
1x Anti-slipping Pad for Battery
