Description
Specification:
Brand name: SKYSTARS

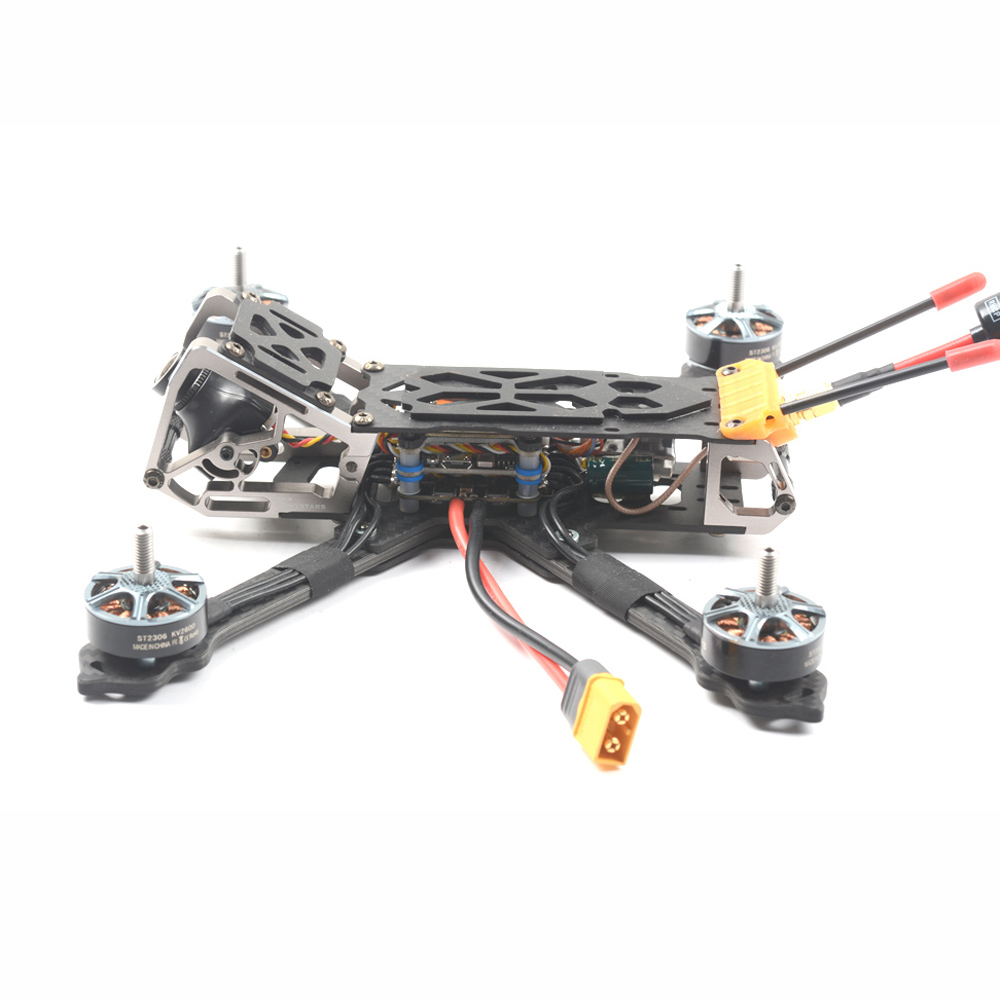

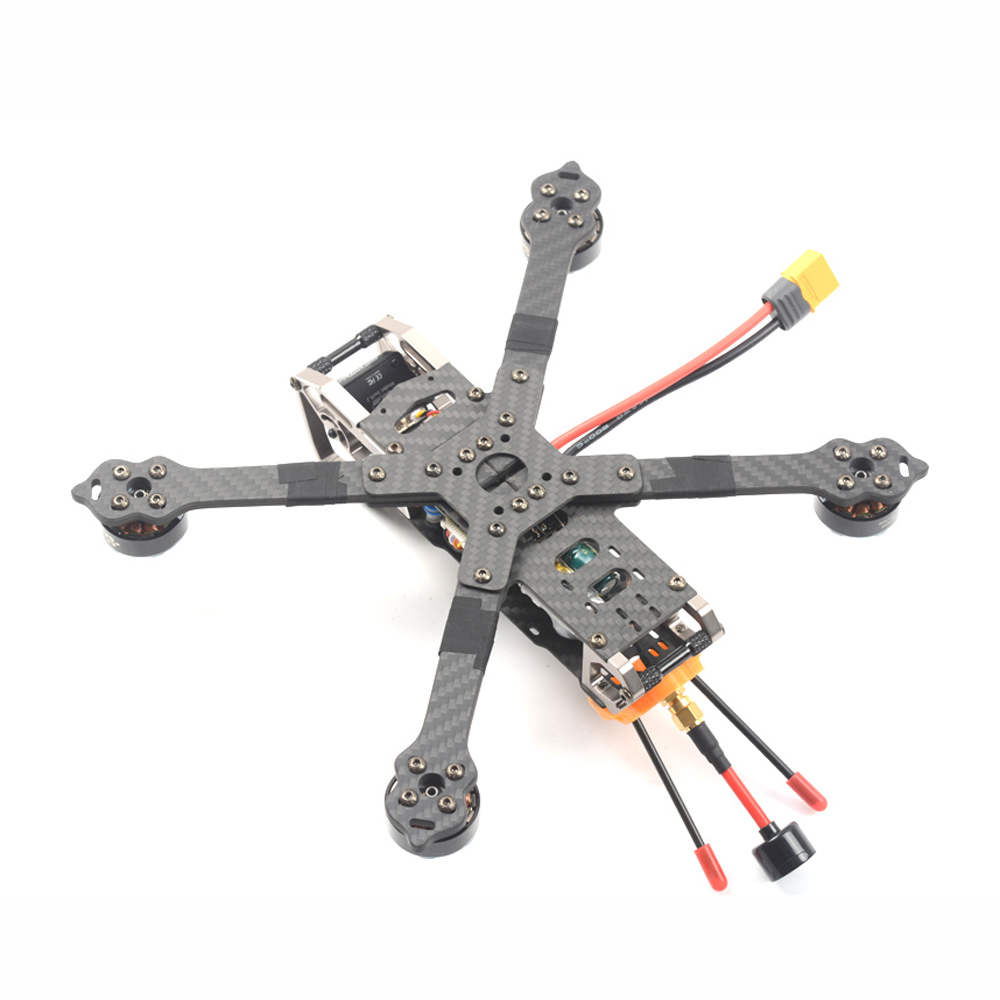

Item name: G520S FPV Racing Drone PNP
Weight: 366.33 (without propeller)
| Frame Kit | Frame Kit Name: Skystars G520S Wheelbase: 228mm Props Size: 5inch Arm Plate Thickness: 4mm TOP& Bottom Plate Thickness: 1.5mm &2mm Material: 3k Carbon Fiber and Aluminium alloy Screw: TAIWAN YFS BRAND SCREW 12.9 level screw Weight: 128g |
| Flight Controller | Skystarts TurboS F405 FC Item name: F405 Betaflight Flight Controller Input power: 7.4-25V (2-6S) BEC: 9V/2A MCU: STM32F405 Gy ro: MPU6000 Flash: 16MB OSD: AT7456 Mounting hole: 30.5*30.5mm Weight: 6.8g FC Features |
| Brushless ESC | TurboS F405 Blheli_32 4IN1 ESC Item name: Turbo S40HV ESC Input voltage: 2-6S (7.4V~25V) Continue current: 40A×4 Burst current: 40/50A (6S) BEC: NO Mounting: 30.5×30.5mm / φM3 Size:38X41X6.9MM Weight: 15g ESC Features: |

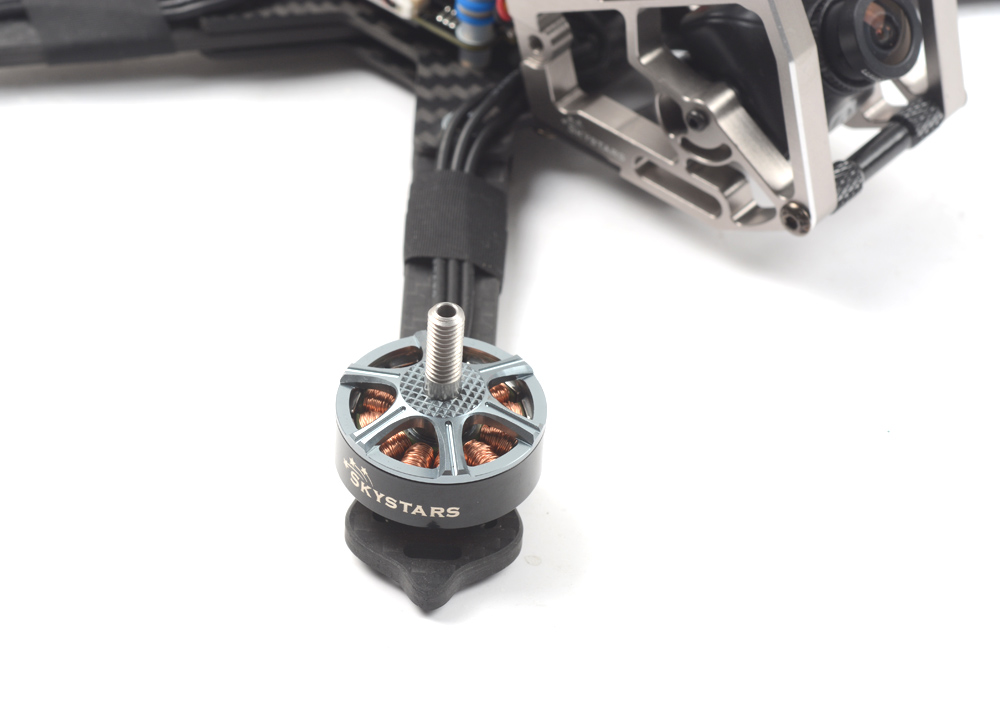

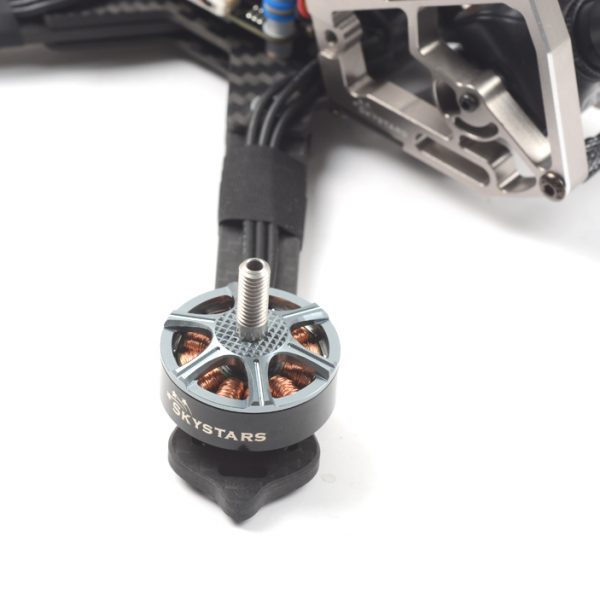

| Brushless Motor | skystars 2306 V2 KV1750, race edition,hollow shaft Made of NMB bearings and curved magnets for longevity and efficiency |
| VTX |
FPV Transmitter
Output power: 25mW/200mW/600mW switchable
Control mode:button OR Channel changes and Pitmode setting through PWM TBS SmartAudio inside
BAT: 7-26V,BEC 5V-1A
270mA—-600mW
Video system: NTSC/PAL
Antenna: MMCX
Frequency: 5.8GHz 5 bands 40channels
Weight: 4.2 g
Dimension: 36*36*4.85mm
Mounting Hole: 30.5mmx30.5mm
|
| Camera |
Model RunCam Swift 2
Image Sensor 1/3" SO NY Super HAD II CCD
Horizontal Resolution 600TVL,4:3
Lens 2.1mm 165°
Signal System PAL
Integrated OSD YES
Integrated MIC YES
S/N Ration >60dB(AGC OFF)
Electronic Shutter Speed PAL:1/50~100,000; NTSC:1/60~100,000
AutoGain Control(AGC) YES
Back light compensation(BLC) YES
Min.illumination 0.01Lux/1.2F
WDR D-WDR
DNR 2DNR
Day/Night Color / Auto / B&W
Power DC 5 to 36V
Net weight 14g
Dimensions 28.5mm * 26mm * 26mm
Color: Green or orange will be sent in random. |
| Propeller | DALPROP 5042 3-blade |
| GPS |
Mini M8N GPS Module UBX-M8030 For Mini PIX / F4 / F7 Flight Controller
Description:
Brand name: SKYSTARS
Item name: ST100 Mini M8N GPS
Size: 31*30*12mm
Weight: 22g
Positional accuracy: 50 centimeter prec sion when working with concurrent GNSS
Velocity prec ision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 10Hz
|
| Antenna |
RHCP 5.8G 2.5dBi Super Mini Antenna For FPV Racing Drone Weight: 7.4g
Size: 60mm x 17mm
Gain: 2.5dbi
Axial ratio: <1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
VSWR: <=1.2
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
|
Package Included:
1 x Skystars G520S-AIO-2019 Frame Kit
1 x F4 8K OSD Flight Controller
4 x 40A 2-6S Blheli-32 RGB light ESC
1 x 5.8G 40CH 25mW/200mW/600mW switchable VTX
4 x skystars 2306 V2 1750KV Brushless Motor
1 x RunCam Swift 2 Camera
8 x DALPROP 5042 3-blade propeller (2 Pairs CW, 2 Pairs CCW)
1 x Buzzer with battery
3 x Battery Strap
2 x Battery Anti-slip plate
1 x Antenna
1 x XM+ Receiver (Optional, Only XM+ Receiver and PNP+GPS+XM+ Version are included)
1 x GPS (Optional, Only GPS Version with this module)
