Description

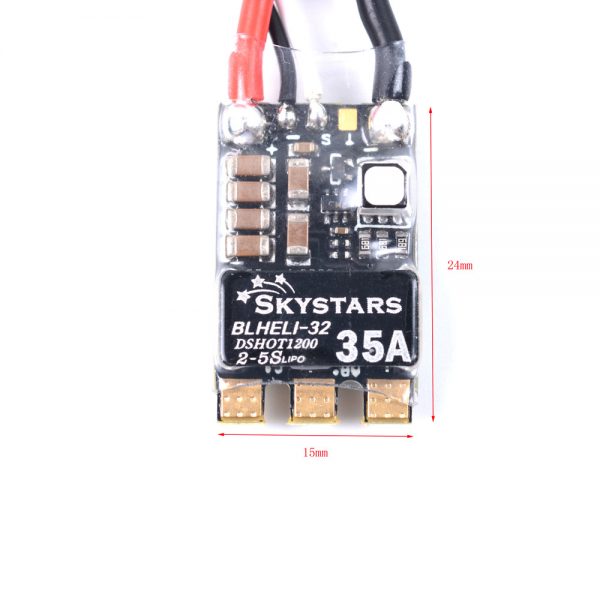

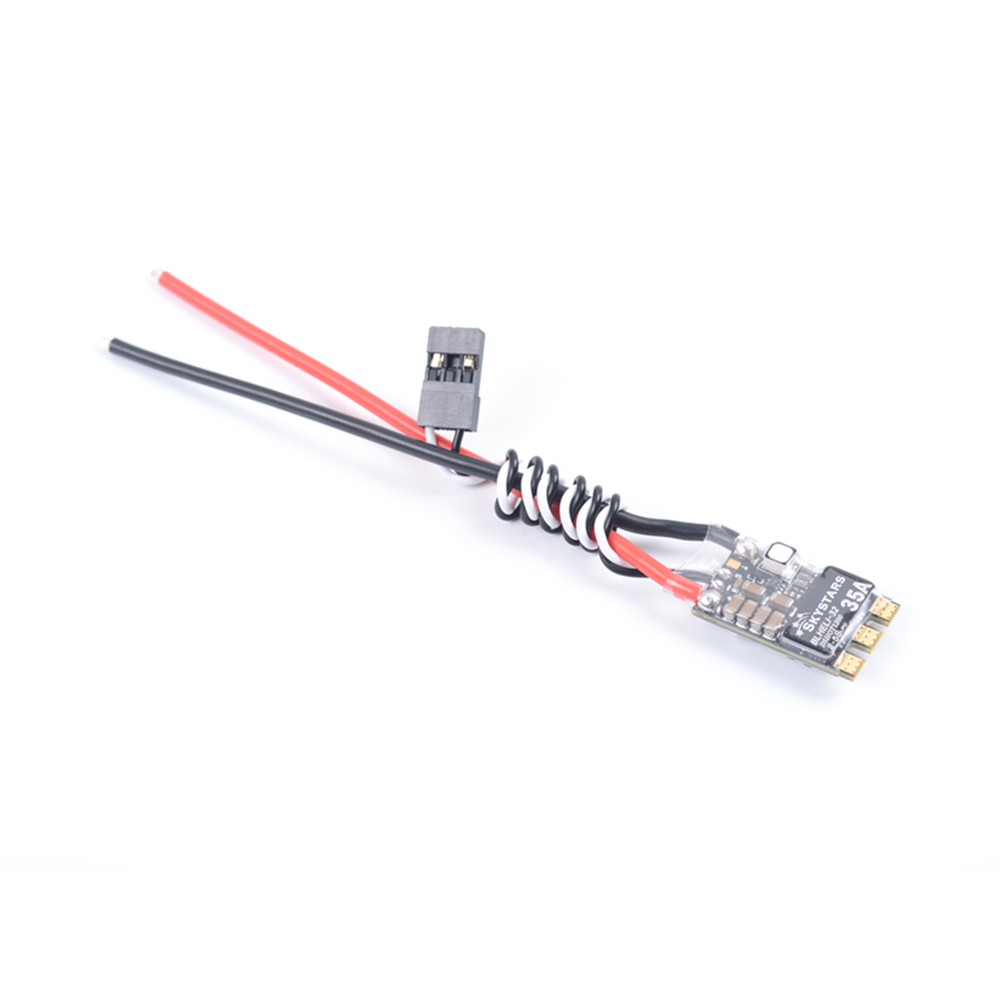

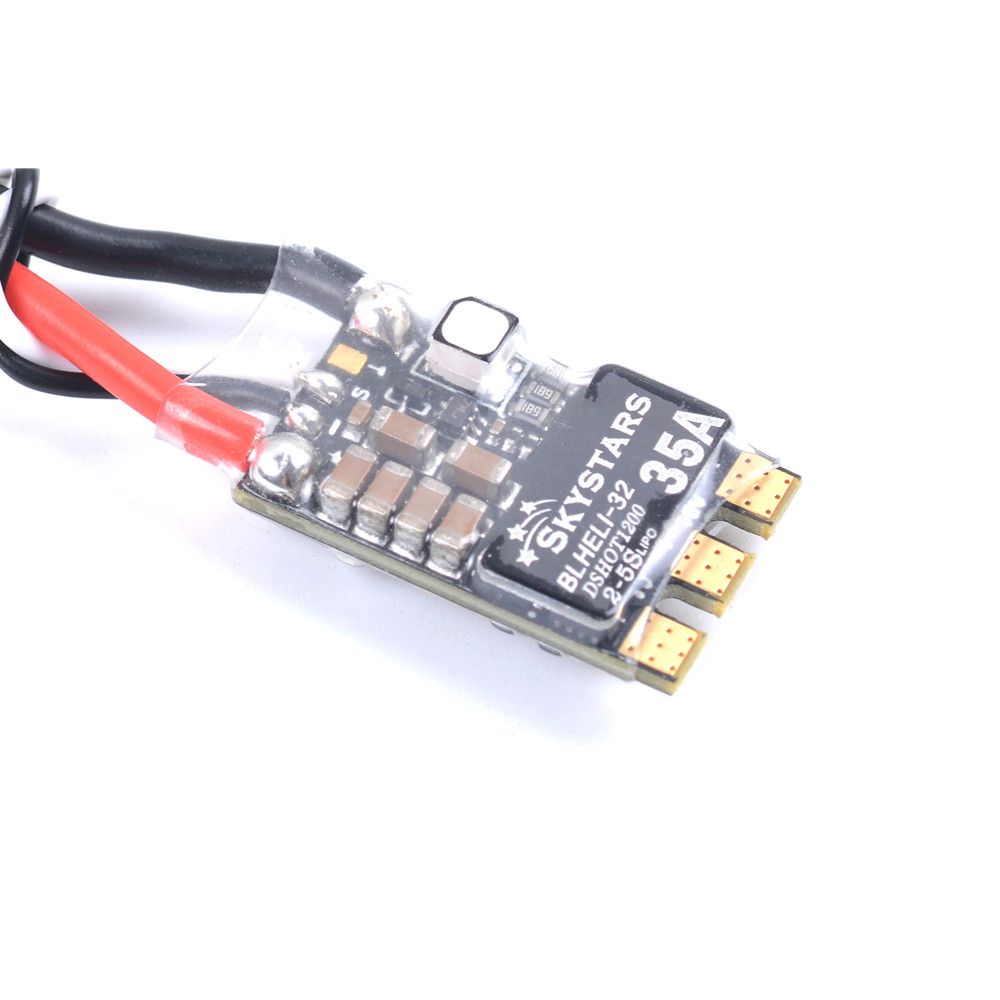

SKYSTARS 35A Blheli_32 bit 2-5S Dshot1200 Built-in LED Brushless ESC for RC Drone FPV Racing
Specification:
Brand name: SKYSTARS
Item name: 35A Blheli_32 bit ESC
MCU: STM32F051
Firmware: BLHeli_32
Input voltage: 2-5S
Continuous current: 35A
Burst current: 45A >=10S
Product weight: 5.7g
Size: 23x14x5 mm
BEC: NO
Built-in switchable RGB LED
Functions: DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42
Mosfet: TOSHIBA N channel, independent half-bridge driver chip
PCB: 3OZ copper thickness, gold plated
Features:
– Support Dshot 1200 in default out from factory
– Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and Dshot600
– Ultra light and ultra small ESC
– The color of RGB LED can be set by Blhelisuite.
– Powered by high performance STM32 MCU frequency up t0 48 MHZ
– Composed of 3Oz gold plated PCB
– Flashed with the latest BLheli32 firmware
– Supports higher KV motor and more power load, more suitable for violent flight of racing drone.
– Aluminum heat sink effectively slow down the temperature rise.
– The color of RGB LED can be set by Blhelisuite.
– Powered by high performance STM32 MCU frequency up t0 48 MHZ
– Composed of 3Oz gold plated PCB
– Flashed with the latest BLheli32 firmware
– Supports higher KV motor and more power load, more suitable for violent flight of racing drone.
– Aluminum heat sink effectively slow down the temperature rise.
Package included:
1x SKYSTARS 35A Blheli_32 bit ESC
