Description

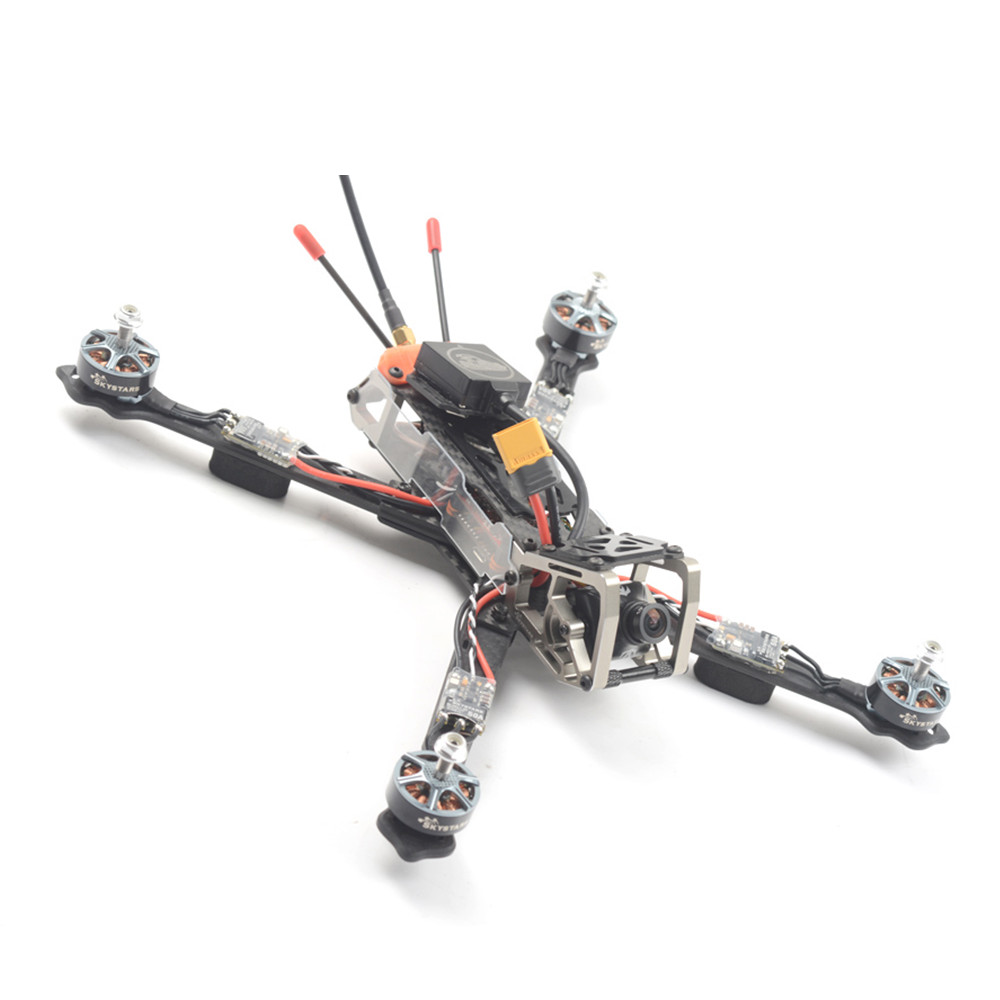

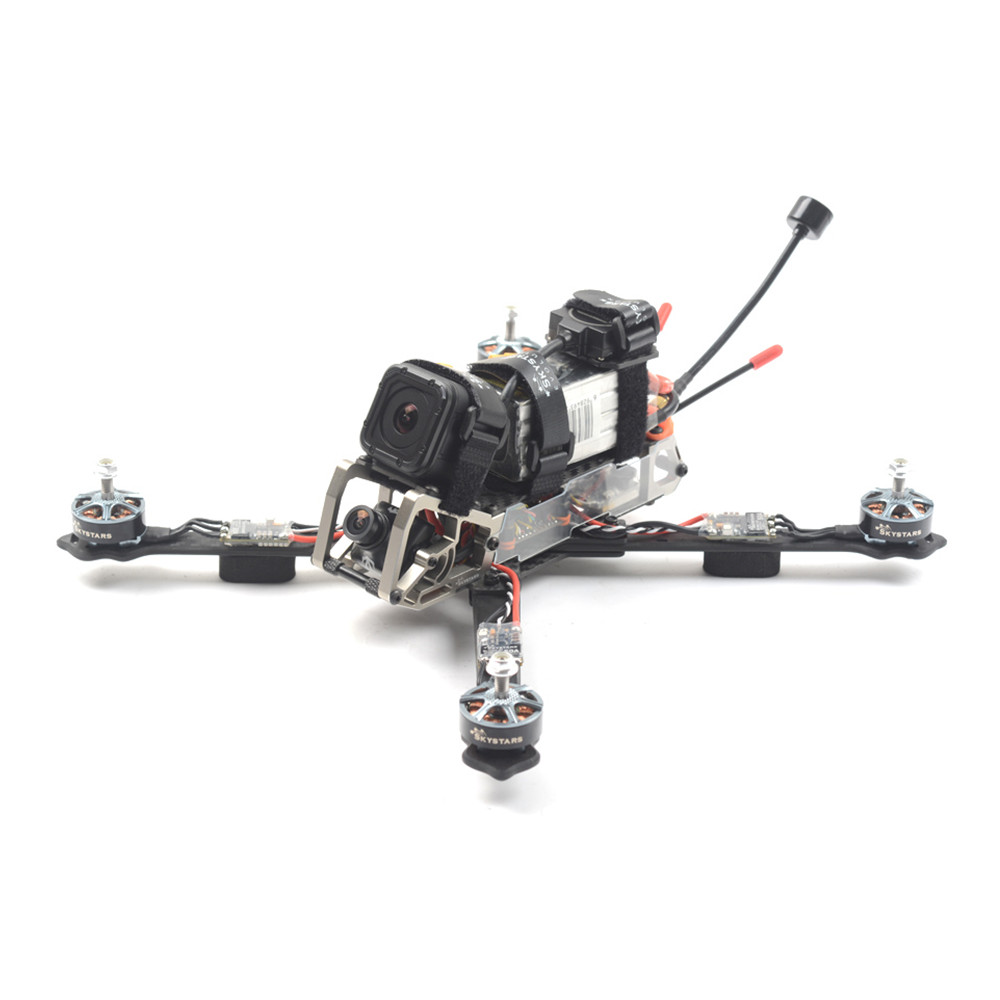

Skystars 2019 G730L GPS INAV 300mm F4 8K OSD FPV Racing Drone PNP BNF w/ RunCam Swift 2 Camera
Specification:
Brand Name: Skystars
Model: G730L GPS INAV
Item Name: 300mm F4 OSD FPV Racing Drone
Version : PNP( Without Receiver)/ With Frsky XM+ receiver
/ Frsky R9 MM receiver (Optional)
Drone Wheelbase: 300mm
Arm Plate Thickness: 4mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Side Plate Thickness: 2mm
Material: 3K Carbon Fiber & Aluminium alloy
Weight: 221g
| F4 Flight Controller AIO OSD BEC | MCU: 168MHz STM32F405 IMU: MPU6000 accelerometer/ gyroscope (SPI) Barometer: BMP280 (I2C) OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A Blackbox: MicroSD card slot (SD/SDHC) VCP, UART1, UART2, UART3, UART4, UART5 Built in inverter for SBUS input (UART2-RX) PPM/UART Shared: UART2-RX SoftSerial on TX2, S5 or S6 optional Camera control on S6 or DAC optional Smartaudio & Tramp VTX protocol supported WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes PDB Specifications:
Input: 6~30V (3~6S LiPo) w/TVS protection
PDB: 4x50A , 4 layers*2oz copper PCB
BEC: 5V 3A cont.
LDO 3.3V: for Spektrum RX
Current Sensor 184A (Scale 179)
Battery Voltage Sensor: 1:10 (Scale 110) |
| 50A BLheli_32 ESC w/ RGB Light |
Input Voltage: 2-6S Lipo battery
Constant Current: 50A
Burst Current: 60A
BEC Output: no
CPU: STM32F051 BLHeli _32 firmware
Size: 26 x 15 x 6MM
Weight: 7.4g
MOS Tube: TOP QUALITY MOSFET
– Support Dshot 1200 in default out from factory
– Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and Dshot600
– Ultra light and ultra small ESC
– The color of RGB LED can be set by Blhelisuite.
– Powered by high performance STM32 MCU frequency up t0 48 MHZ
– Composed of 3Oz gold plated PCB
– Flashed with the latest BLheli_32 firmware
– Supports higher KV motor and more power load, more suitable for violent flight of racing drone
– Aluminum heat sink effectively slow down the temperature rise
|
| Skystars 2306 KV1750 V2 Motor | Brand Name: Skystars Model: 2306 v2 KV:1750KV
– More strong and light |
| DALPROP DP7056C Propeller | Model: DP7056C Quantity: 4 CW & 4 CCW Color: Transparent White |
| 40CH 25/200/500/800mW VTX |
Output power: 25mW/200mW/500mW/800mW switchable
Control mode:button OR Channel changes and Pitmode setting through PWM
With a microphone, you can switch the audio flexibly BAT: 7-26V,BEC 5V-1A
310mA—-800mW
Video system: NTSC/PAL
Antenna: MMCX
Frequency: 5.8GHz 5 bands 40channels
Weight: 4.2 g
Dimension: 36*36*4.85mm
Mounting Hole: 30.5mmx30.5mm
|
| RunCam Swift 2 600TVL Camera |
Item Name: RunCam Swift 2
Image Sensor: 1/3" Super HAD II CCD
Horizontal Resolution 600TVL,4:3
Lens: 2.1mm 160-degree
Signal system: PAL
Integrated OSD: yes
Integrated MIC: yes
S/N Ratio: more than 60dB ( AGC OFF )
Electronic Shutter Speed PAL: 1/50 – 100,000; NTSC:1/60 – 100,000
AutoGain Control ( AGC ): yes
Back light compensation ( BLC ): yes
Min.illumination 0.01Lux/1.2F
WDR D-WDR
DNR 2DNR
Day/Night Color / Auto / B and W
Power DC 5 to 36V
Net weight 14g
Dimensions 28.5mm x 26mm x 26mm
Color: Sending Randomly |
| Mini M8N GPS Module |
Mini M8N GPS Module UBX-M8030 For Mini PIX / F4 / F7 Flight Controller
Description:
Brand name: SKYSTARS
Item name: ST100 Mini M8N GPS
Size: 31*30*12mm
Weight: 22g
Positional accuracy: 50 centimeter pre-cision when working with concurrent GNSS
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 10Hz
|
| 5.8G 2.5dBi RHCP Antenna |
RHCP 5.8G 2.5dBi Super Mini Antenna For FPV Racing Drone
Weight: 7.4g Size: 60mm x 17mm
Gain: 2.5dbi
Axial ratio: <1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
VSWR: <=1.2
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antenna
– Upgrade with longer antenna |
| Buzzer | – Support Strobe flashing – Built-in Lipo Battery |
| Receiver ( Optional) | PNP Version: Without Receiver Frsky R9 MM Receiver Version: with Frsky R9 MM RX Frsky XM+ Receiver Version: with Frsky XM+ RX |
Package Included:
1x Skystars G730L GPS INAV F4 FPV Racing Drone
3x Battery Strap
2x Anti-slipping Pad
