Description

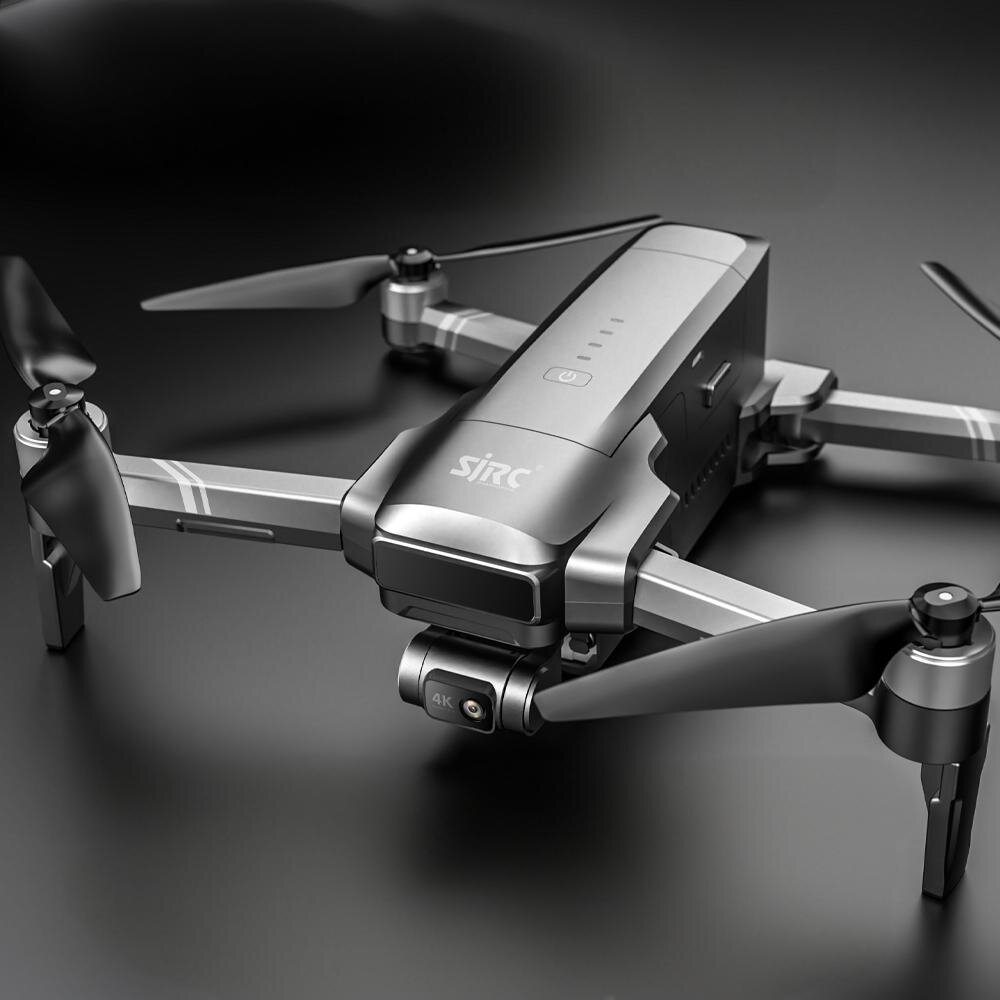

SJRC F22 S3 PRO GPS 6KM 5G Repeater Digital FPV with 4K HD EIS Camera 3-Axis Gimbal Lower Vision Module Optical Flow w/ Searchlight Brushless Foldable RC Drone Quadcopter RTF
Specifications:
Brand Name: SJRC
Item No.: F22 S3 PRO
Color: Silvery Grey
Motor: 1806 Brushless
Operating Frequency: 5G Bridge
Drone Battery: 11.1V 3500mAh 38.85Wh Lipo (Included)
Flight Time: About 40 min
Charging Time: About 120 minutes
USB Charging: 5V/3A Type-C 30W
Remote Control Mode: Mode 2 (Left Hand Throttle)
Remote Control Battery: Built-in 1500mAh Battery
Control Distance: About 6000m (No Interference, No Obstruction)
Transmitter Charging Time: About 110 minutes
Transmitter Operating Time: About 2.5 hours
Operating Voltage: 7.4V
FPV: 5G USB Digital Image Transmission
Operating Frequency: 5.18~5.32 GHz, 5.745~5.825 GHz
Support Protocol: 802.11a
FPV Range: About 6000m (No Interference, No Obstruction)
Video Transmission Frame Rate: 30fps / 60fps
Camera Pixel: 4K HD
Camera Lens: FOV 100°
Sensor: 1/2 inch
Viewing Angle: 56° (Horizontal), 33° (Vertical)
Equivalent Focal Length: 25cm
Focus Range: Fixed Focus
Photo Resolution: 3840 x 2160P (APP), 8000 x 6000P (SD Card)
Video Resolution: 1280 x 720P (APP), 3840 x 2160P (SD Card)
Photo Format: JPG
Video Format: MP4
SD Card: 32G-128G Class 10/U1 or above (Not Included)
Select FAT32 format for formatting and 64KB for allocation unit size (select the largest option)
Gimbal: 3 -Axis Brushless Mechanical
Pitch: -100° – +70°
Roll(X): -35° – +35°,
Heading: -15°- +15°
Adjustable Angle: -80°- +0°
Gesture Shooting: 1-3 M
Image Follow Me: 3-10M
GPS Follow Me: 10-100M
Optical Flow Mode: YesPosition: GPS / GLONASS
Mobile Device System Version: iOS 9.0 or later / Android 5.0 or later
Operating temperature: 0 ~ 40℃
Take-off Weight: 615 g (Battery 245g)
Features:
1. GPS returns to the take-off point with one click, low battery return, and no signal return.
2. ①GPS smart follow: follow the phone to fly;
②Image follow: identify the subject and follow the subject for 360-degree circumnavigation.
3. Gesture shooting recognition: within 1-3m from the aircraft, face the camera to make a photo/video gesture.
4. Route multi-point planning flight: the aircraft flies autonomously according to the pre-set route, and the player focuses on shooting.
5. Fixed-point surround: find the center point of the surround, and then move the desired surround radiuss through the joystick.
6. Intelligent functions: one-click long-distance flight, one-click skyward, one-click spiral, vertical screen aerial photography, time-lapse photography, panoramic photography.
7. Downward ranging module: stable hovering at low altitude without GPS or weak signal; turn on the night vision auxiliary light to ensure your hovering performance in low-light environment.
8. USB digital image transmission: easy to use, long distance, stable transmission, strong anti-interference.
9. Aircraft recovery function:
Open the APP—Settings—Trajectory—Find aircraft, enter the map interface, and the map shows the aircraft’s last distance, latitude and longitude.
10. Picture and video sharing: You can select single or multiple photos to share, and videos can only be shared one at a time.
11. The lens angle is 65°, and the camera can be adjusted to 80°.
12. 11.1V plug-in smart lithium battery, ultra-long battery life.
Function:
EIS electronic anti-shake/Brushless 3-axis gimbal/GPS positioning/Gesture photos/One click to return/Pointing flight/Orbiting flight/Automatic follow/Lost and returned/Low power return/Soar to the sky with one button/Mechanical head/Vertical screen shooting/One key screw/Time delay photography/Panoramic shooting/4K Camera/Electrically adjustable camera/Digital mapping approximately 6KM/Portable folding/Intelligent modular battery/Brushless motor/Farther away flight/Speed control
Package Included:
1 x F22 S3 PRO Drone
1 x Remote Controller
1 x Battery
1 x USB Charging Cable
4 x Spare Propellers
3 x RC Connected Cable
1 x Gimbal Cover
1 x Props Fixing Holder
1 x User Manual
1 x Storage Bag
