Description
Notice: Only the high precision HD Port cable can work for it, please order the HD Port cable separately :
1.5M Micro HD Port Male D Type to HD Port Female A Type
Mini HD Port Male C Type to HD Port Female A Type Adapter
Customer Review: The battery is not included.
Description:
Item NO.: SJ-V01
Display : 7" 1280x800px
Field of View: 72 degree
Bands: Include A B E F R five bands, 40CH
Wide power Supply: 7-28V
Current: 500mA
Headphone Port: 3.5mm3P, Stereo16 Ω/150mW
Current: 500mA
Headphone Port: 3.5mm3P, Stereo16 Ω/150mW
HD Port port: Micro HD Port D TYPE
HD Port Input Format: 1920 x 1080p60,1920 x 1080p50,1920 x 1080i60,1920 x 1080i50,1280 x 720p60,1280 x 720p50,720 x 480p60,720 x 480p50,720 x 576i60,720 x 576i50
HD Port Input Format: 1920 x 1080p60,1920 x 1080p50,1920 x 1080i60,1920 x 1080i50,1280 x 720p60,1280 x 720p50,720 x 480p60,720 x 480p50,720 x 576i60,720 x 576i50
Connector: RP-SMA antenna connector
Frequency:
Band A: 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
Band A: 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
Band B: 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M
Band E: 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M
Band F: 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
Band R: 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M
Features:
A mind blowing 72 degree field of view
7" 1280x800px Immersive Display
HyperSensitive 5.8GHz 40CH Receiver Included
Automatic channel search, can maximum search 10 channels
Adjustable straps, light weight,very high comfort.
Built-in speaker with volume control on buttons
OSD display to show the current informations.
HDMI input , connect the Headplay HD goggles directly to your
DJI Inspire/Lightbridge or other HD downlink.
Support AV IN and AV OUT

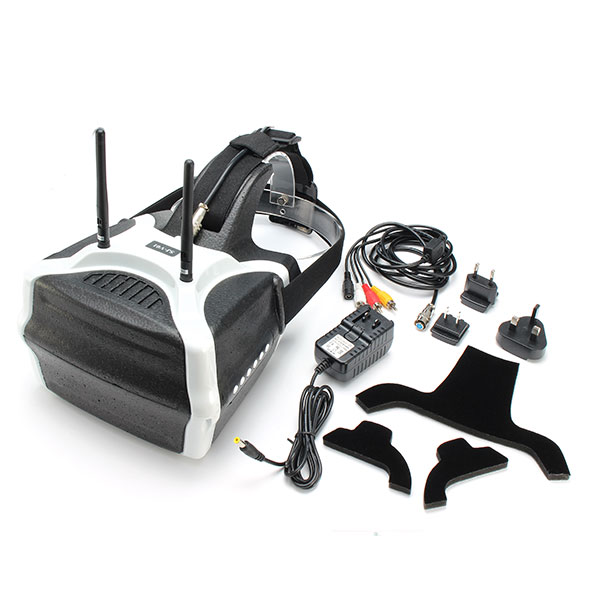

Package included:
1 x Goggles
