Description
Frequencies and Bands:
This product is equipped with dual displays with a resolution of 960 x 240.
Adjustable sight distance is ensured. It is compatible with 5.8GHz band that is popular on the market.
The diversity receiver module enables stable image quality.
The real-time video recording using a trans-flash (TF) card allows you to share your happiness with your friends.
With an attractive appearance, the product is compact and light in weight, which is designed based on the facial structure to ensure comfortable wearing experience.
New version upgrades with USB,you can charge it with power bank directly now (from 11.07)
Specification:
Input power: DC 6-28V, DC12V/380 mA, maximum charge current: 300 mA
Display resolution (dual display): 960 x 240
AV output terminal: ะค3.5mm, video output impedance: 75 ?, audio output impedance: 10 k?
DC socket for input power: diameter: 6mm, inner pin diameter: 2.1mm
Class of the TF card: class 10, maximum size of the TF card: 32 Gb
Micro USB interfaces allow convenient file saving
Optional battery: 3.7V/1500 mAh, 80mm x 19mm x 7mm (L x W x H)
Adjustable sight distance: min. value: 58mm, max. value: 63mm
Product size: 175mm x 102mm x 68mm (L x W x H)
FOV: 40 Degree
FOV: 40 Degree
Total weight: 278g
Features:
Dual display with a resolution of 960×240
Adjustable interpupillary distance(58-63mm)
Double receiver modules ensure stable image quality
Compatible with universal 5.8GHz band emitter
Supports real-time video recording using 32G TF card
Attractive appearance,comfortable wearing experience
Package included:

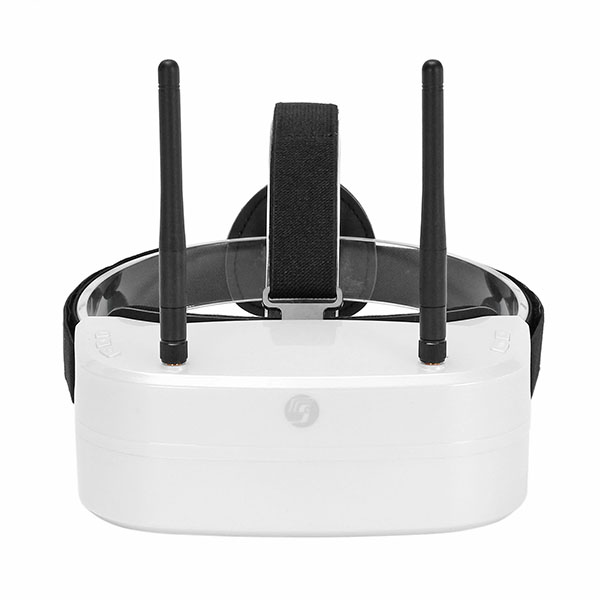

1 x SJ-RG01 Goggles
2 x Antenna
1 x Power cable
1 x AV cord
1 x Battery (1,500mAh)
,
,
,
,
,
