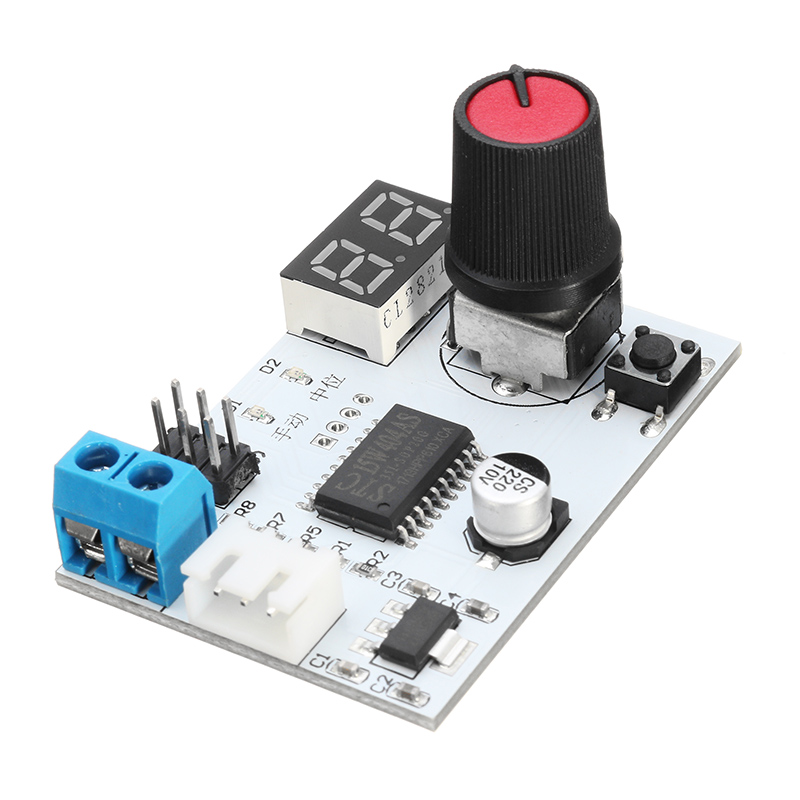

Description
Specifications:
1.Width*Length: 35*50mm
2.Weight: 13.8g
Wiring method:

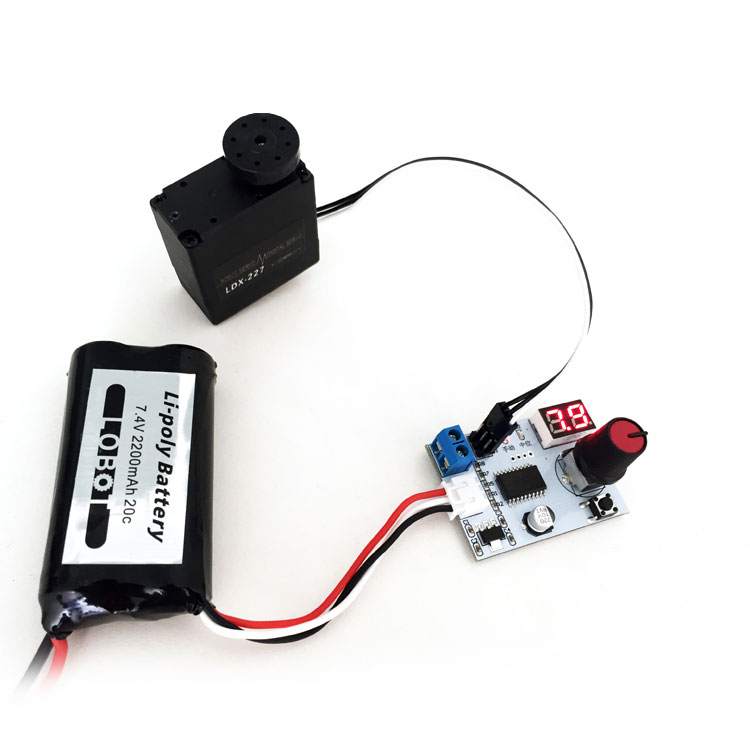

1.7.4V lithium battery charging terminal can be directly inserted in the white terminal;
2.Connect the power supply to the blue terminal , the positive voltage can be 5~8.4V .
Usage method:

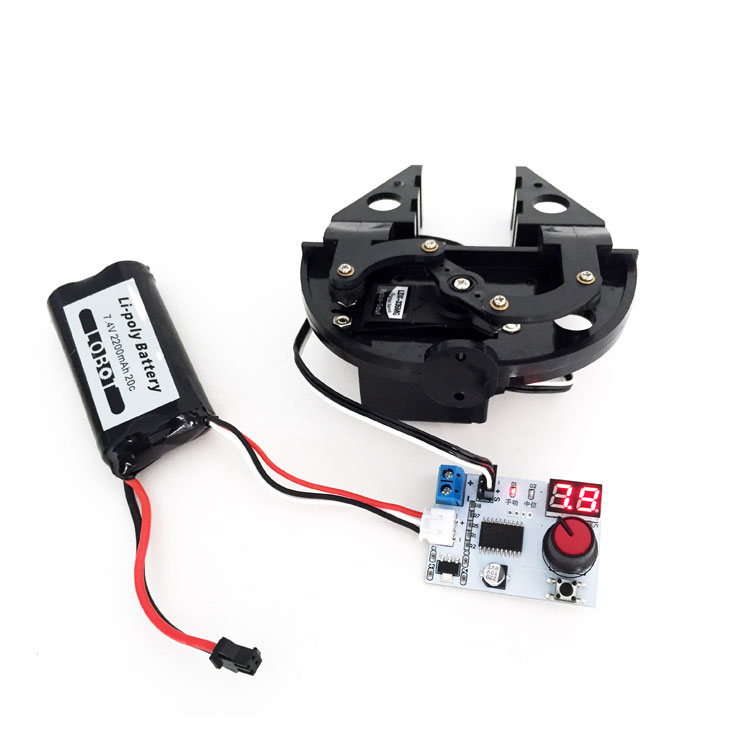

1.Connect the power supply to the board;

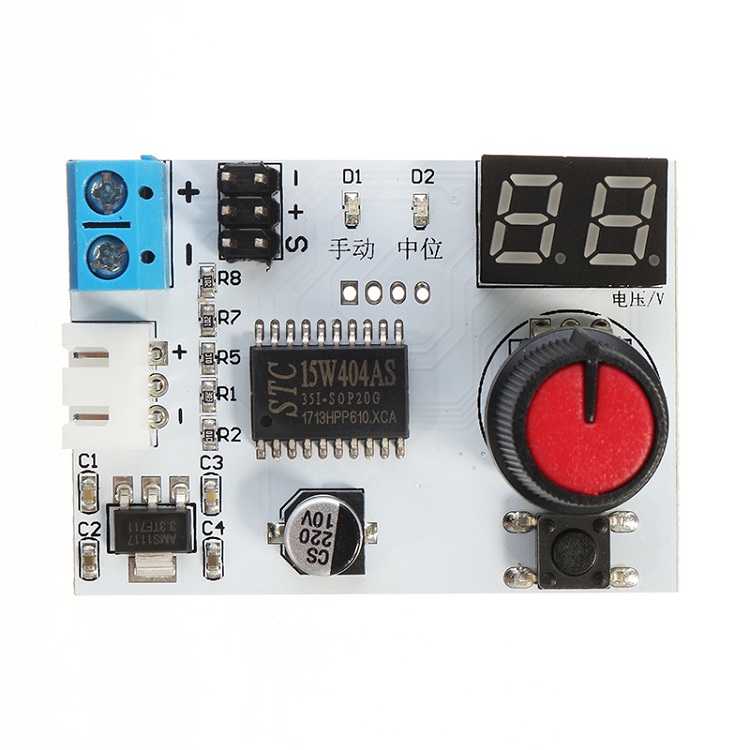

2.Connect the servo to the servo interface. "+"is positive, "-" is negative, "S" is the signal terminal;

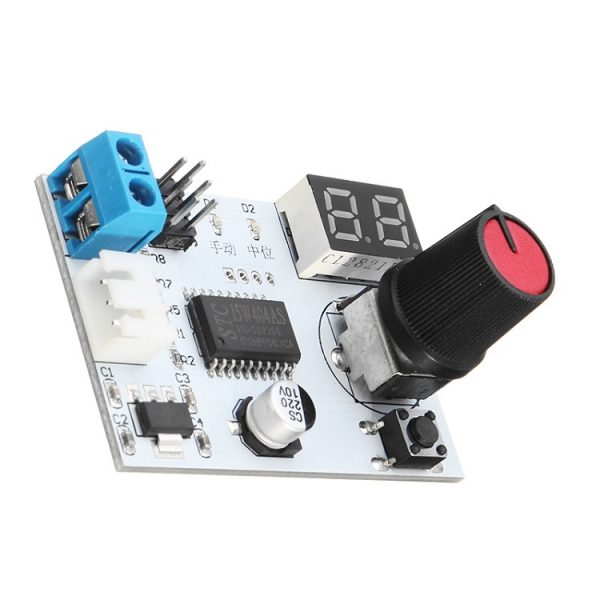

3.Turning the knob, the servo will rotate synchronously;
4.There is an elastic button under the knob which can switch mode;
"Back to" is: back to the middle position;
"Manual" is: knob control.
Package included:
1x Servo Tester
