SBUS To PWM Decoder for FrSky R-XSR XM+ XSR R9MM Receiver
Specification:
Item name: Receiver Decoder
Operating Voltage Range: 5~8V
Usage: convert SBUS to PWM signal output

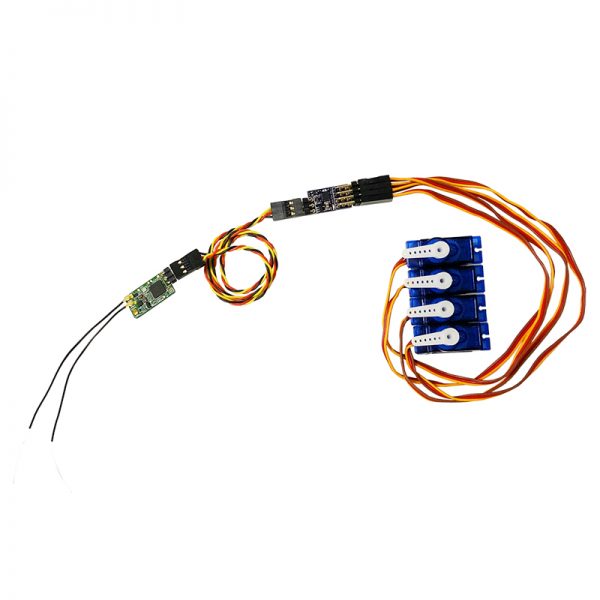

Compatibility: General SBUS, such as FUTABA, FLYSKY,FrSky XM/XM+/X4RSB/X8R/XSR / R-XSR/R9 Mini/R9MM receivers to convert SBUS signal for use of a conventional servo (other than use SBUS compatible servo directly) with SBUS system.
Output: CH 1~4 (default )or CH 5~8, combine use two of this decorder to CH1~ CH8 outputs
Size: 11 x 19 mm (PCB)

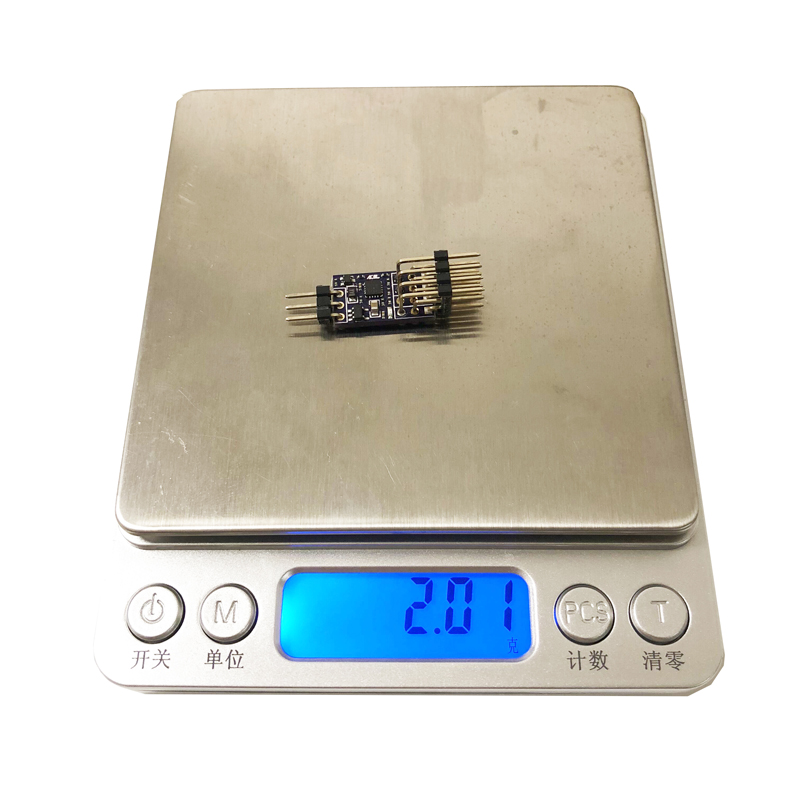

Weight: 2.1g
Features:
Convert SBUS to PWM signal
Combine use two SPD01 for 8 channels output
Package Included:
1 x SBUS To PWM Decoder
