Description

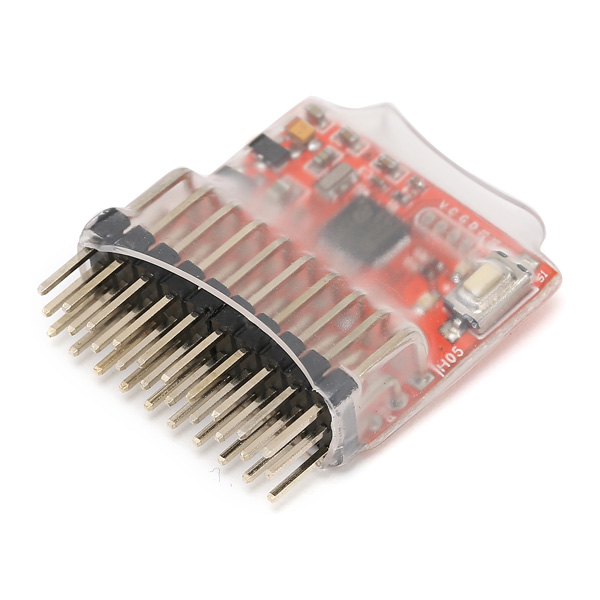

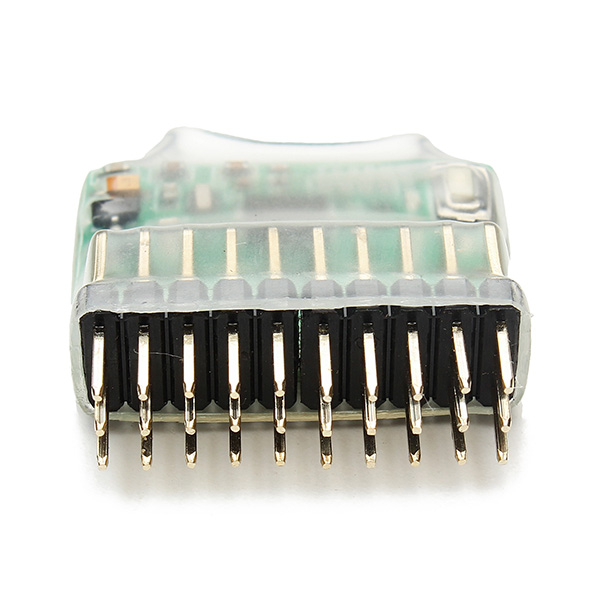

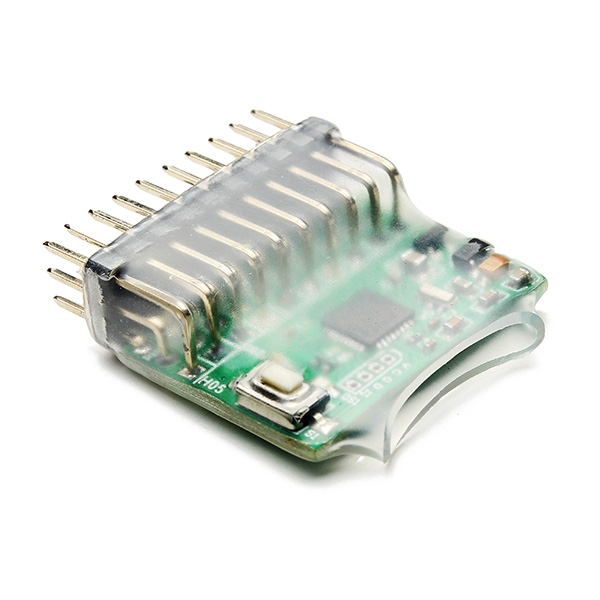

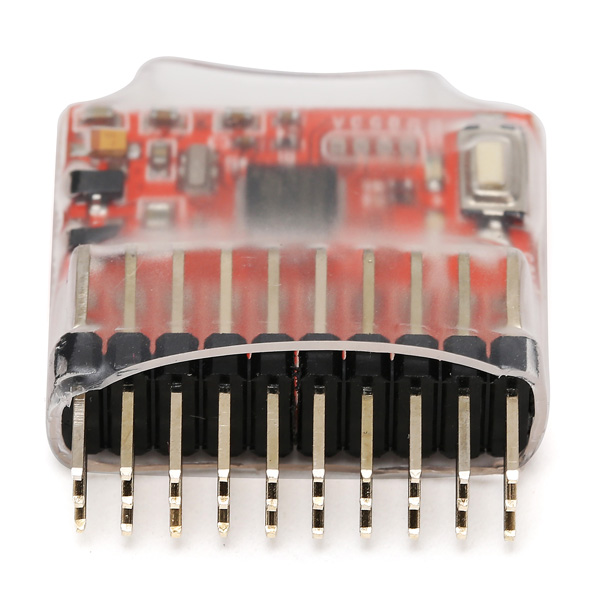

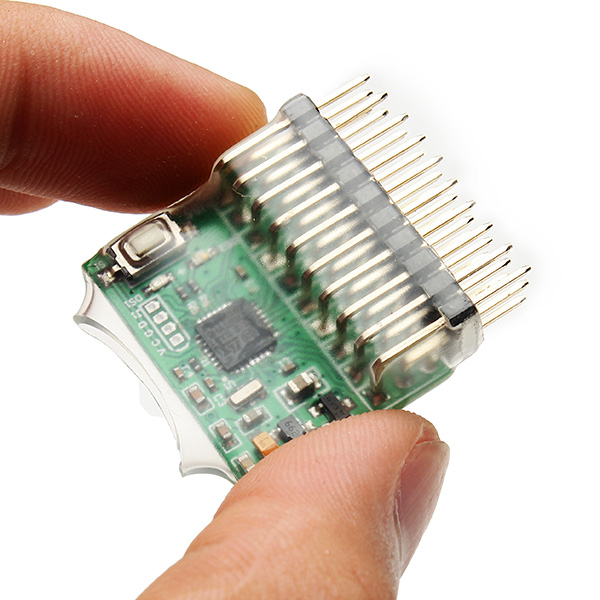

S.BUS Turn PWM+s.bus 16CH Multi-functional Converter SBUS-PPM-PWM
Feature:
1. Input signal will be automatically recognized, to achieve free switching between PPM-PWM and S.BUS.
2. Using STM32 microcontroller, external crystal oscillator. Fast signal processing, high precision output signal.
3. When the input signal is S.BUS, you can switch the output 1-8CH or 9-16CH by pressing the key.
Specification:
Working voltage: 3.7V-8.4V
Working current: 〈30mA
Size: 29*26*8mm
Weight: 3.8g
Instructions:

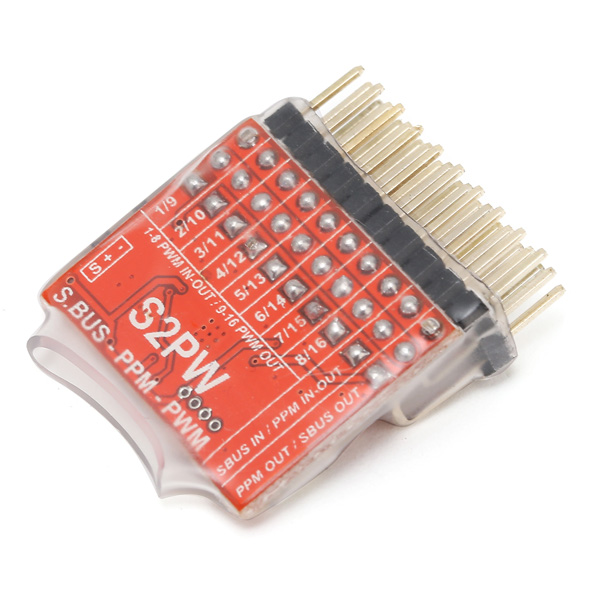

1. When the 9CH pin input PPM signal, 1-8CH pin output PWM, 10CH pin output S.BUS signal, blue LED flashes one time per cycle.
2. When 1-8CH pin input one or more PWM signal, 9CH pin output PWM, 10CH pin output S.BUS signal, blue LED flashes two times per cycle.
3. When the 9CH pin input S.BUS signal, 1-8CH pin output PWM, 10CH pin output PPM signal, blue LED flashes three times per cycle.
4. Without signal input, blue LED won't flash.
Package Included:
1 x S.BUS Turn PWM+s.bus 16CH Multi-functional Converter SBUS-PPM-PWM
,
,
,
,
