Description

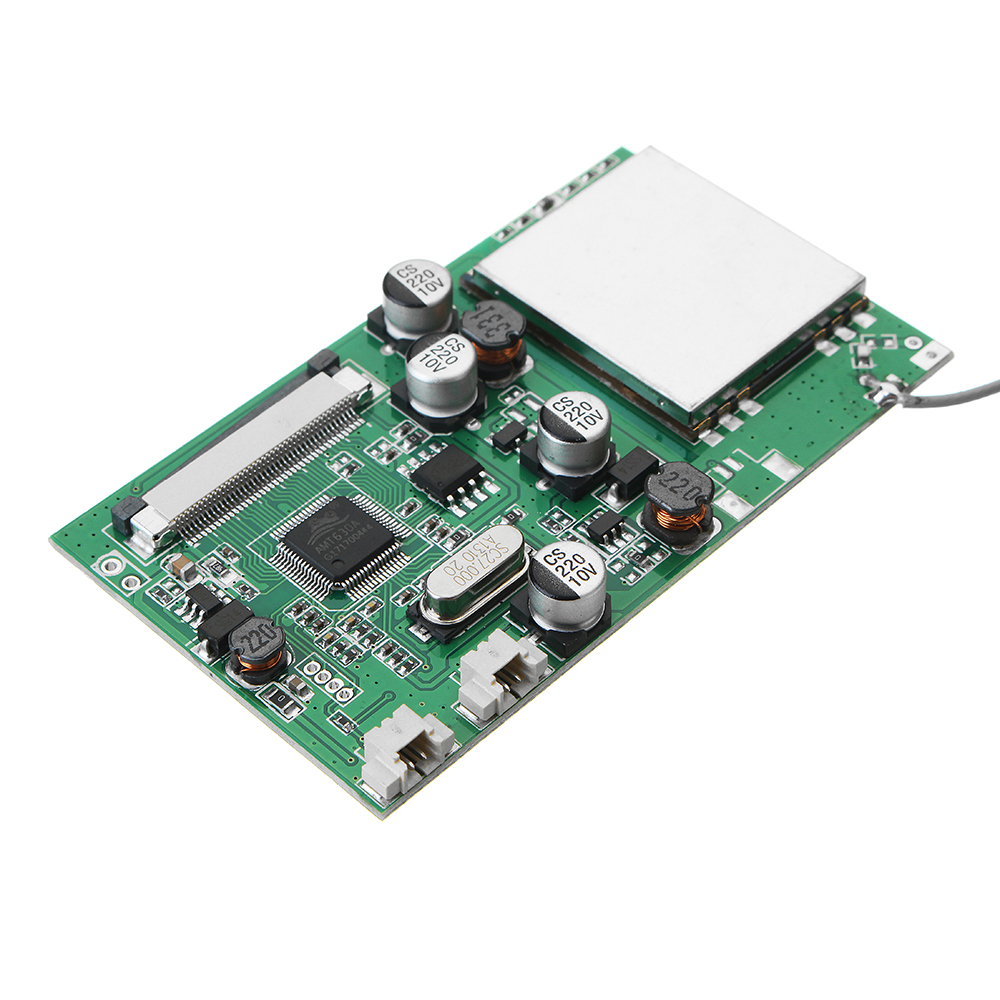

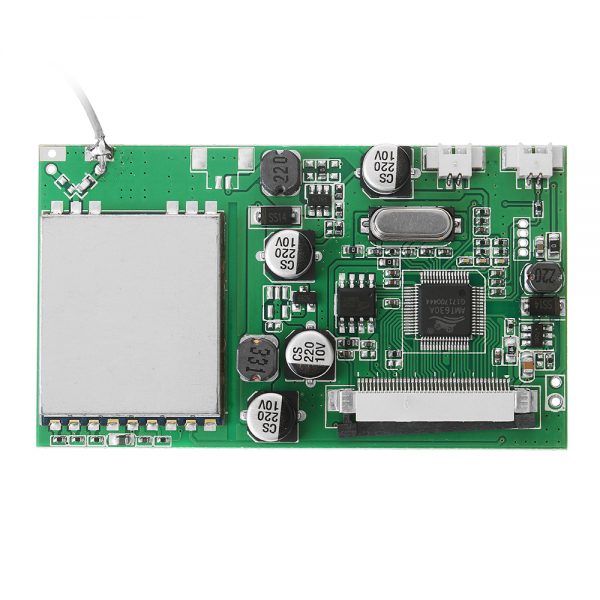

RX5808 5.8G 48CH FPV Receiver with 5 Inch HD Displayer Snow Screen DIY For VR Headset FPV Goggles Monitor
Features
48CH 5.8G RF, one key searching

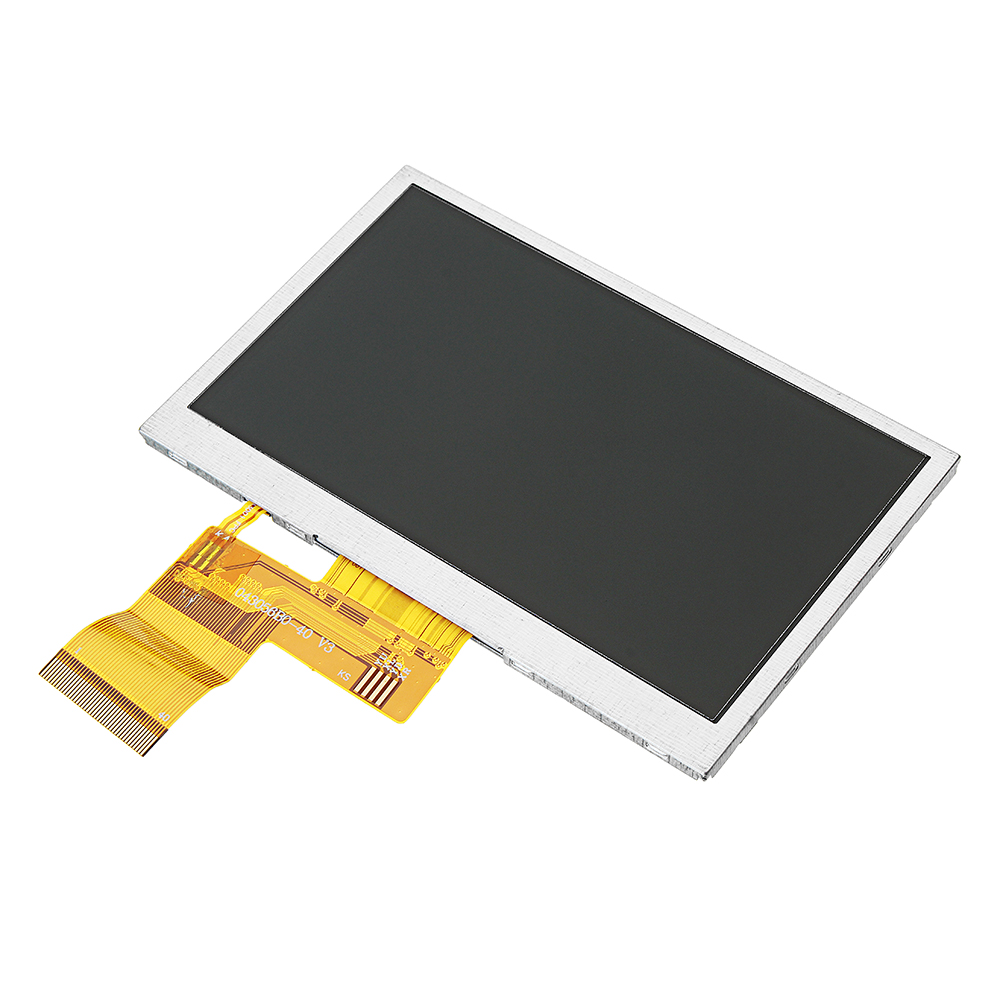

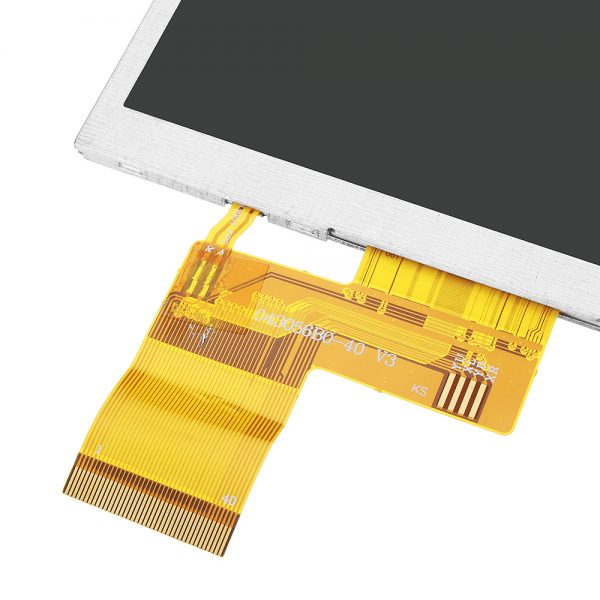

5 Inch HD Display
Snow Screen
Specification
Working Voltage : DC3V-5V(built in 3.7V lipo)
Input Signal : 1CH 5.8G RF
Output Signal : HD 5 Inch LCD Screen
Display : When it has AV signal, it will shift to AV image, if not , it will be snowscreen status.
Built in 3.7V 1800mah(will alarm below 3.15V low voltage and turn off at 2.8V)
Channel : CH1-CH48
Operation
KEY1 : Short Press: Shift band from A-F;
In menu mode, it is "down"
KEY2 : Short press : Menu;
Long press : Scan frequency, if it is not correct one, long press it again till you get it.
KEY3 : Short press : Shift Channel 1-8
In menu mode, it is "up"
Package Included
1 x DIY RX5808 5.8G 48CH 5 Inch FPV Screen
