Description

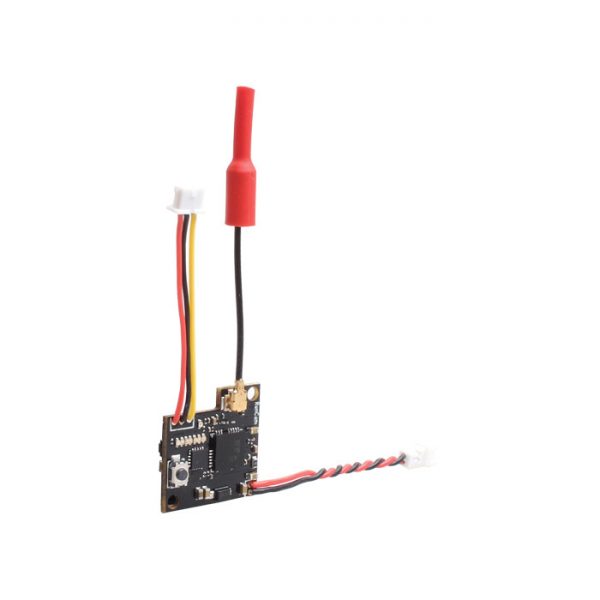

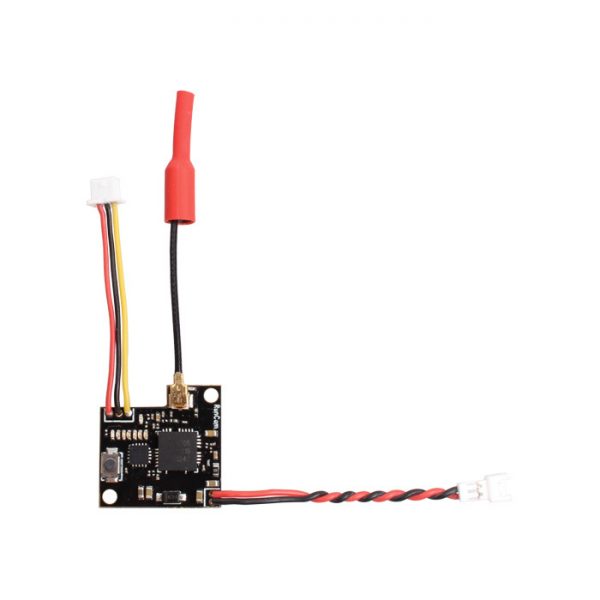

Runcam TX200U 5.8G 48CH 25mW/200mW FPV Video Transmitter VTX For RC Drone
Parameter
| Model | RunCam TX200U |
| Frequency Channel | 5.8G 48CH |
| Output Power | 25mW / 200mW |
| Working Current | 5V@150~400mA |
| Voltage out | 5V@max 250mA |
| Voltage in | 1S 3.5-5.5V |
| Video Input Impedance | 75 Ohm |
| Antenna | U.FL 5.8G 2dB Omni antenna |
| Weight | 2.5g (with antenna) |
| PCB Size | 19mm*19mm |
User Manual : https://www.runcam.com/download/RunCam_TX200U_manual.pdf
Package Included
1 X TX200U
1 X Set of screws
,
,
,
,
,
