Description

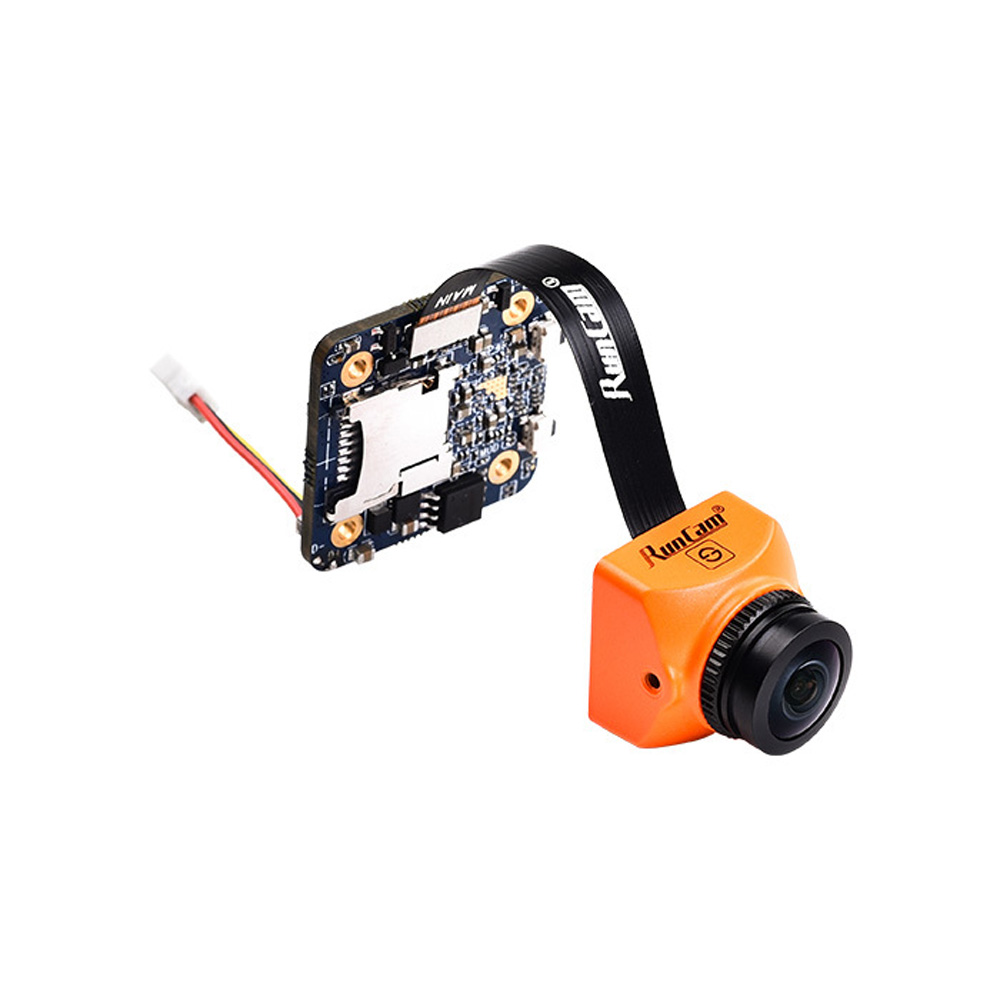

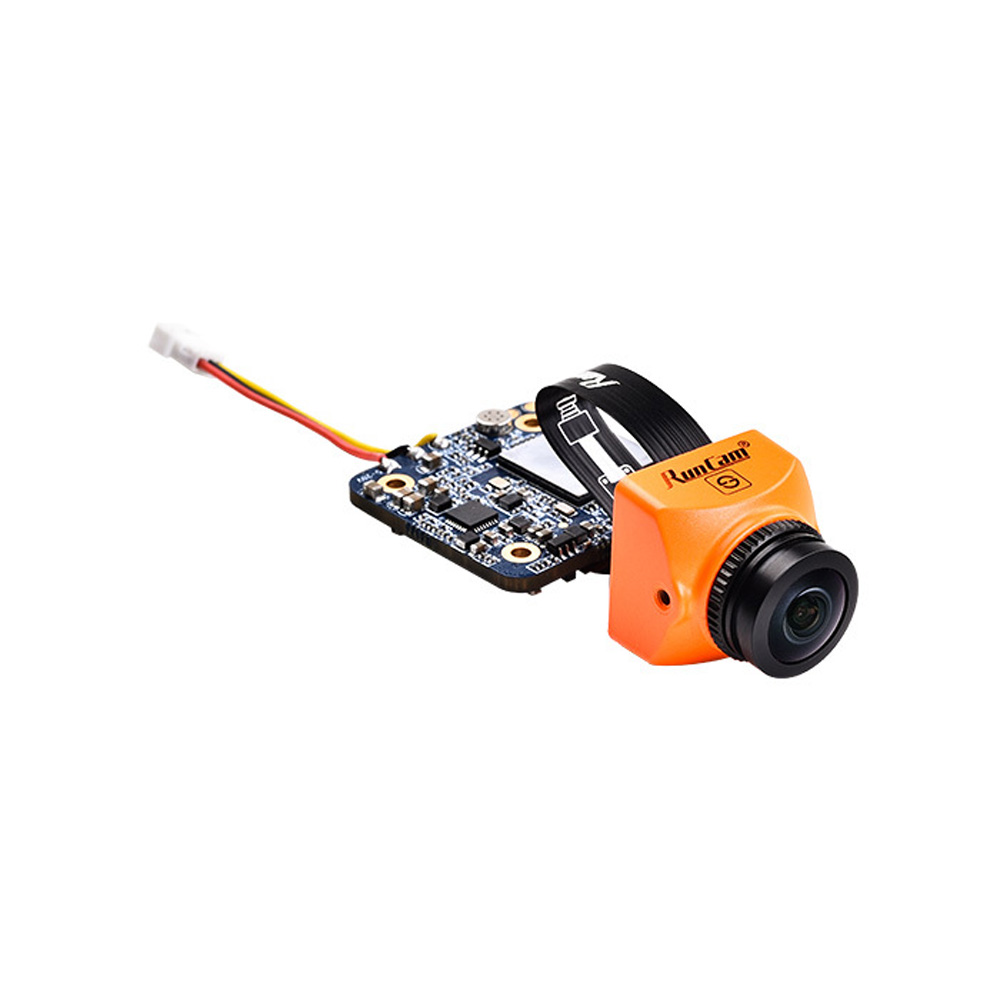

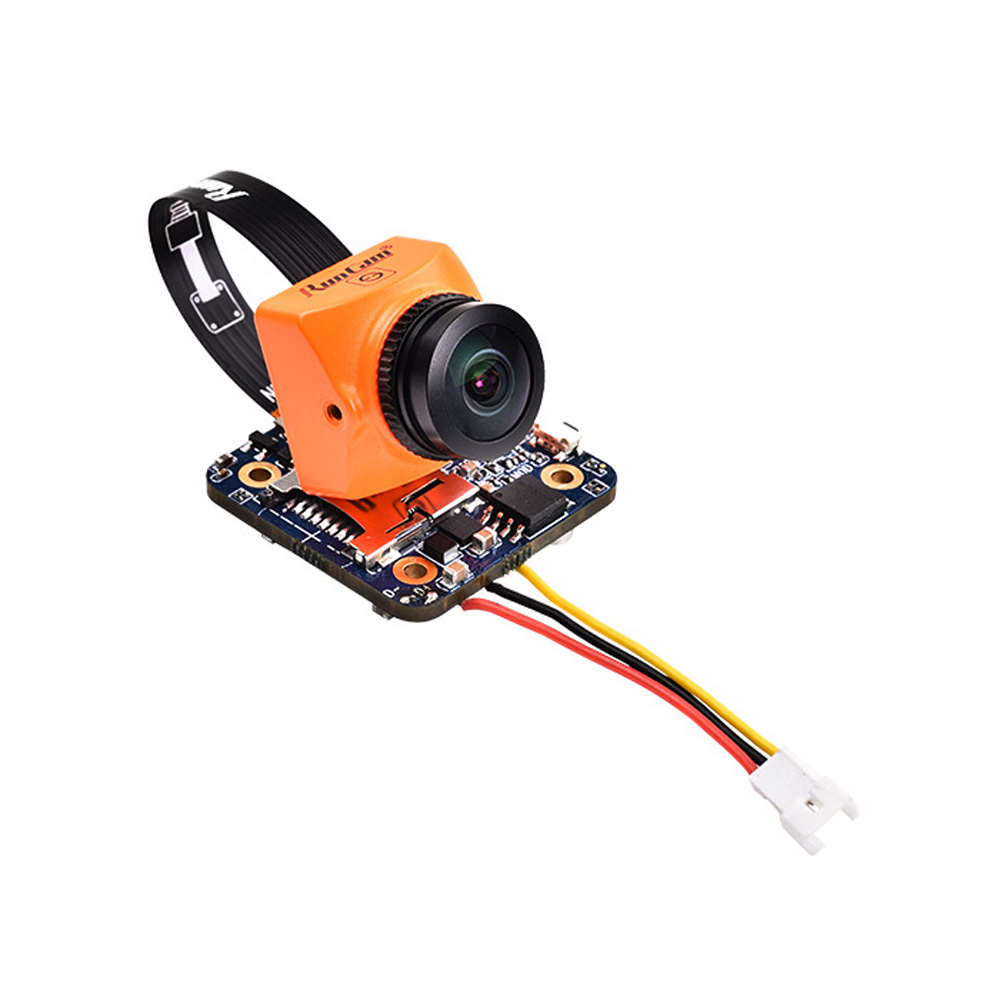

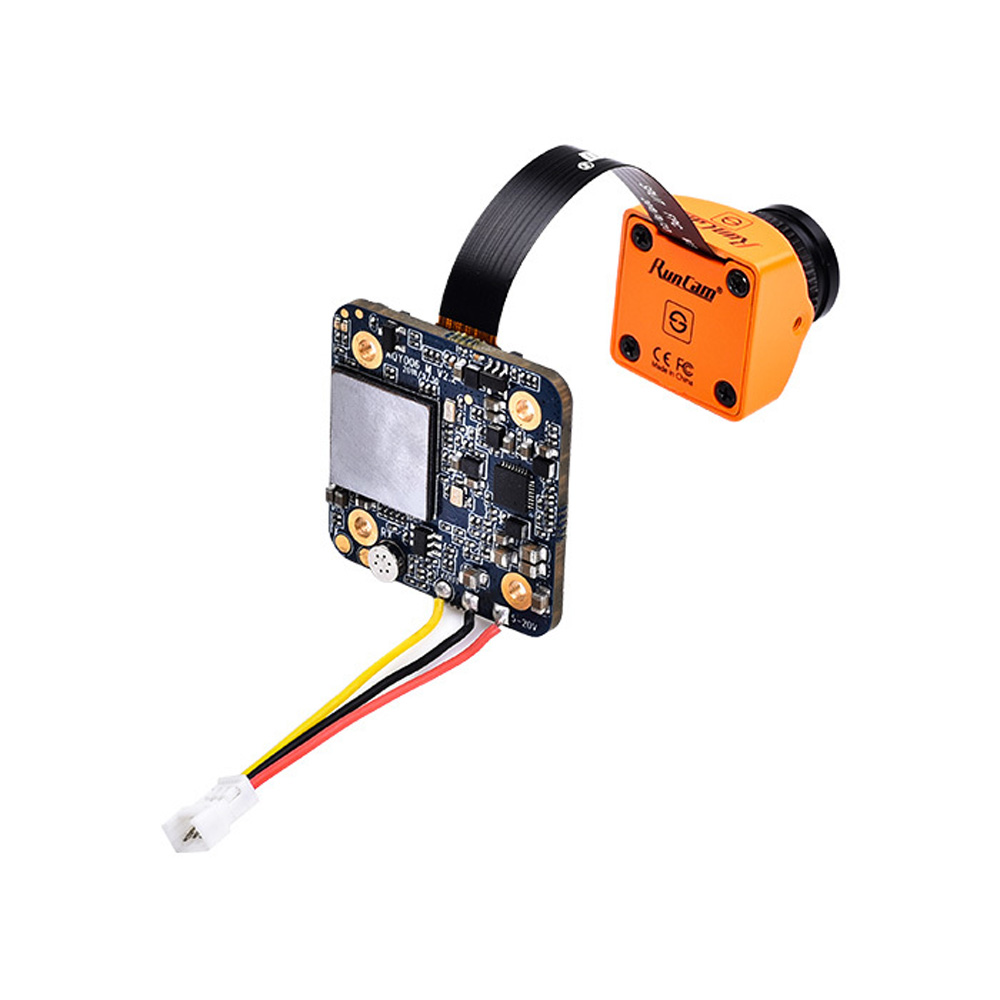

RunCam Split Mini 2 FOV 130 Degree 1080P/60fps HD Recording & WDR FPV Camera NTSC/PAL Switchable
Description:
Brand name: RunCam
Item number: Split Mini 2
Field of View(FOV): FPV FOV 130° / Recording FOV 165°
Video Resolution: 1080@60fps / 1080@30fps / 720@60fps
Video File Format: MOV
Image Resolution: 2 MP
TV Mode: NTSC (720*480) / PAL (720*576) Switchable
Interface : icro USB / UART
Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10 / UHS-I / UHS-II / UHS-III)
Hole Distance of Installation: 20*20mm
Dimensions: PCB 29*29mm / Lens Module 19*19mm
Power Input: DC 5-20V
Working Current: 650mA @5V / 270mA @12V
Weight: 12.5g
Features:
* 1080P/60fps HD recording & WDR FPV camera
* Power-off protection for video files
* Ultra light weight (12.5g)
* Low latency TV-OUT (40ms)
* Wide voltage (5-20V)
* Anti-drop SD card
RunCam Split Mini 2 FPV Camera Manual, click here
Package included:
1x RunCam Split Mini 2 FPV Camera
1x Metal Cover
1x Micro-to-full-size mounting bracket
1x Set of M2 screws
1x 3PIN 1.25 JST Silicone Cable(female)
1x 3PIN 1.25 JST Silicone Cable(male)
1x 3PIN 1.0 JST Silicone Cable
1x 1x Manual
1x Micro-to-full-size mounting bracket
1x Set of M2 screws
1x 3PIN 1.25 JST Silicone Cable(female)
1x 3PIN 1.25 JST Silicone Cable(male)
1x 3PIN 1.0 JST Silicone Cable
1x 1x Manual
