Description
Description:
Brand Name: Runcam

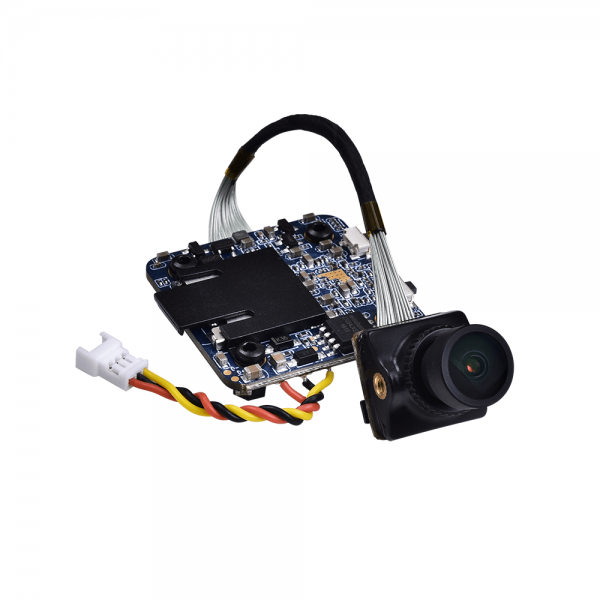

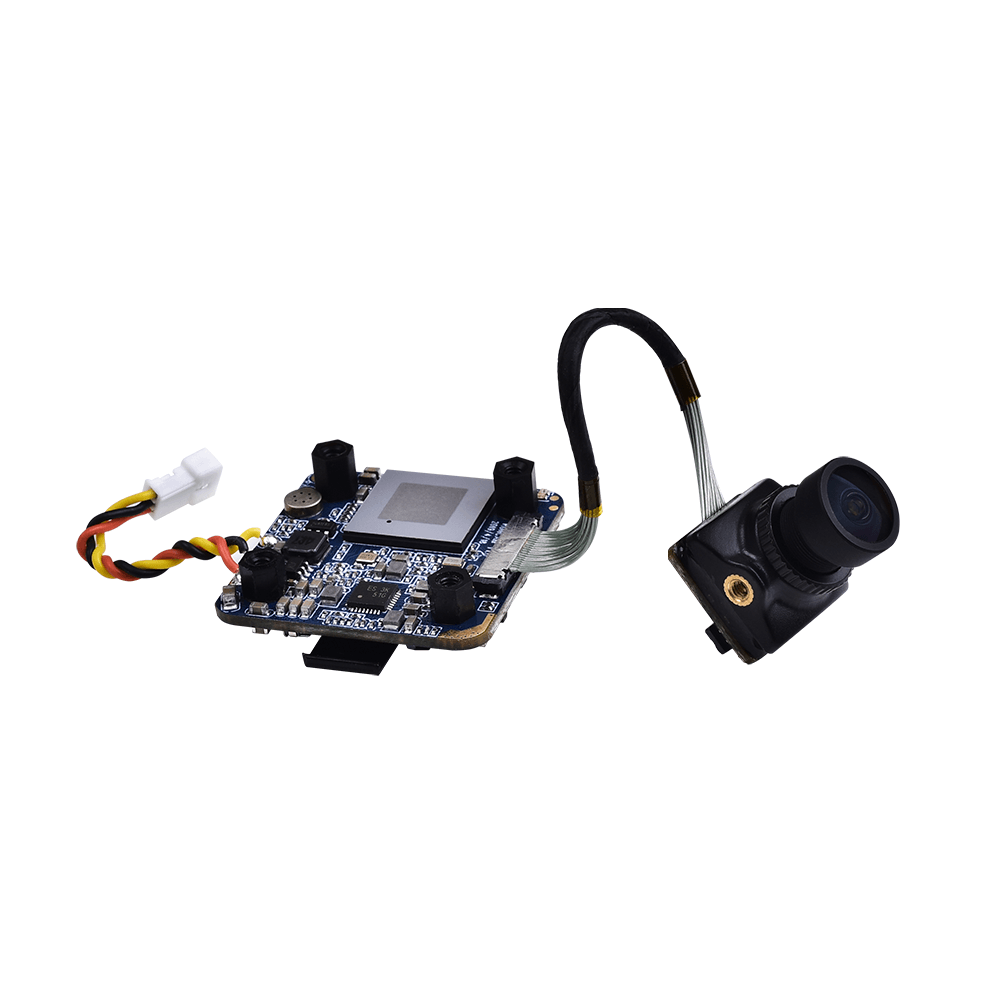

Item Name: Split 3 Nano
Color: Black
Field of View(FOV) : Recording FOV: 165°; FPV FOV: 165°@16:9, 130°@4:3
Video Resolution: 1080@60fps / 1080@50fps / 1080@30fps / 720@60fps
Video File Format: MOV
Image Resolution: 2 MP
TV Mode: NTSC (720*480) / PAL (720*576) Switchable
Interface: JST 1.25mm / UART
Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10 / UHS-I / UHS-II / UHS-III)
Hole Distance of Installation: 20*20mm
Dimensions: PCB 29*29mm / Lens Module 14*14mm
Power Input: DC 5-20V(Non-direct power supply from battery. Powered direcly with battery will generate surges and burn the camera.)
Working Current: 650mA @5V / 270mA @12V
Weight: 10.5g
Weight: 10.5g
Features:
– 1080P/60fps HD recording & WDR FPV camera
– Low latency TV-OUT (40MS)
– Anti-drop SD card
– Power-off protection for video files
– Wide voltage (5-20V)
– FPV aspect ratio 16:9/4:3 switchable
– Stronger flexible ribbon cable
– Optimize TV-OUT interference to reduce ripple
– Replaceable lens manual focus supported
– Standard mounting bracket, easy to install
Package Included:
1x Runcam Split 3 Nano FPV Camera
1x 14 to 19 Bracket
1x Plastic Cover
1x 3PIN 1.25 JST Silicone Cable
1x Set of M2 Screws
1x Manual
