Description
Split 2S new firmware for updating:Download
Description:
Brand Name: RunCam

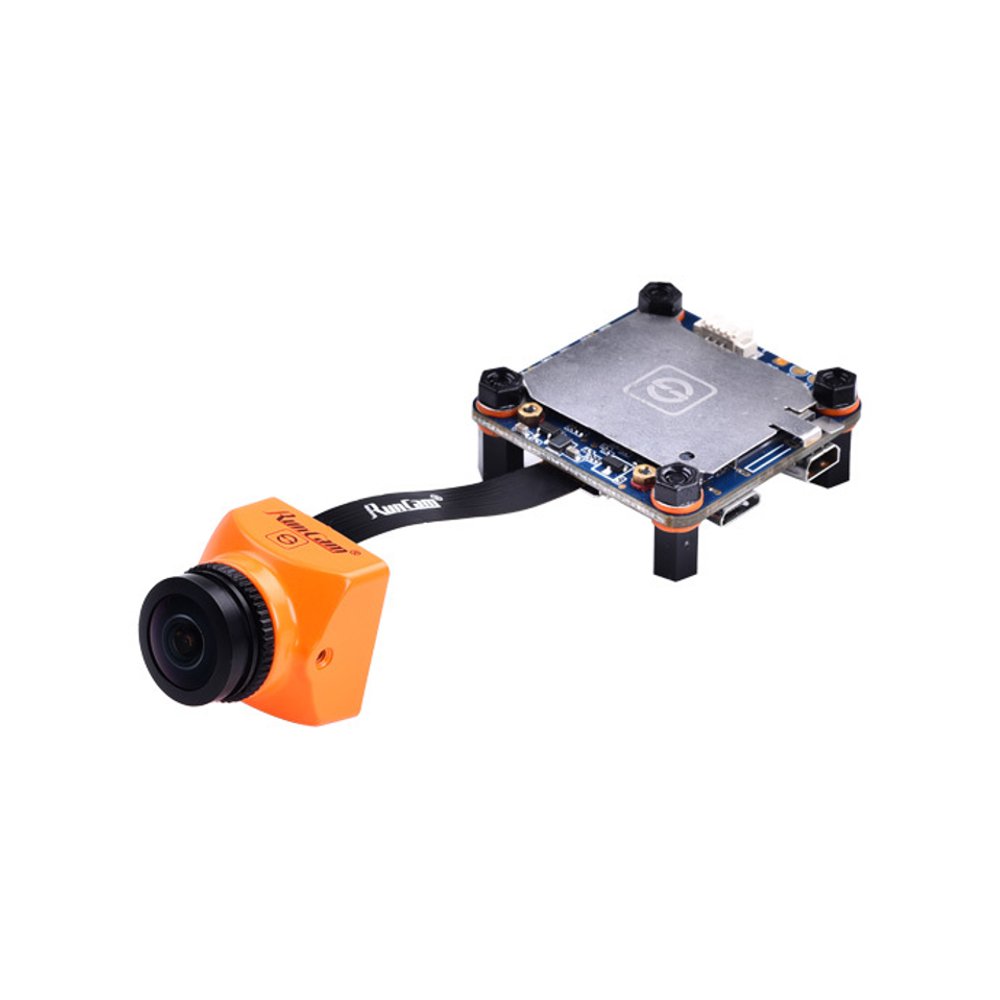

Item Name: Split 2S
Version: With WiFi module, Without WiFi module (optional)
Specifications:
| Field of View(FOV) | FPV FOV 4:3@140°, 16:9@170°/HD Recording 170° |
| Lens Thread Size | M12*0.5 |
| Video Resolution | 1080@60fps/1080@50fps /1080@30fps/720@60fps |
| Video File Format | MOV |
| Image Resolution | 2 Megapixels |
| TV Mode | NTSC (720*480)/PAL (720*576) Switchable |
| Interface | Micro USB / UART |
| Max Micro SD Card Supported | 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III) |
| WiFi Module | Support (Removable) |
| Dimensions | PCB 38*38mm/Lens Module 19*19mm |
| Power Input | DC 5-15V / DC 5V(USB) |
| Working Current | 650mA @5V / 270mA @12V |
| Net Weight | 19g |
Features:
– 1080P@60fps HD recording & WDR 16:9 / 4:3 FPV camera
– 38x38mm@30.5×30.5 M4 holes, Standard size for a better experience

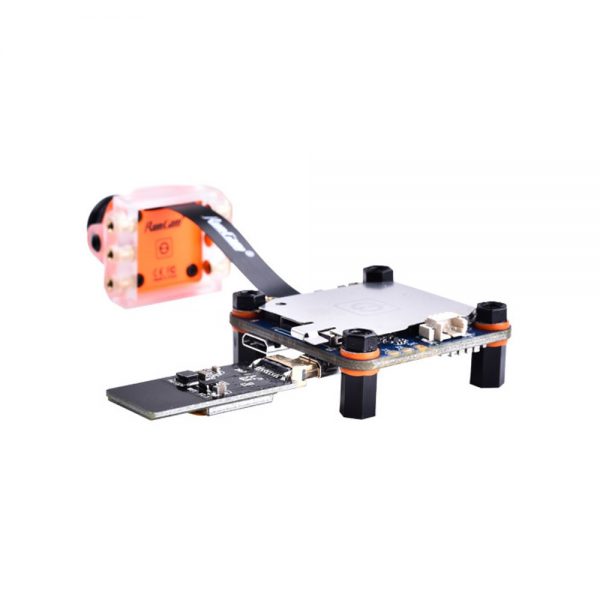

– Removable WiFi module for APP
English Manual, Click Here
Spare Lens Extension Cable, Click Here
Package Included:
1x Camera

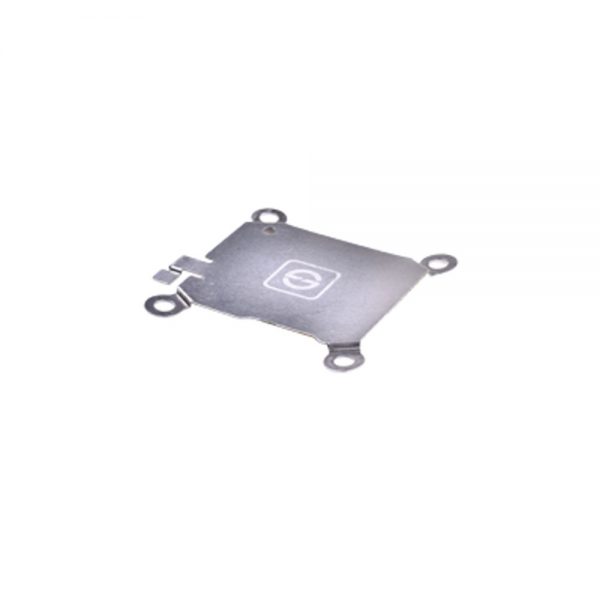

1x SD Card Protector

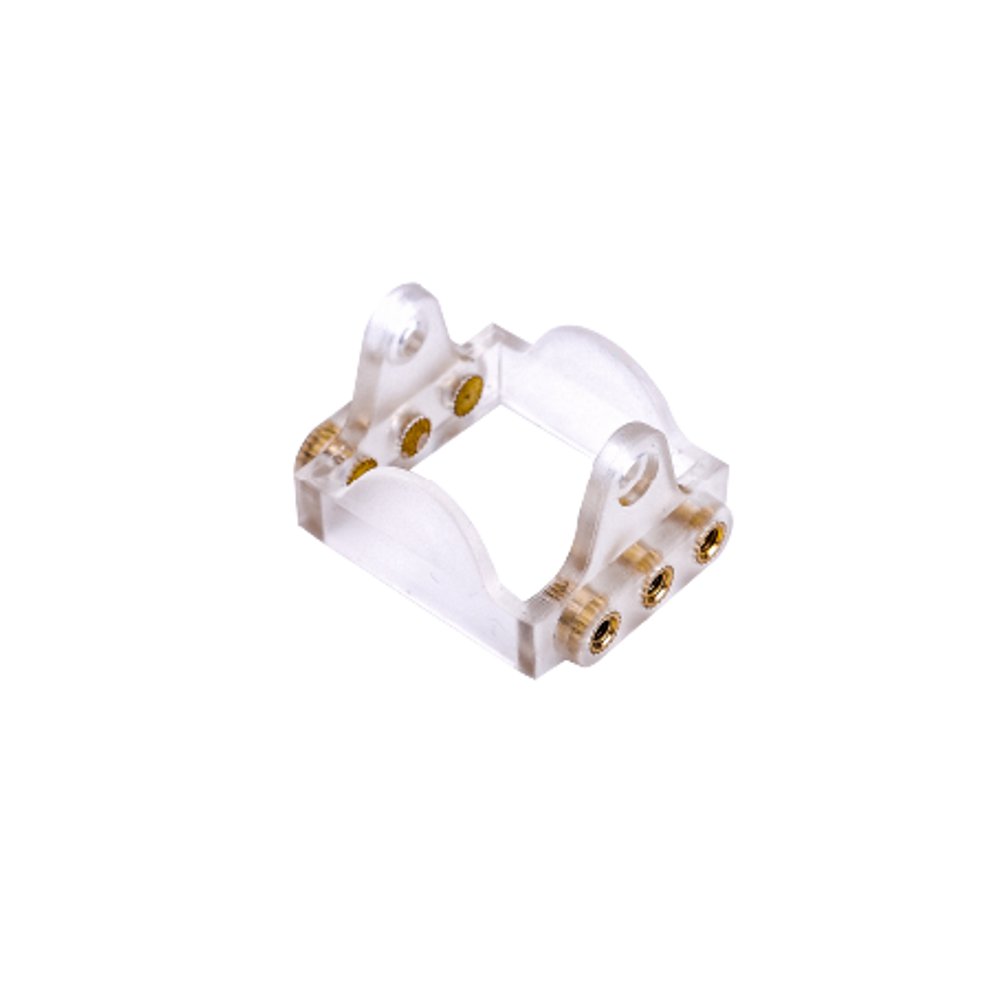

1x ABS Bracket

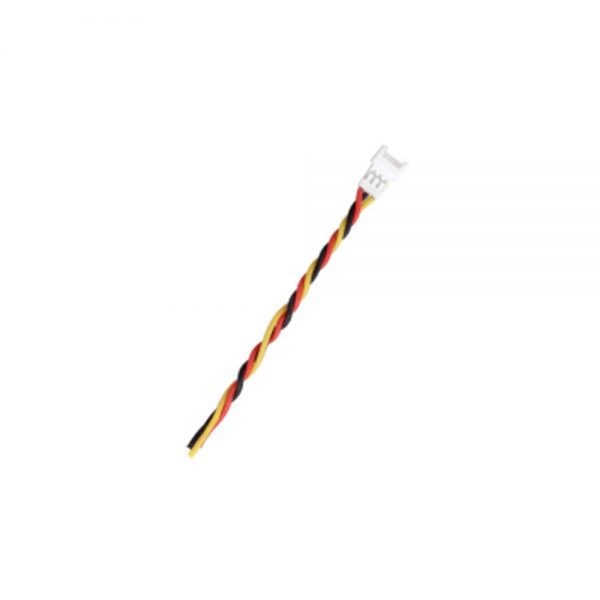

1x 3pin FPV Silicone Cable(male)

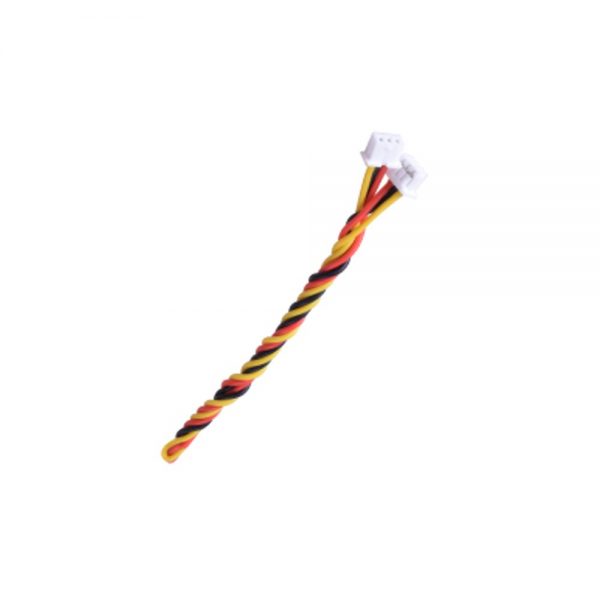

1x 3Pin Silicone Cable (female)
1x Set of Screws
1x Manual
