Description

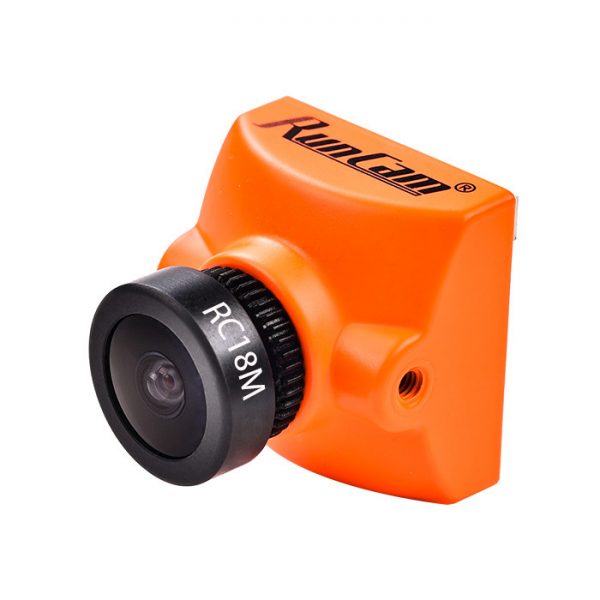

RunCam Racer 2 Super WDR CMOS 700TVL 1.8mm/2.1mm fpv Camera 6ms Low Latancy OSD With Selector Switch
Parameters
| Model | RunCam Racer 2 | ||
| Image Sensor | Super WDR CMOS Sensor | ||
| Horizontal Resolution | 700TVL | ||
| Lens |
|
||
| Screen Format | 4:3 / Widescreen Switchable | ||
| Signal System | NTSC / PAL Switchable | ||
| Mirror/Flip | Available | ||
| Integrated OSD | Yes | ||
| One Touch Scene Setting | Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight | ||
| S/N Ratio | >50dB | ||
| Electronic Shutter Speed | Auto | ||
| Min. Illumination | 0.01Lux@1.2F | ||
| WDR | Super WDR | ||
| Day/Night | Auto | ||
| Menu Control | Joystick Control / UART Control Switchable | ||
| Power | DC 5-36V | ||
| Current | 110mA@5V / 40mA@12V | ||
| Housing Material | ABS | ||
| Net Weight | 5.5g | ||
| Dimensions | L19mm*W19mm*H18mm |
User Manual :https://www.runcam.com/download/Racer2-Manual.pdf?t=20181127
