Description
Click here to download the manual: Manual.pdf
Specification:

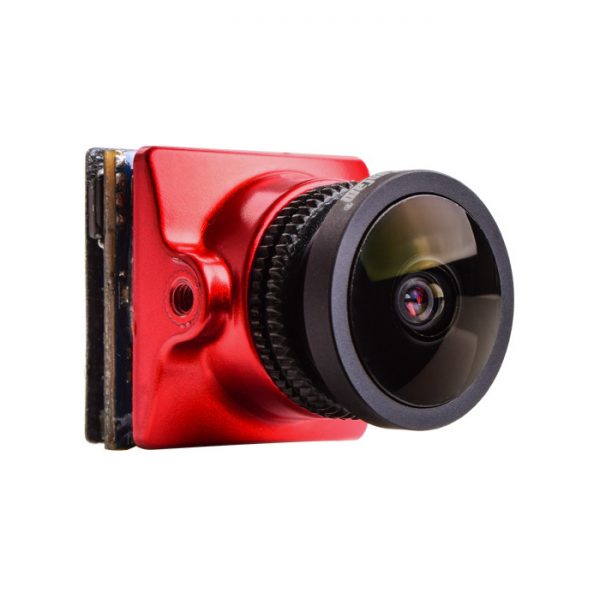

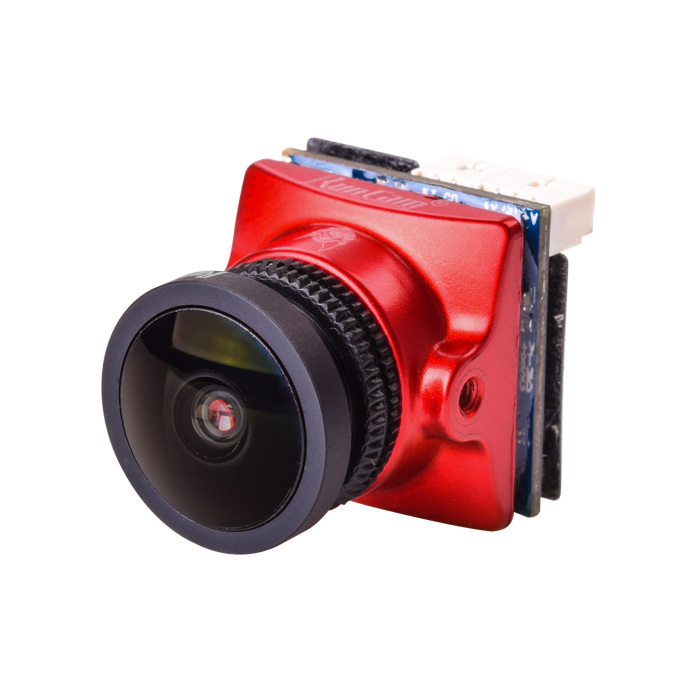

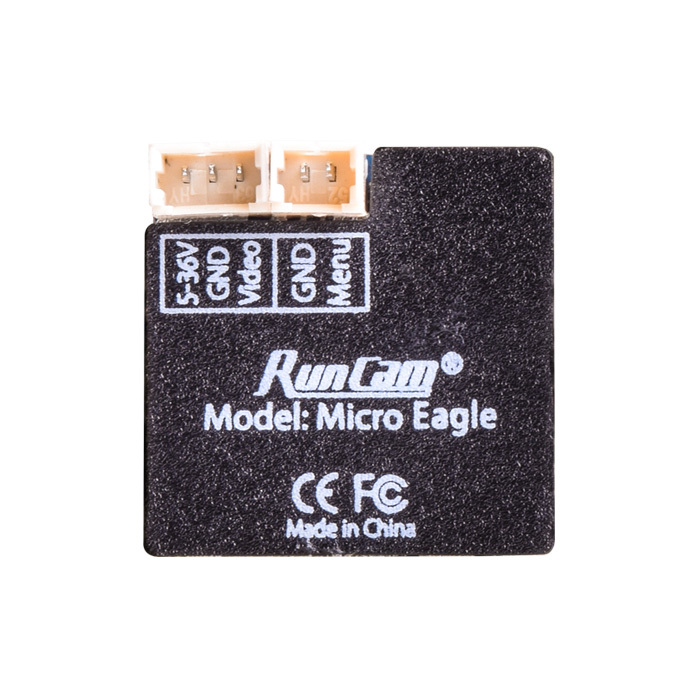

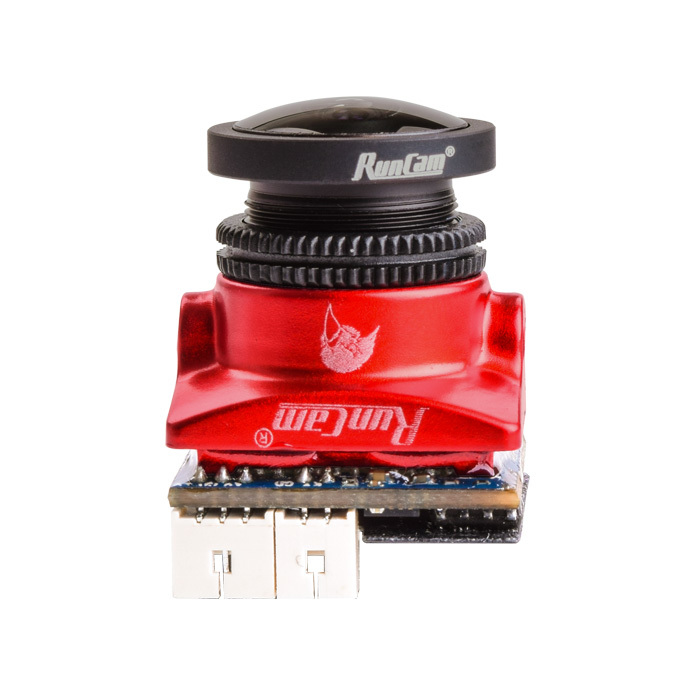

Model: RunCam Micro Eagle
Image Sensor: 1/1.8" CMOS Sensor
Horizontal Resolution: 800TVL
FOV : FOV 170 @ 16:9 FOV 140 @ 4:3
Screen Format: 16:9 / 4:3 Switchable on OSD menu
Signal System: NTSC / PAL Switchable on OSD menu
Mirror/Flip: Yes
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Max Gain: 1-9 Level
Min. Illumination: 0.001Lux@1.2F
WDR: Level 1-6 available
Day/Night: Auto/External/Color/B&W
Power: DC 5-36V
Current: 200mA@5V / 90mA@12V
Housing Material: ABS
Net Weight: 8.5g
Dimensions: L19mm*W19mm*H22mm
Features:
Mirror & Flip image available
16:9 / 4:3 Switchable on OSD menu
NTSC / PAL Switchable on OSD menu
Level 1-6 available WDR
Level 1-6 available WDR
Package included:
1x Camera
1x Aluminum bracket
1x Set of screws
1x OSD Key-press Board
1x 3pin FPV silicone cable
1x Manual
