Description

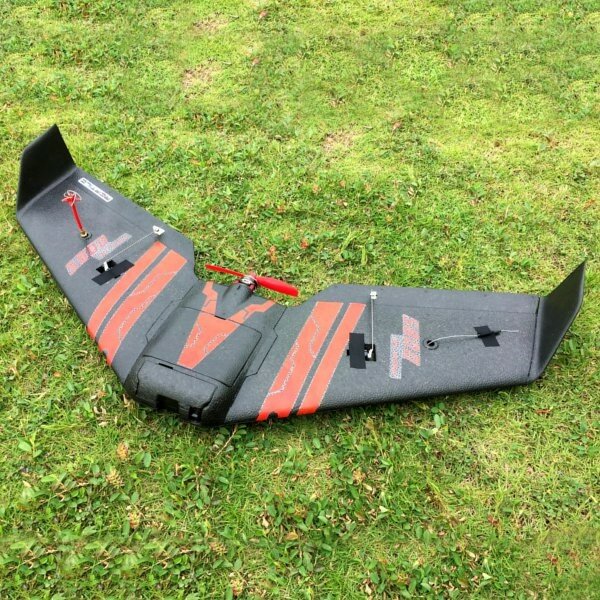

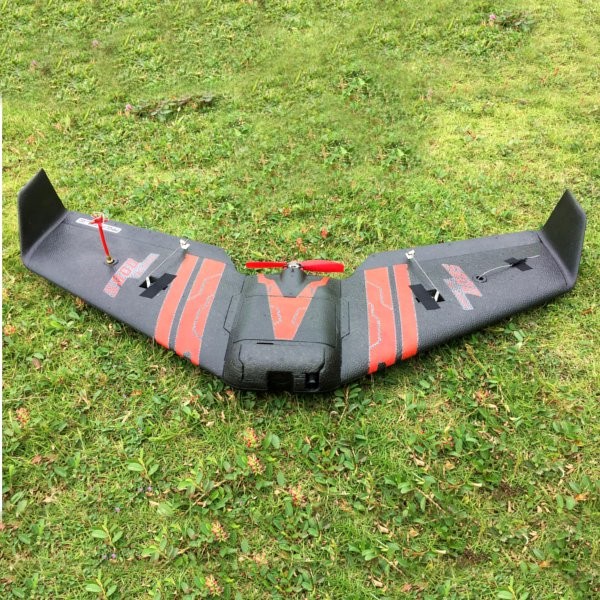

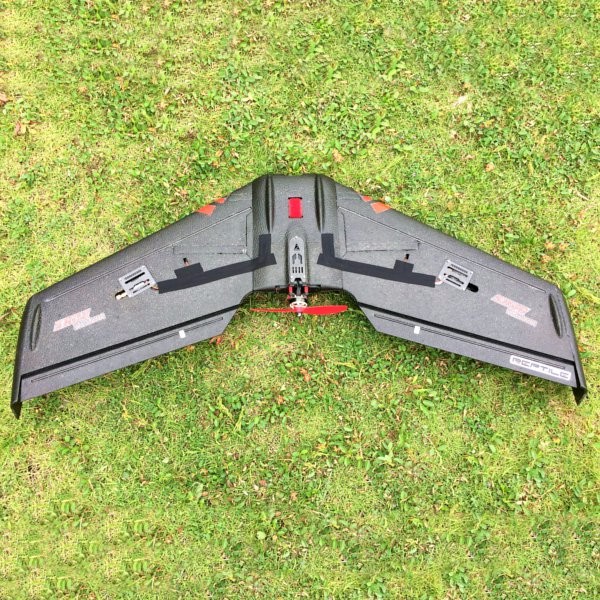

Reptile S800 SKY SHADOW 820mm Wingspan FPV EPP Flying Wing Racer KIT
Overview and Build:
Maiden Flight:
First FPV Test:
Description:
Brand Name: Reptile
Item Name: S800 SKY SHADOW
Material: EPP foam
Color: Black
Wingspan: 820mm
Length: 405mm
CG:125mm behine the nose
Weight:170g(Without electronic equipment)
Packing Size: 435x270x30mm
Features:
High quality, fine workmanship
Streamlined design, high speed and low wind resistance
Required Parts Sold On Our Site(Not Included):
Radio System: 3 channels with elevon mixing, Click Here
Servo: 9g*2, Click Here
Battery: Max 3S 11.1V 1800mAh Lipo, Click Here
ESC: 20A-30A, Click Here
Motor: 2204/2300KV – 2205/2300KV, Click Here
Prop: Max 6045 (5045/6045), Click Here
FPV Camera: GoPro4 /runcam swift /1177/1190, Click Here
Note:
This is the KIT version,not include any electronic devices.
The new version doesn't include the motor mount and screws.
If you want to buy PNP-FPV version,please Click Here
PCB Manual, Click Here
Assembly Schematic, Click Here
Spare Parts, Click Here
Package Included:
1x Reptile S800 SKY SHADOW 820mm RC Airplane KIT
,
,
,
,
,
