Description
Specification:

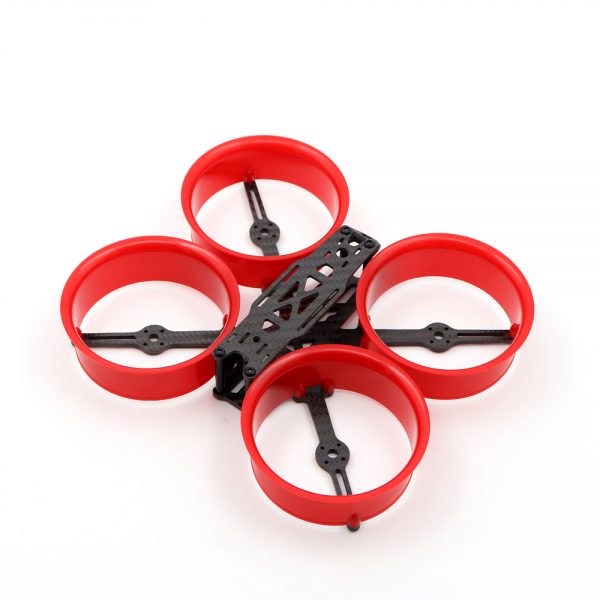

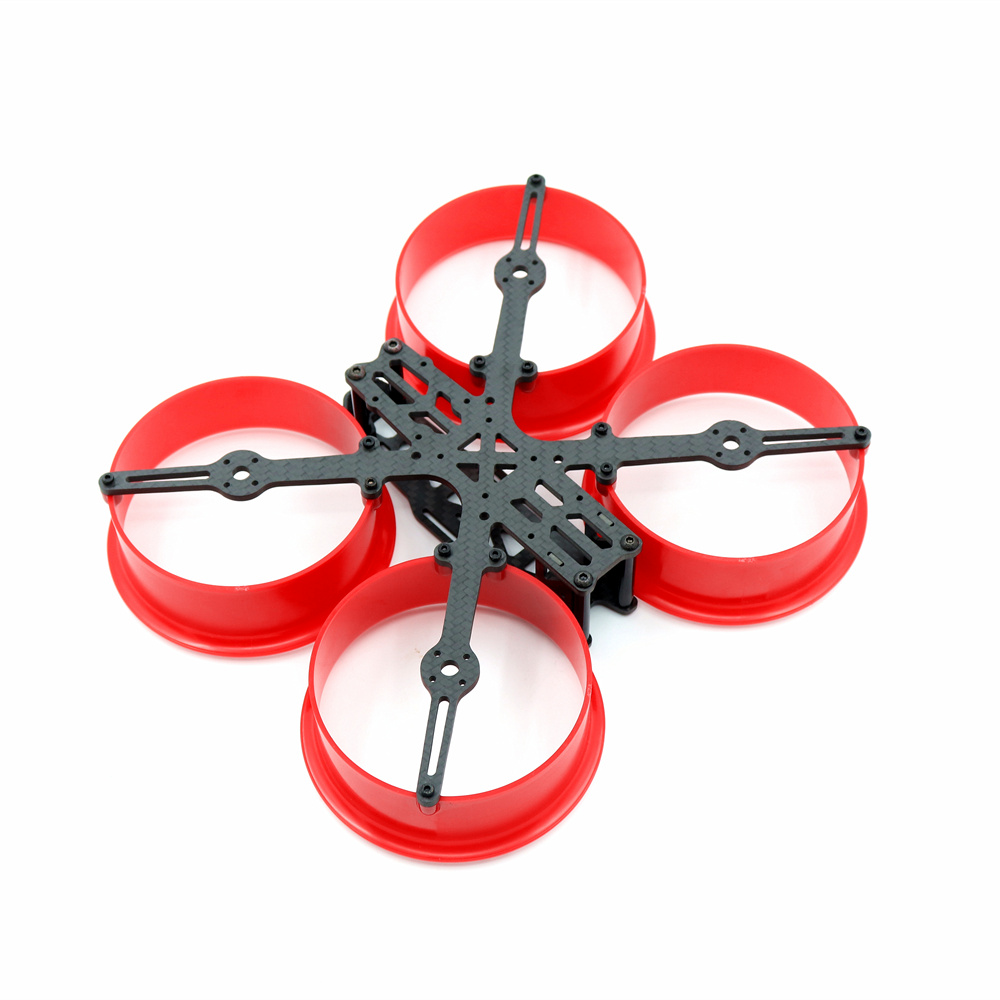

Item name: CLOUD-149 Frame Kit
Wheelbase: 149mm
Structure: X-type Division
Top plate: 2mm
Side plate: 1.5mm
Bottom plate: 3mm
Internal height: 30mm

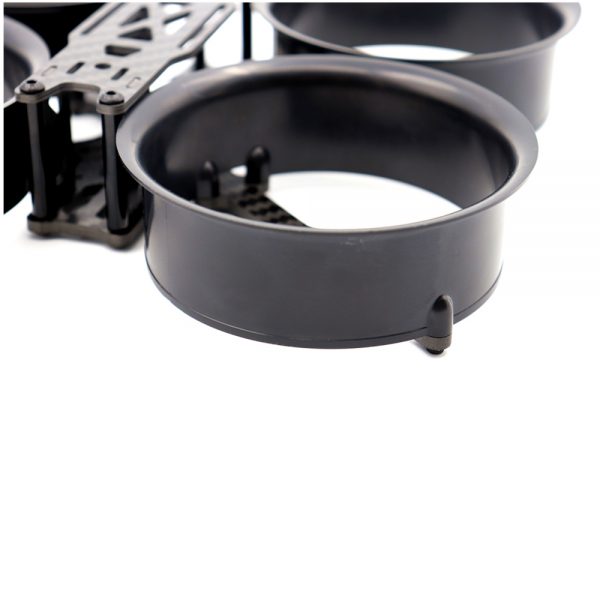

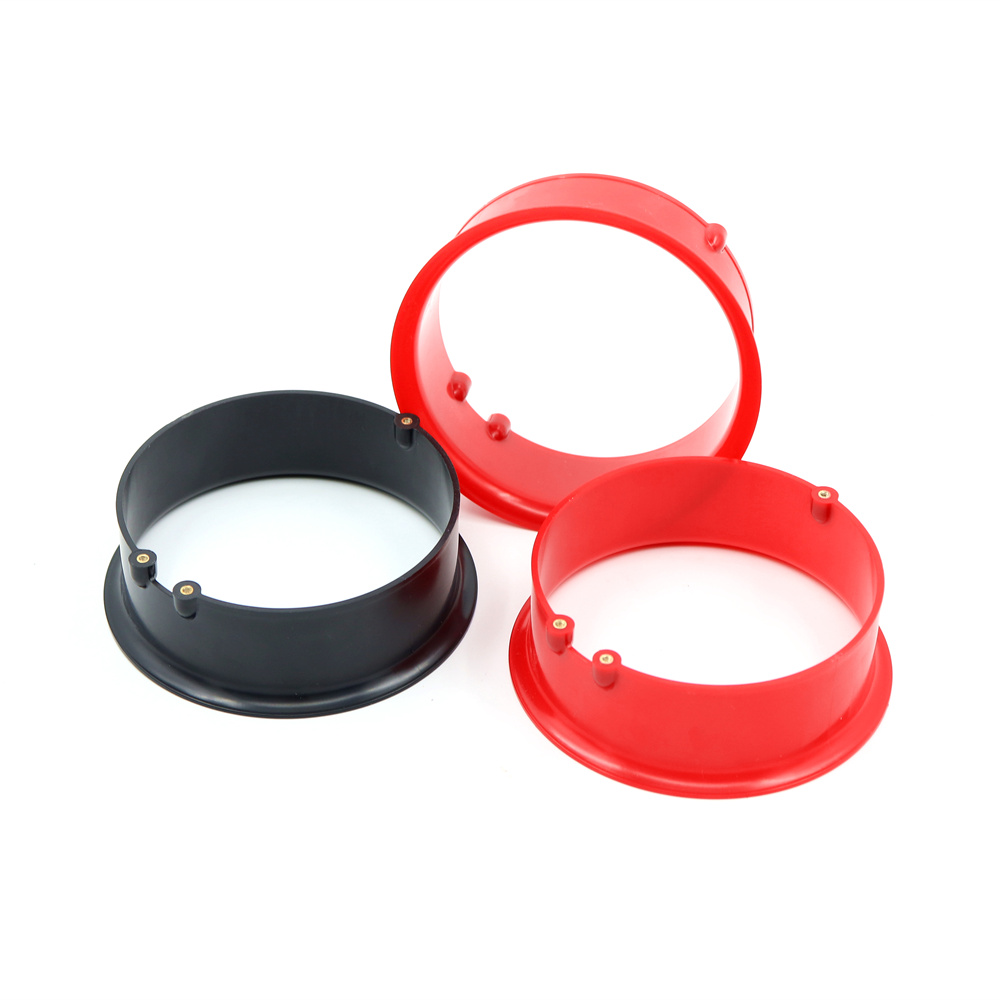

Plastic parts: ABS material plastic Diversion ring
Printed parts: TPU antenna base *1
Weight: 88G
Recommend parts(Not included):
Flight Controller & ESC : Mini F4 Flight control+ 20A ESC
Hole position of equipment: 20*20mm/30.5*30.5mm
Propeller: 3"
Battery:4S/850mAh-4S/1100mAh
Motor:1407 series and other motor hole positions are 12mm size
Camera installation width: 19mm
Package Included:
1* Top plate
2* Side plate
1* Bottom plate
4* Plastic diversion ring
1* Antenna base
4* Aluminum pillar
1* Screw package
