Description

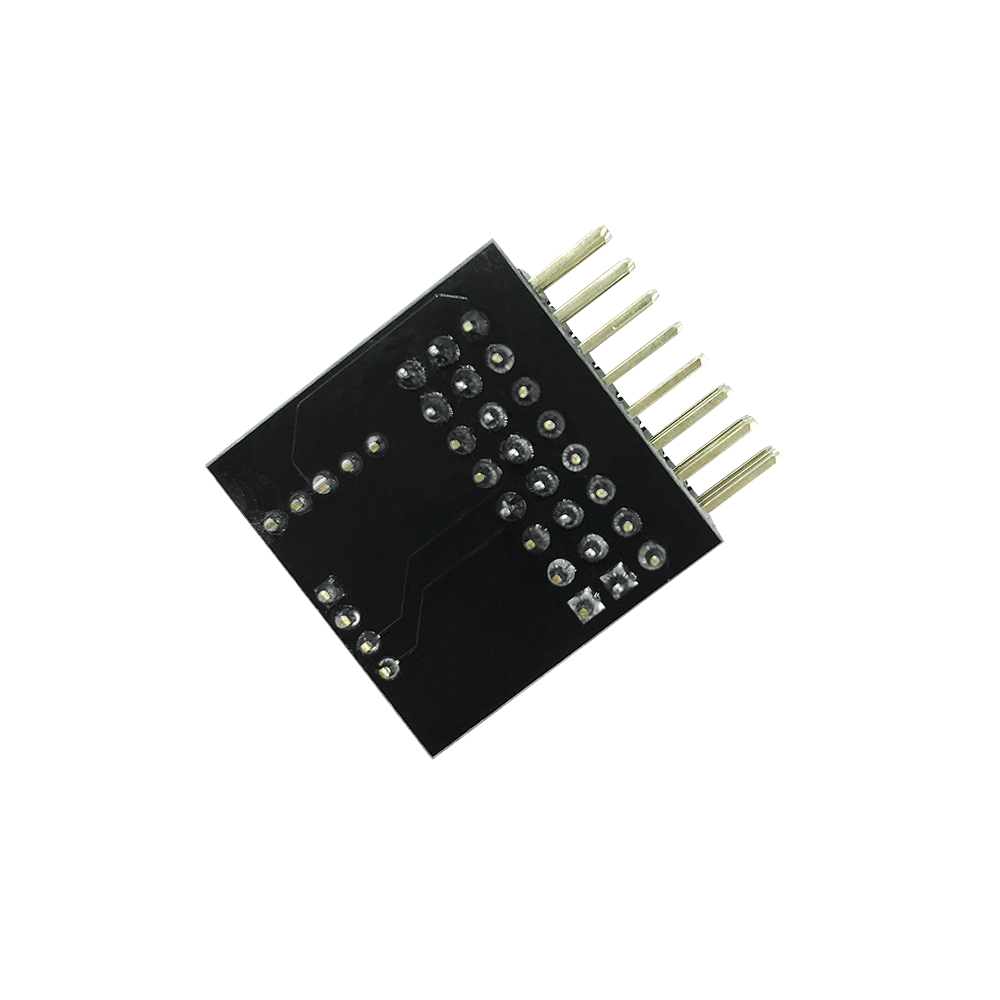

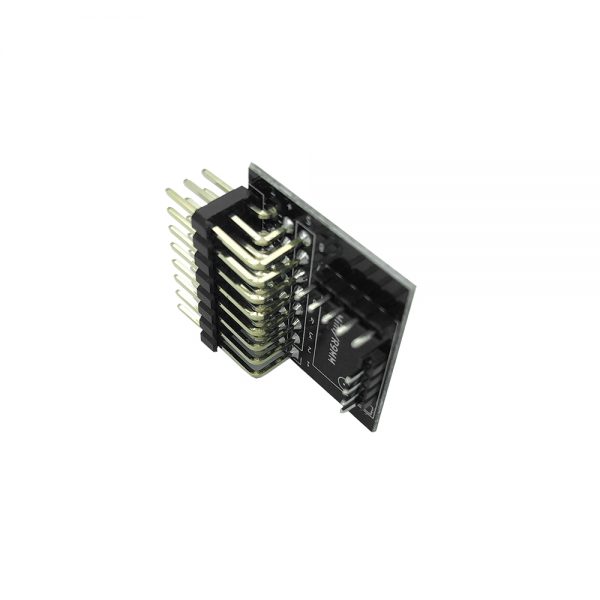

Receiver Adapter Support PWM SBUS S.Port Signal Output for FrSky R9MM R9 Mini Receiver
Specification:
Item name:R9MM/R9 Mini Receiver Adapter
Operating Voltage Range: DC 3.5~10V
Usage: With this board you can enable connectivities with your servos via 4ch PWM,
S.Port/ F.Port and SBUS_OUT, just like FrSky R9 Receiver.
Compatibility: FrSky R9 Mini/R9MM receivers
Output: 4ch PWM, S. Port/F. Port, SBUS_OUT and Inverted S.Port or SBUS_IN.
Size: 23 x 28 x10mm (With Pins)
Weight: 3.4g
Features:
Hassle free and easy soldering
Convert PWM signal for servos
Convert SBUS and S.port port for the flight controller
Note: Receiver not included
Package Included:
1 x Receiver Adapter
