Description

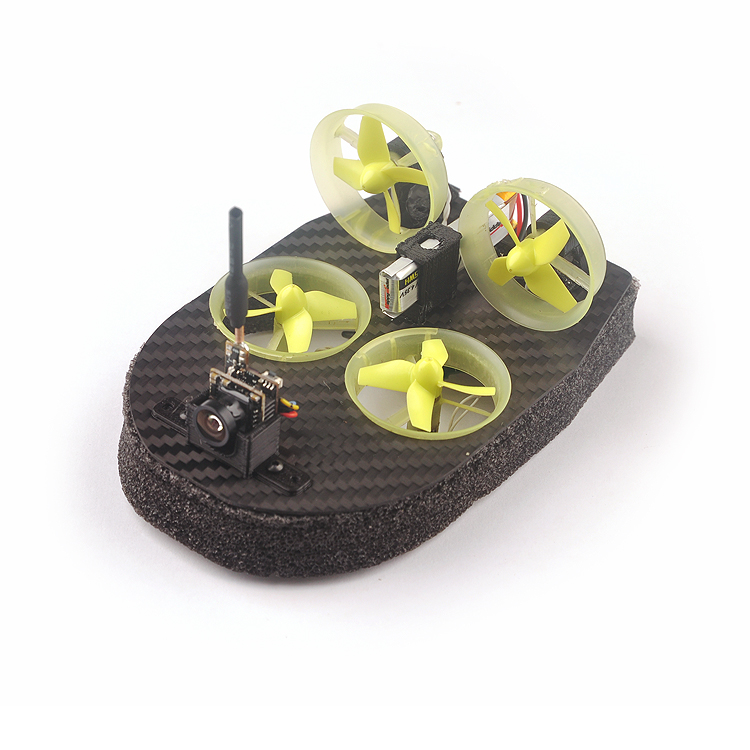

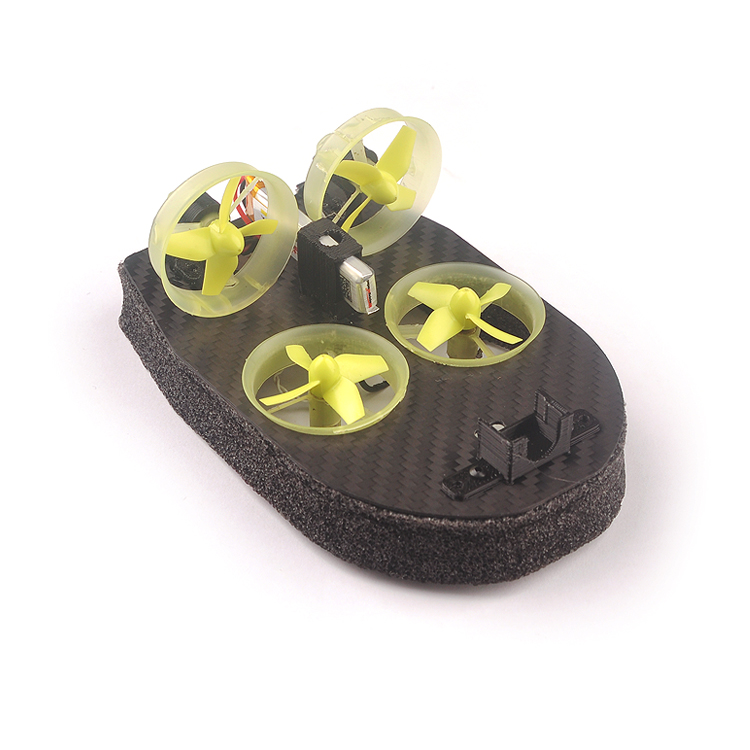

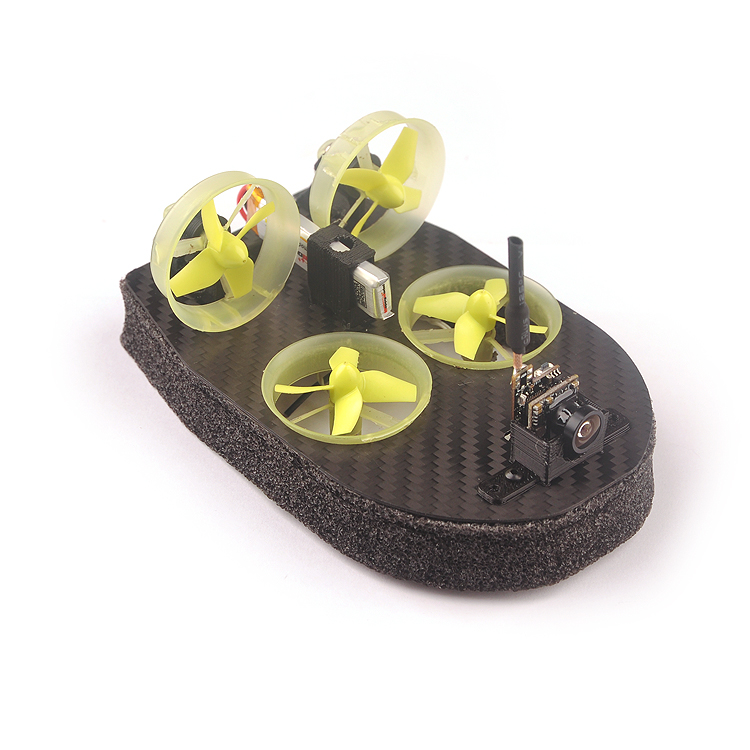

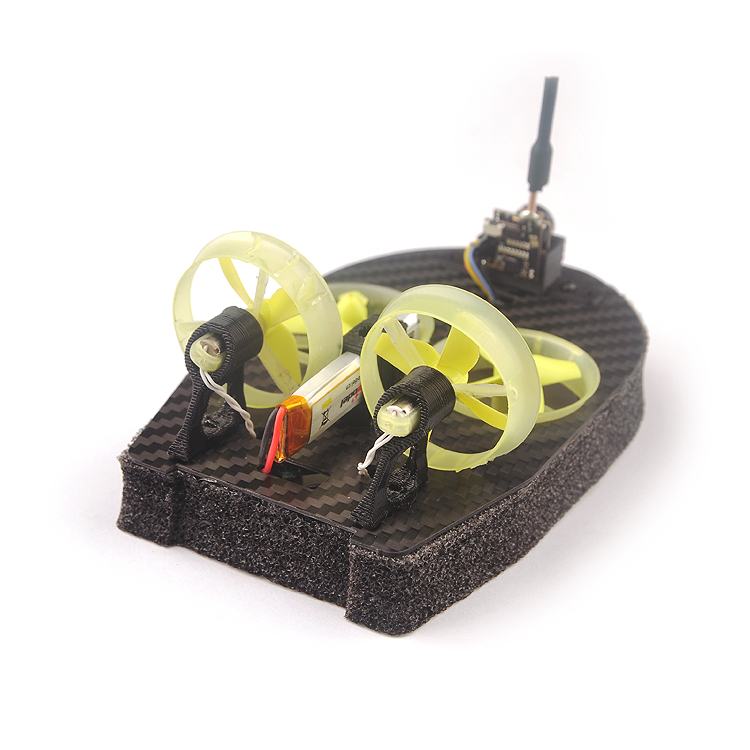

Realacc Tiny Whoover TW65S FPV Racer Hovercraft RC Quadcopter Built-in Beecore V2.0 Flight Controller
Another fun way to play with brushed Tiny whoop. Let’s rock and drift.You can also enjoy the FPV Experience with the FPV goggles.
The TW65 uses a 65mm brushed Frame and 4pcs high KV 0615 brushed motor, provide high torque and easy to drift. The TW65 tiny whoover used a 1.0 carbon fiber glass plate and EVA Frame ,built-in F3 brushed flight controller integrated Frsky or flysky or DSMX receiver , easy to bound with your transmitter .
This combo kit comes with 2 pcs 65mm brushed frame, you can build a FPV racer tiny whoop or a FPV racer tiny whoover hovercraft as you wish.
Description:
Item Name:Realacc Tiny Whoover TW65 FPV Racer Hovercraft RC Quadcopter
Battery:3.8v 250mah
VTX Camera:
Output power: 25mw
Frequency: 48CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Camera resolution: 700TVL
Field of view: 120°
Video Format: NTSC
Frequency: 5.8GHz 6 bands 48 channels
With Raceband: 5474 5945 MHZ
Size: 13.9"12.0mm ( L*W )
Weight: 3g
Parameters:
Frequency switching: By one button, Short press the button to change channel, 1-8 adjustable.
Press and hold the button for 2s to change bands, 1-6 adjustable
Two groups of LEDs :
Group 1:6 BLUE LED stand for bands.
Group 2:8 RED LED stand for channels.
Blue LED1 and Red LED1 light on, 5865MHZ ( BAND1 and CH1 )
Blue LED1 and Red LED2 light on, indicating frequency 5845MHZ ( BAND1 and CH2 )
Blue LED6 and Red LED8 light on, indicating frequency 5600MHZ ( BAND6 and CH8 )
Compatible:
Frsky D8 version compatible Frsky QX7/X9D/X9D PLUS/XJT,DJT,DFT (D8 Mode) module
Flysky version Support compatible FS-I6,Eachine I6,FS I6S, FS I6X, Turnigy Evolution (PPM output)
DSMX Version Support Spectrum/JR(DSM2/DSMX protocol) DX6 / DX7 / DX7E/DX8 / DX9 / Walkera DEVO10 / DEVO 7E(with deviation firmware).
Note: The WS2812 LED needs to be soldered.
Package Included:
Standard kit included:
1 x EVA Sponge Frame
1 x 1.0mm 3K Carbon fiber glass plate
2 x 65mm Tiny whoop Frame ( Random color)
2 x 3D Printer motor holder
1 x Battery holder
1 x Camera mount
4 x 0615 brushed motor
1 x Beecore v2.0 Flight controller (Option: Frsky receiver/Flysky receiver/DSMX receiver)
1 x 3.8v 250mah battery
1 x Lipo USB Charger
4 x 31mm propeller
1 x WS2812 LED
1 x Cables
Advanced kit include:
1 x 5.8G 48ch 700TVL Camera
1 x EVA Sponge Frame
1 x 1.0mm 3K Carbon fiber glass plate
2 x 65mm Tiny whoop Frame ( Random color)
2 x 3D Printer motor holder
1 x Battery holder
1 x Camera mount
4 x 0615 brushed motor
1 x Beecore V2.0 Flight controller (Option: Frsky receiver/Flysky receiver/DSMX receiver)
1 x 3.8v 250mah battery
1 x Lipo USB Charger
4 x 31mm propeller
1 x WS2812 LED
1 x Cables
