Description
Realacc TFP-Mini Triple Feed Patch Dia. 45mm 5.8G 8dBi FPV Flat Panel Pagoda Antenna

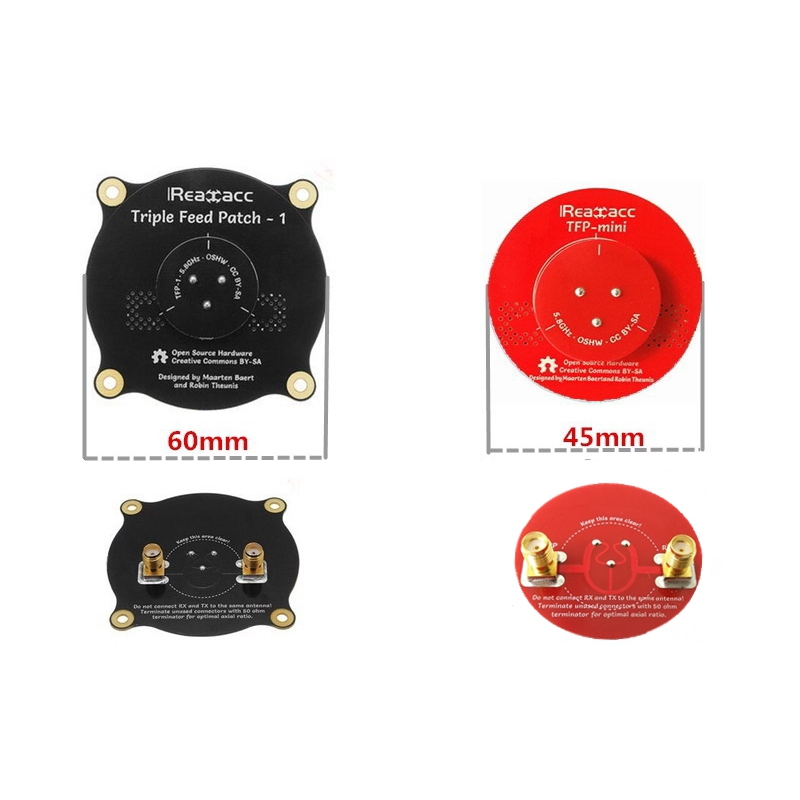

Compared with TFP-1
Description
Brand Name : Realacc
Center frequency: 5.8 GHz
Bandwidth: 660 MHz (5.47 – 6.13 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Antenna gain: 8 dBi
Half power beam width: 65° (horizontal and vertical)
Radiation efficiency: 90%
Dia.: 45mm

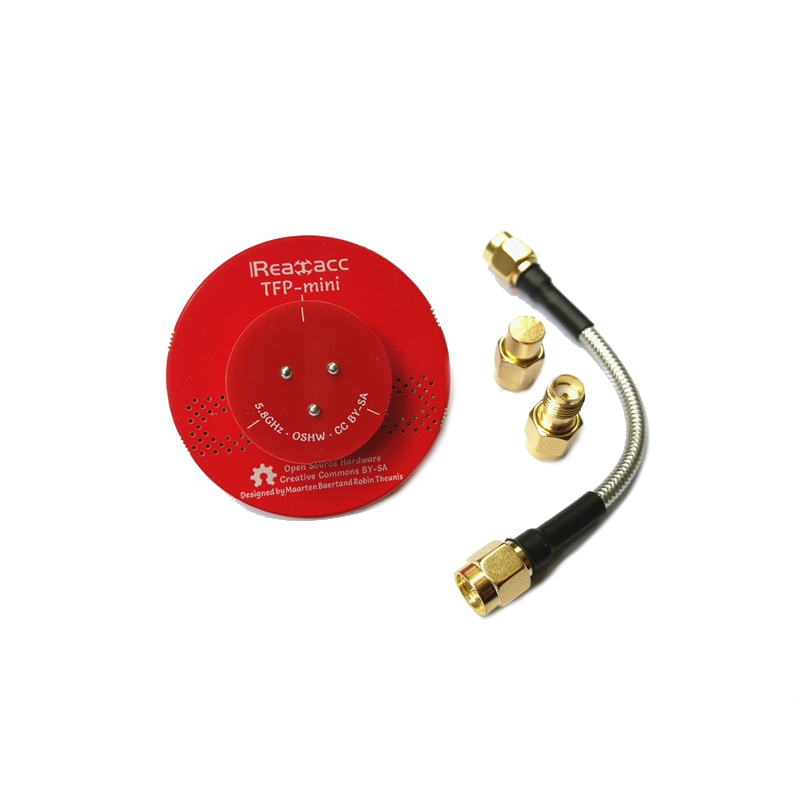

Package Included
1 x Antenna Plate
1 x SMA Antenna Extension Cable
1 x SMA Female to RP-SMA Male Adpater
1 x SMA Male Terminal Connector
1 x SMA Male Terminal Connector
