Description

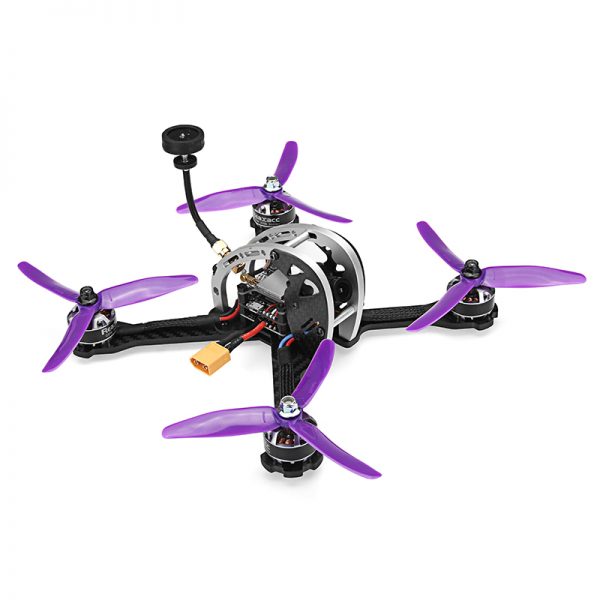

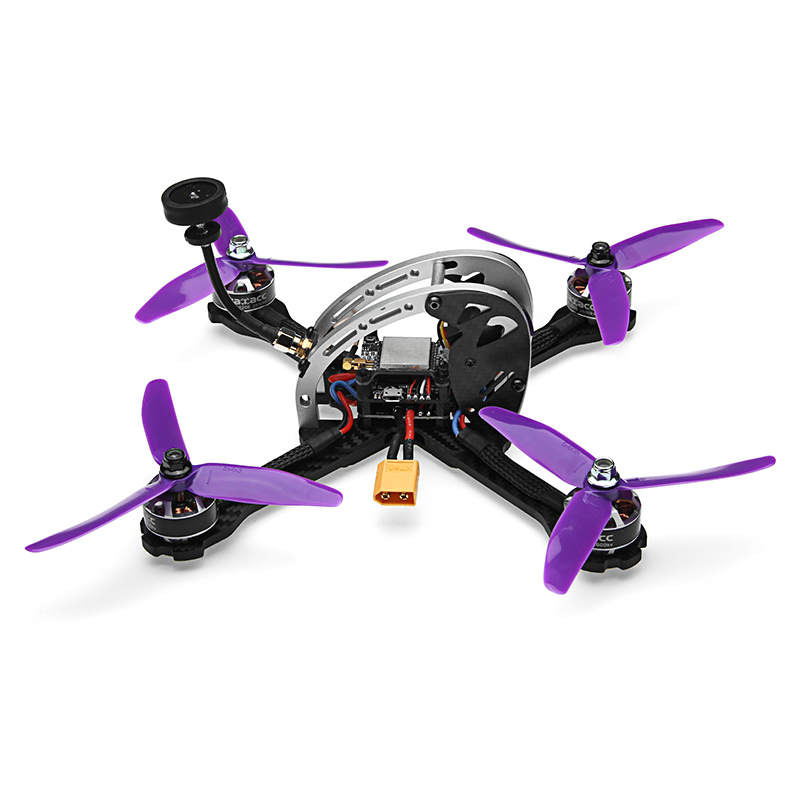

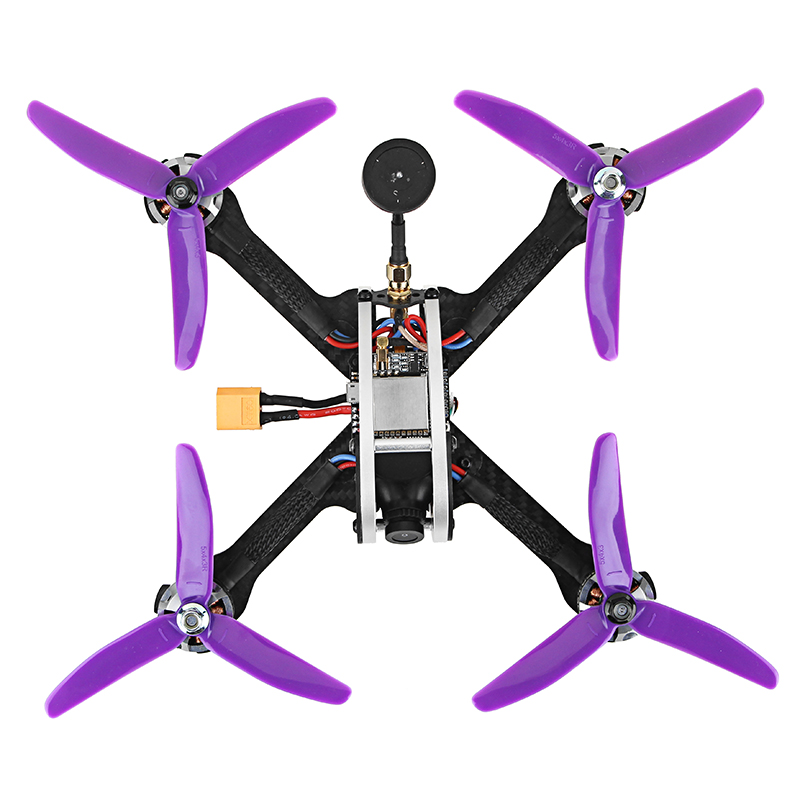

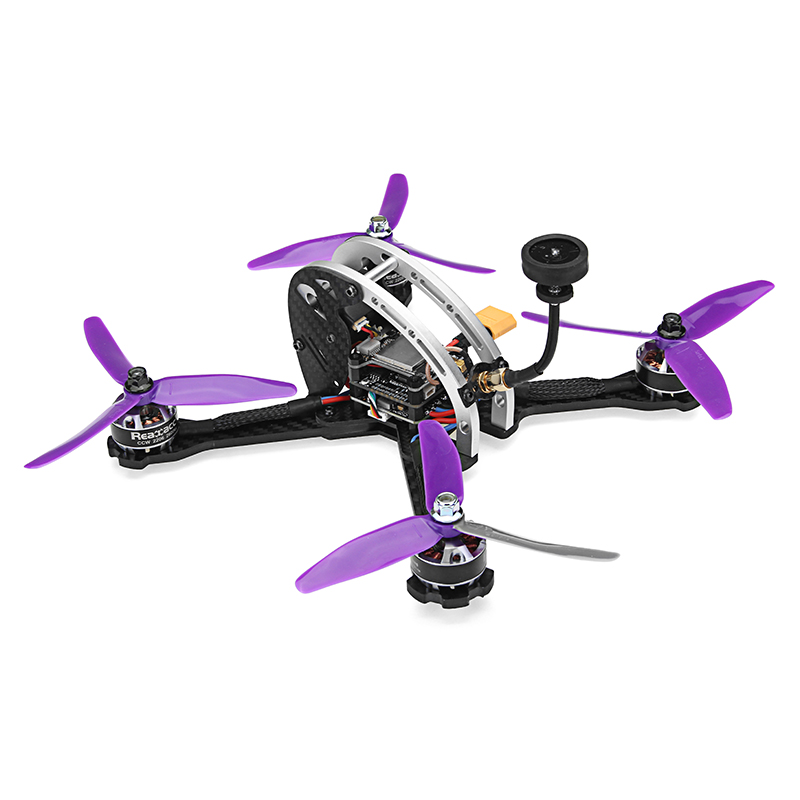

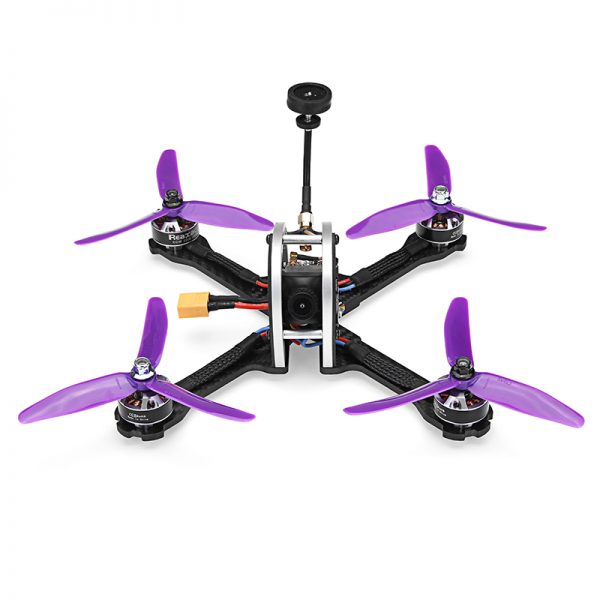

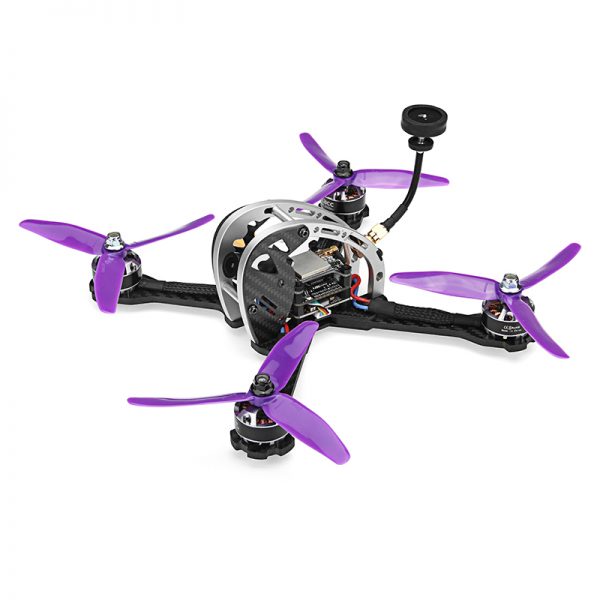

Realacc Real5 215MM FPV Racing Drone PNP Omnibus F4 30A Blheli_S ESC 25/200/600mW VTX 800TVL Camera
Specification:
Brand name: Realacc
Item name: Real5 215MM FPV Racing Drone
Motor: 2206 2600KV
Frame Kit:
Wheelbase: 215mm
Arm plate: 4mm
Other board: 2mm
Omnibus F4 Flight Controller:
STM32F405
LC filter: YES
Replaceable Sensor: MPU-6000 with SPI Data Bus or Next-Generation Sensor ICM-20608G
Support D-Shot ESC
Lipo 2-4S input,
Built-in 1.5A
BEC
DFU button
Black box, maximum 16M data record
SBUS / PPM / Spektrum satellite
Support WS2812 light bar
Buzzer port
PCB 36 * 36mm
Mounting hole 30.5 * 30.5
Support RaceFlight BetaFlight
ESC:
4 in 1 integrated ESC
Current: 30A * 4
Maximum current: 35A * 4 up to 6S
Working voltage: 2-4S Lipo
Size: 36 * 36mm
Mounting hole: 30.5 * 30.5mm
Firmware: BLHeli_S
Support: Support Dshot150 / 300/600, Oneshot125 / 42, Multishot, PWM
Main IC: EMF8BB21F16G SILABS, 8bit C8051, run 50MHz
VTX:
Transmit power 3 block switch: 25mW / 200mW / 600mW
Channel: 48CH
Video format: NTSC / PAL;
Power consumption: 7V ~ 24V, + 12V / 260mA @ 600mW;
Small size: 36mm × 36mm × 5mm
Light weight: ≤ 6g (without antenna);
Connection is more stable: mmcx turn sam connector
Camera:
800TVL CCD 2.8mm lens
Size: 25mm * 25mm, Weight: 9.5g
Full format video format: NTSC / PAL; (default PAL)
Working voltage: DC5-12V
Operating current: 70mA (low power consumption)

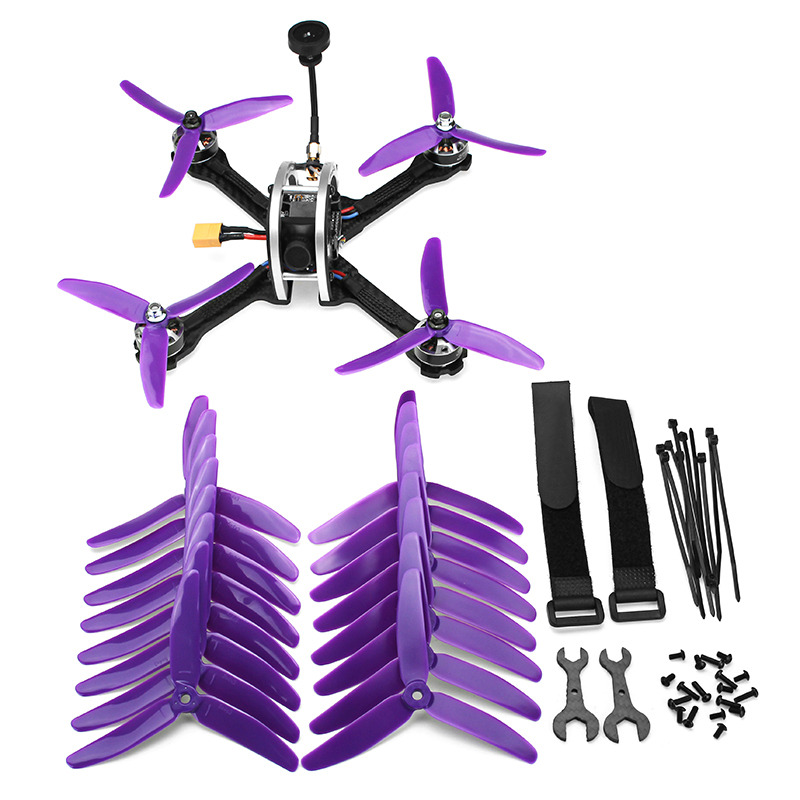

Package Included:
1 x 215mm Frame Kit
1 x Omnibus F4 flight controller
1 x 4 in 1 30A ESC
4 x 2206 2600KV motor
1 x 25mW / 200mW / 600mW VTX
1 X 800TVL Camera
,
,
,
,
,
,
,
,
,
