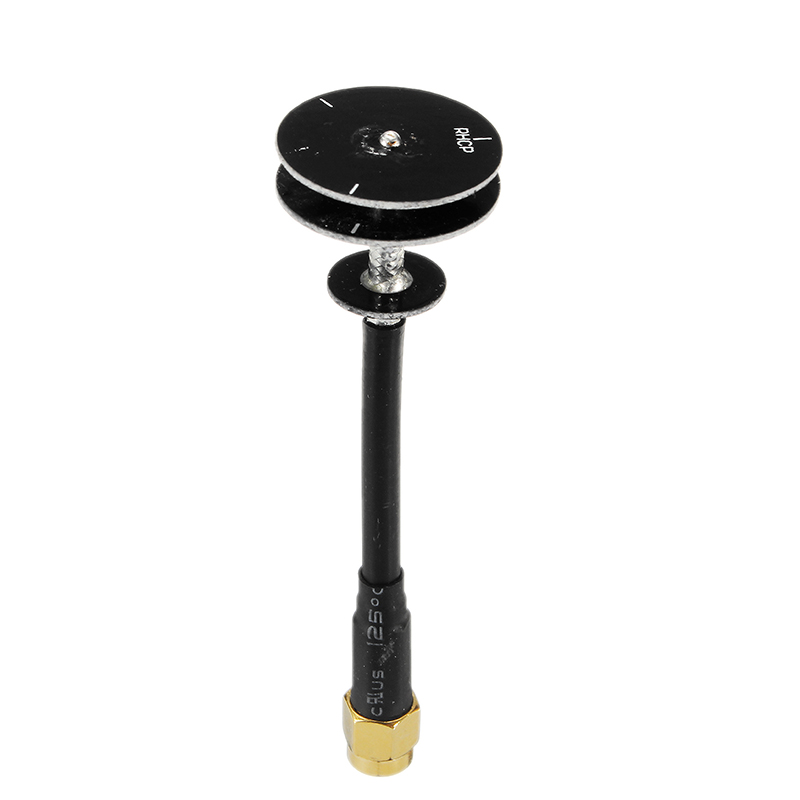

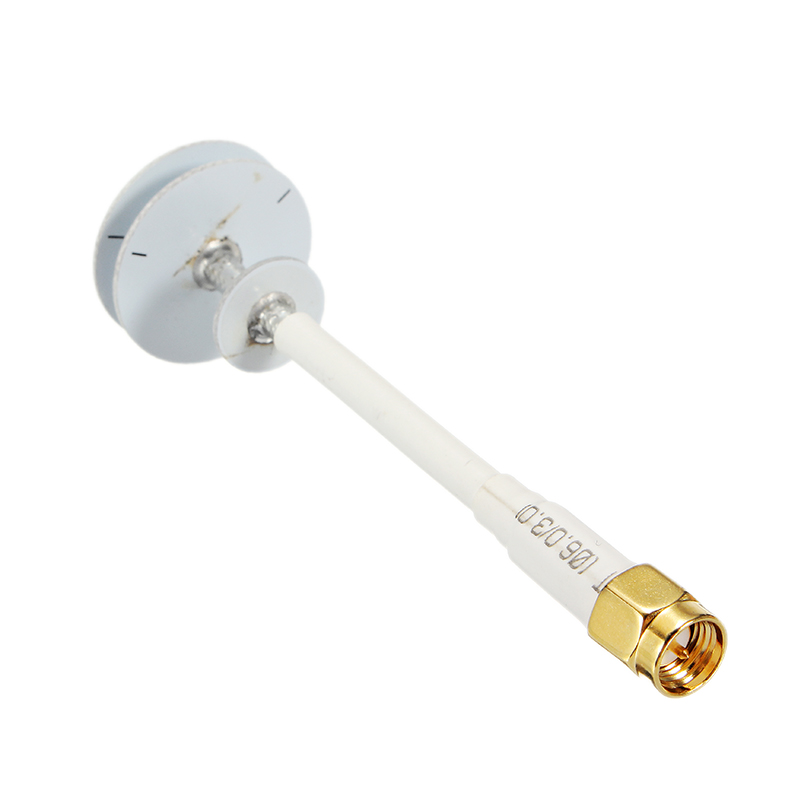

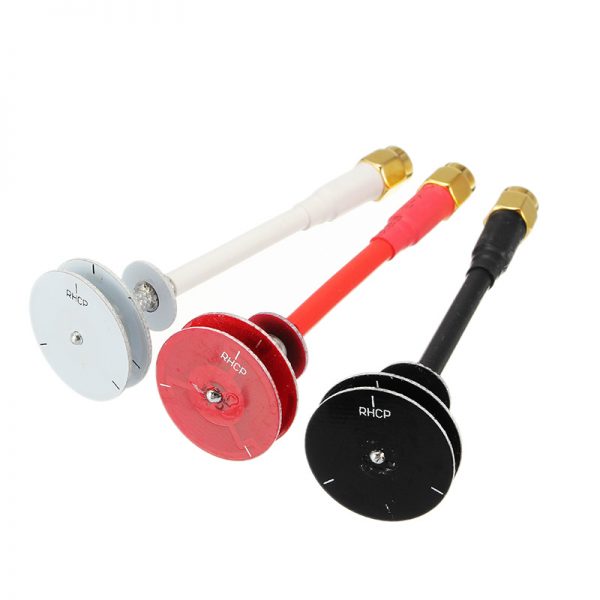

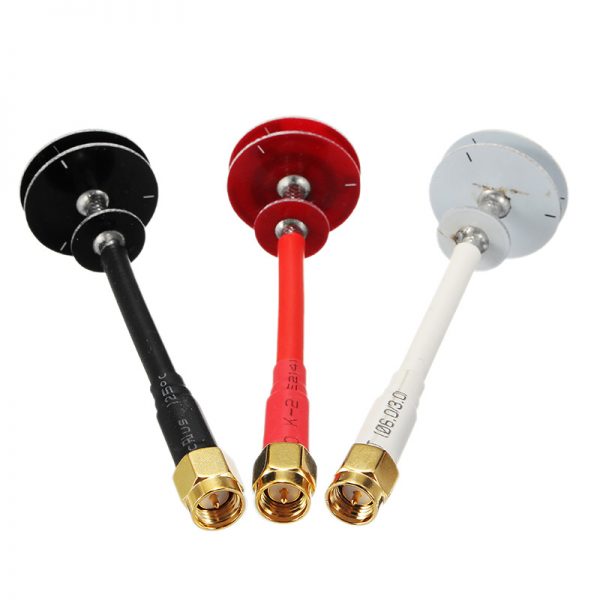

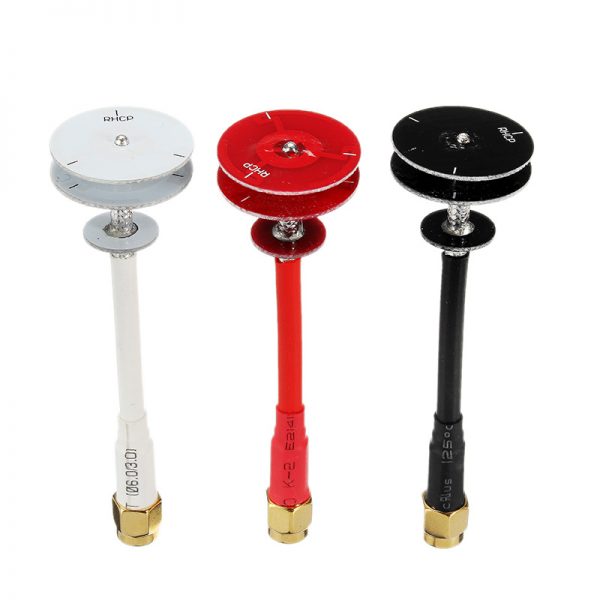

Realacc 5.8G 5dBi 50W Omni Directional Omni FPV Pagoda Antenna LHCP/RHCP SMA/RP-SMA For FPV RC Drone

$2.99

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

New batch will come with rubber case ! Enjoy shopping

Short Version:Click Here

Realacc 5.8G 5dBi 50W Omnidirectional Flat Panel Antenna Omni Tower Plated FPV Antenna SMA/RP-SMA

 Thanks the designer Maarten baert, who gives the idea, if you want more information, pls click :http://www.maartenbaert.be/quadcopters/antennas/pagoda-antenna/


Description :
Brand Name : Realacc
Item Name :  Omnidirectional Antenna
Gain : 5dBi
Max. Power : 50w
Connector :  RP-SMA,SMA
Color : Black, Red, White
Weight : 8.6g
Length : 78±3mm
Max. Dia. : 22.4±1mm
Min. Dia. : 11.8±1mm


Specification :
Frequency : 5.8G
Impedance : 50Ω
VSWR : <1.5:1
Polarization :  Circular Polarized
Radiation : Omni


Features :
Omni-directional, no dead corner
High gain, more stable.
Less flash, stonger siginal


Package Included :
1 x Antenna


,,,,,,,
