Description

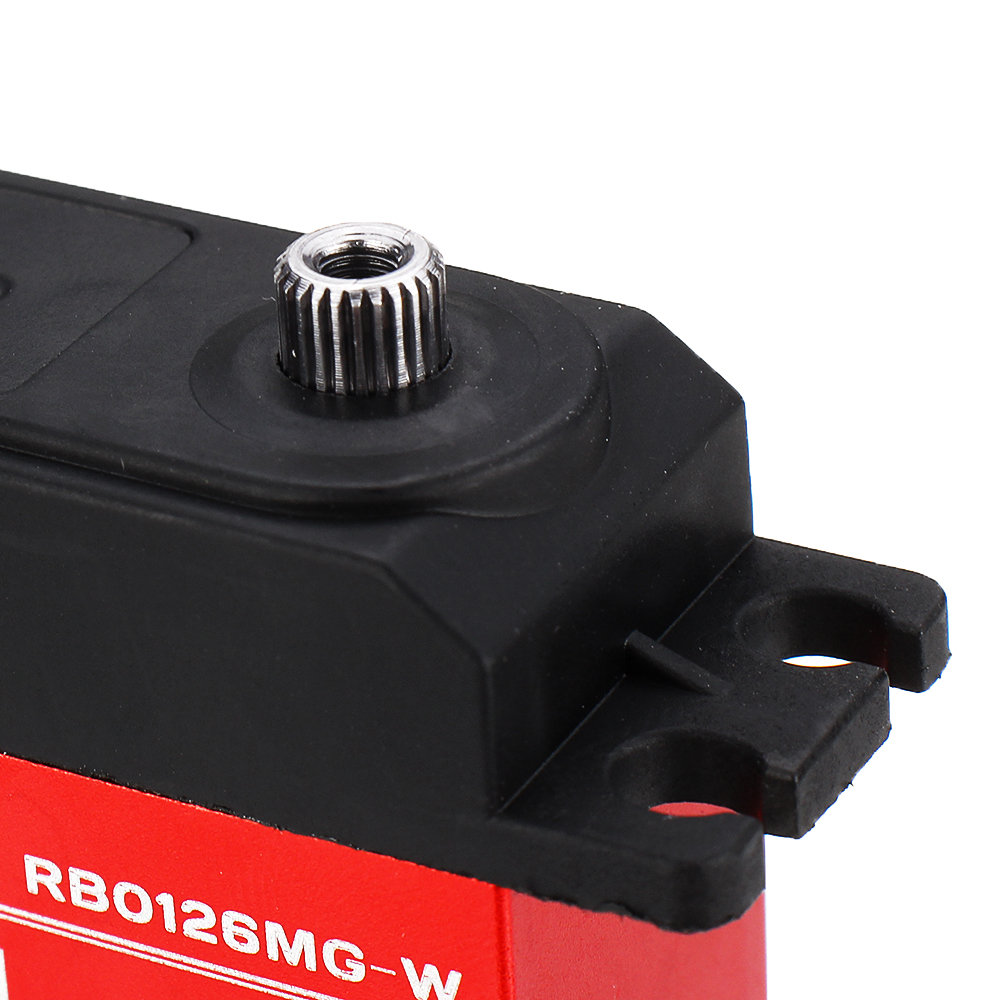

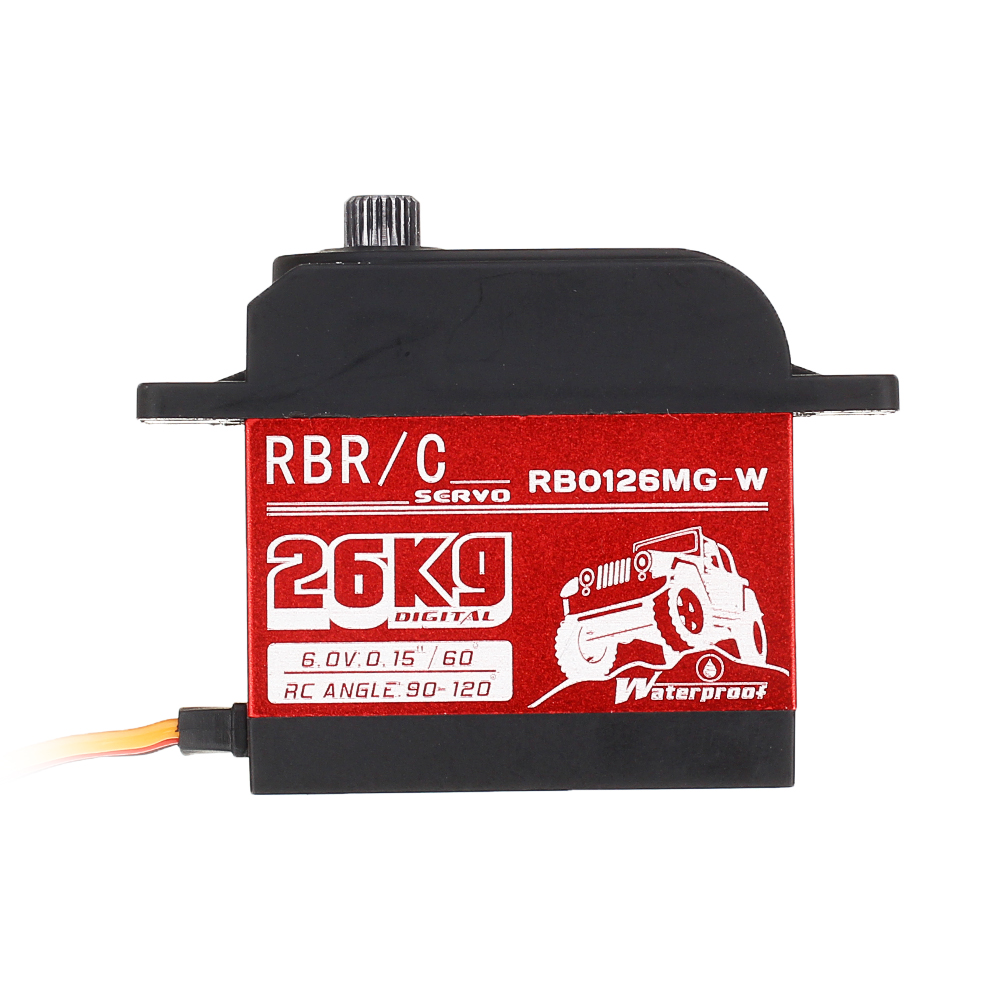

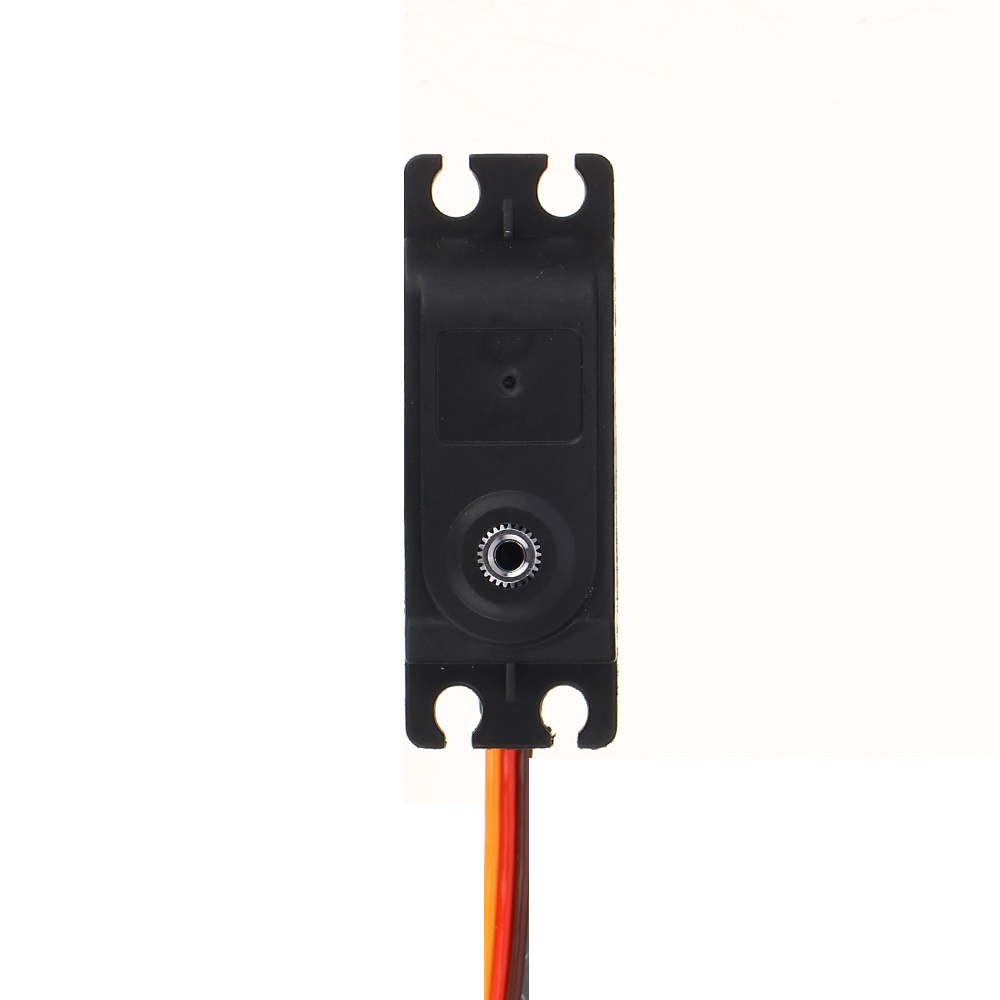

Product: RB0126MG 25KG 90° 120° Large Torque Digital Servo
Dead band: 4μs
Neutral Position: 1500μs/330hz
Motor: Core motor
Angle: 90-120°±2°
Voltage Range:4.8V-6.0V
Operating Speed(6.0V): 0.15''/60°
Stall Torque(6.0V): 26 kg.cm
Dimensions: 40.5X20X40.5mm
Weight: 57g
Connector Wire Length: JR 260mm
Bearing: 2BB
Features:
The steering gear has a slow start function: it is difficult to see with the naked eye. The current of the servo is relatively large at the moment of starting or reversing. With this function, the life of the steering gear is relatively long;
Blocking protection function: When the servo is continuously blocked or the blocking angle is greater than 3 degrees, the duration is 10 seconds and the current is kept at 2.5a or above, the servo will start to protect, the current will drop to the standby state, and the blocking will be released. When the remote control is turned freely, the servos return to normal.
Adaptation range: 1:8 or 1:10 remote control car steering can be used, remote control boat, etc.
Waterproof function: The steering gear contains a total of 7 waterproof rings, the structure is reasonable. Each waterproof ring is installed in place, the surface is not visible, the circuit board brush special circuit board transparent glue, the potentiometer is closed by silicone, other structures are also corresponding Waterproof treatment,
Note: Many launch tests on the market, the steering gear can be tested without water, but the servos are not normal after a few days, so we must do a good job of waterproof measures, different from the market, only the circuit The board is glued and no waterproof ring is visible.
Package included:
1x servo
1x servo
