Description

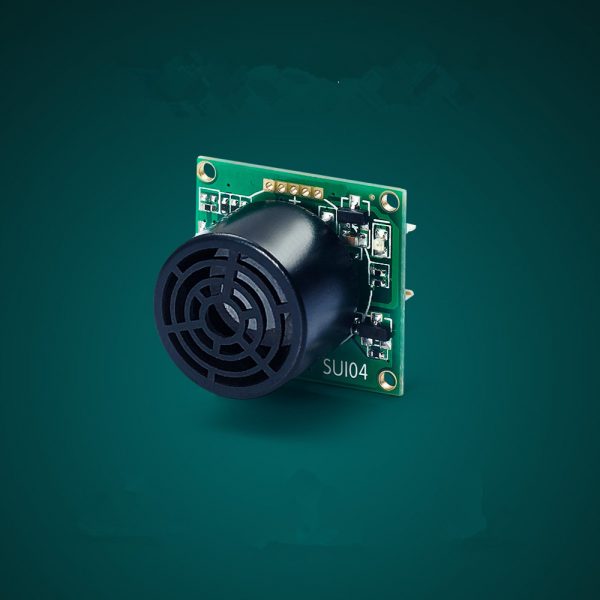

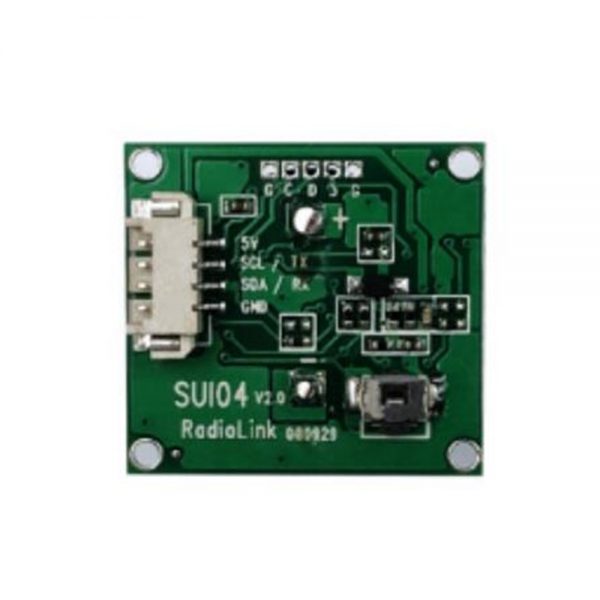

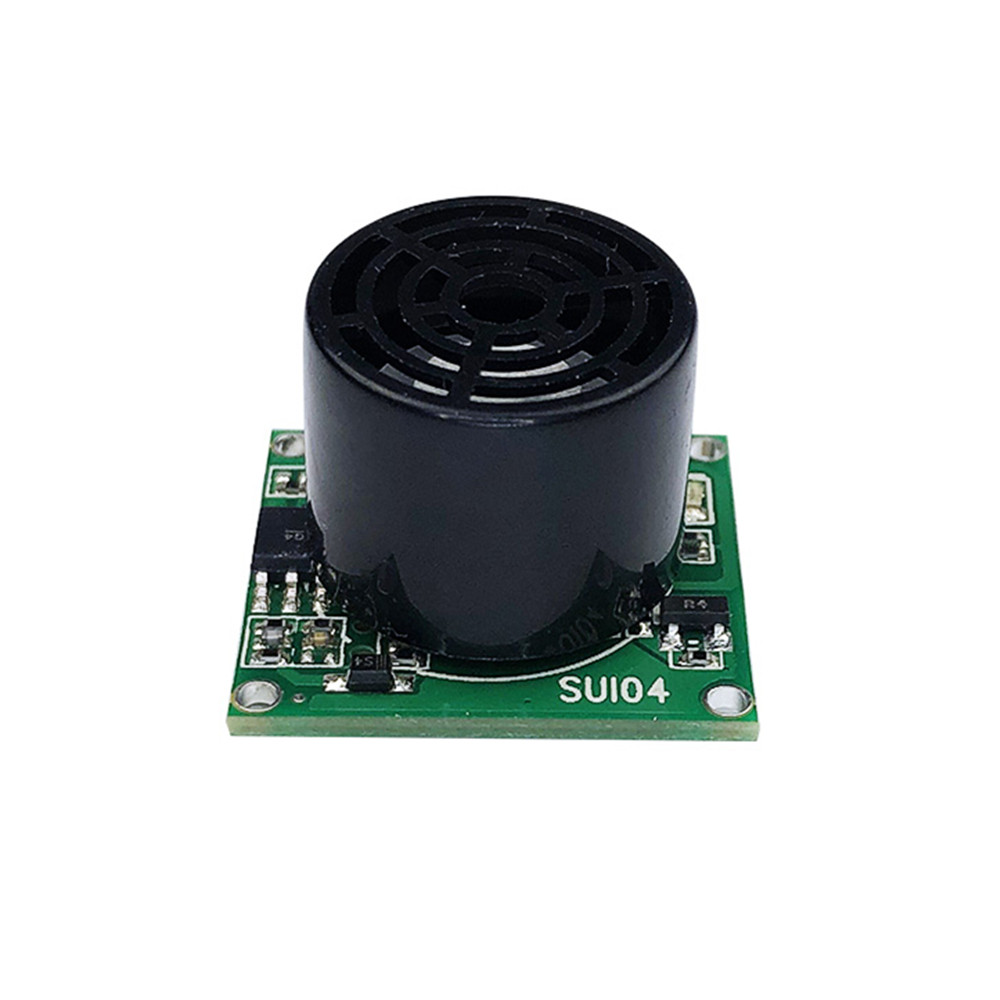

RadioLink Ultrasonic Sensor SUI04 Obstacle Avoidance Module for Pixhawk / Mini PIX Flight Controller
Specification:
Brand Name: RadioLink
Model: SUI04
Item Name: Ultrasonic Sensor SUI04 Obstacle Avoidance Module
Size: 20*22*19mm
Weight: 8g (with wires)
lInput voltage: 4.5~5.5V(do not support HV)
lCurrent: 18mA@5V
lPower: 90mA
lOperating temperature: -20°C~80°C
lDetection distance: 40cm~450cm
lDetecting precision: 0.1cm
lAcoustic emission frequency: 40±1.0KHz
lBeam angle: 60°(transmitting receiving hybrid)
lFade area: 0 (it will show 40cm)
lOutput protocol: I2C
lDuty Cycle: 30ms
Package Included:
1x Ultrasonic Sensor SUI04 Module
1x Cable
1x Ultrasonic Sensor SUI04 Module
1x Cable
