Description
Specification:
| Item | RC6GS Transmitter |
| Material | Metal |
| Color | As the picture |
| Weight | Product weight:328g With Packaging:572g |
Description:
Size:RC6GS:213*117*115.5MM, R4FG-35*20*13MM
Channel:6
Model:cars,boats
Modulation mode: GFSK
Spread spectrum:FHSS 67 channels pseudo random frequency sequence hopping
10 models memory storage
Spread spectrum:FHSS 67 channels pseudo random frequency sequence hopping
10 models memory storage
Antenna length:106mm
Control distance: more than 400 meters ground
LCD screen:128*64 resolution,LCD back light
Transmitter operating voltage:4.8-15V DV,4X 1.5V AA or 2S-4S Lithium battery
Transmitter operating voltage:4.8-15V DV,4X 1.5V AA or 2S-4S Lithium battery
Transmitter operating current:80-120mA
R6FG/R6F operating voltage:3.3-10V
R6FG/R6F operating current:30MA
R6FG/R6F operating voltage:3.3-10V
R6FG/R6F operating current:30MA
RF power:<20dbm
Low voltage alert: yes( lower than 4.6V), can be set when using 2s-4s Li-Po battery
Frequency :2.4Ghz ISM band (2400MHz-2483.5MHz)
Channel resolution:4096,the regular jitter is 0.5us
Work current:80-120mA
Receiver:R6FG,R6F,R8EF.R8FM
Package included:

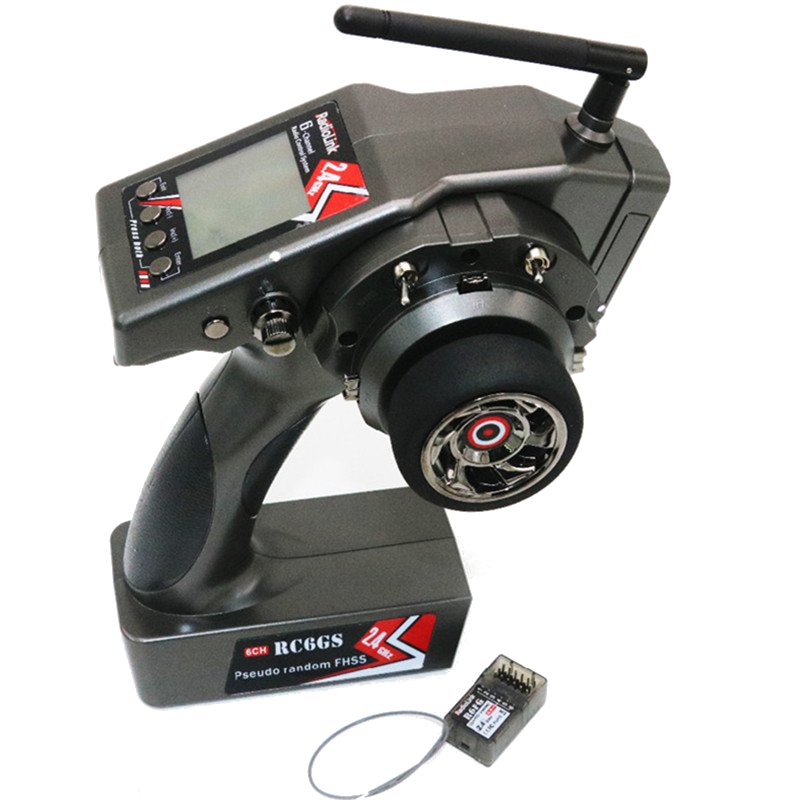

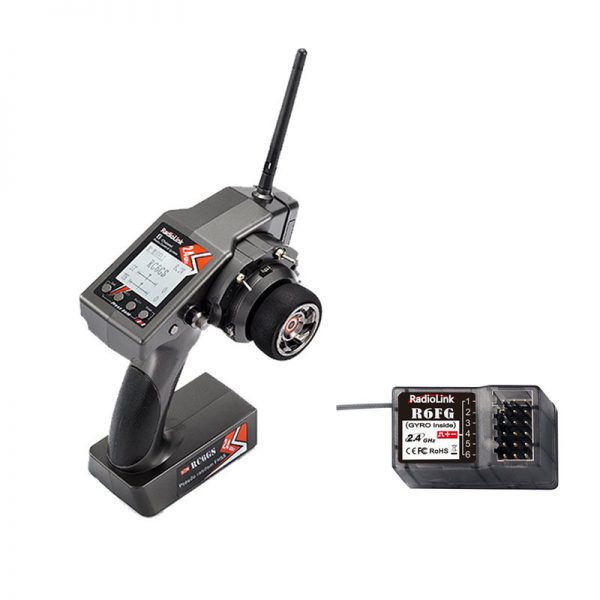

1x Radiolink RC6GS Transmitter

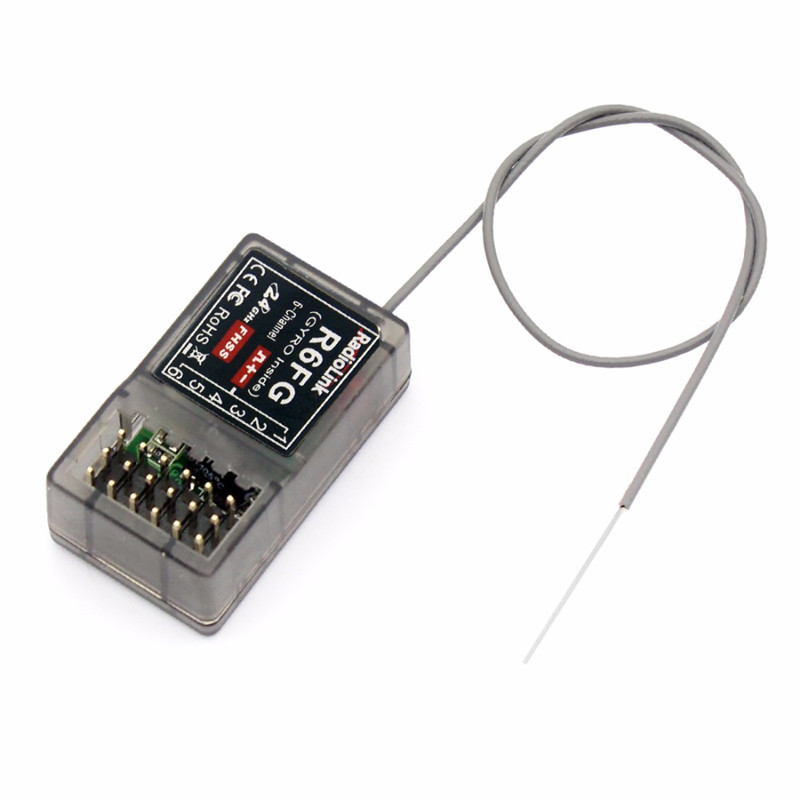

1x R6FG gyro inside Receiver
1X Manual
