Description
Description:
Size:RC4GS:213*117*115.5MM, R6FG-35*20*13MM
Channel:4
Model:cars,boats
Modulation mode: GFSK Spread spectrum:FHSS
10 models memory storage

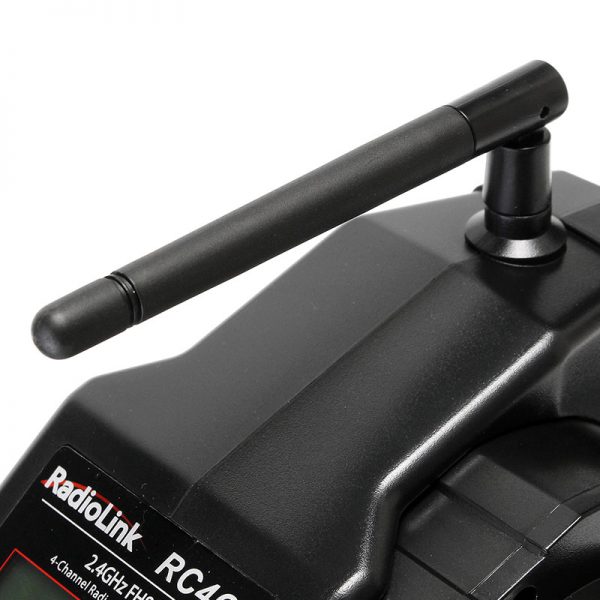

Antenna length:106mm
Control distance: more than 400M

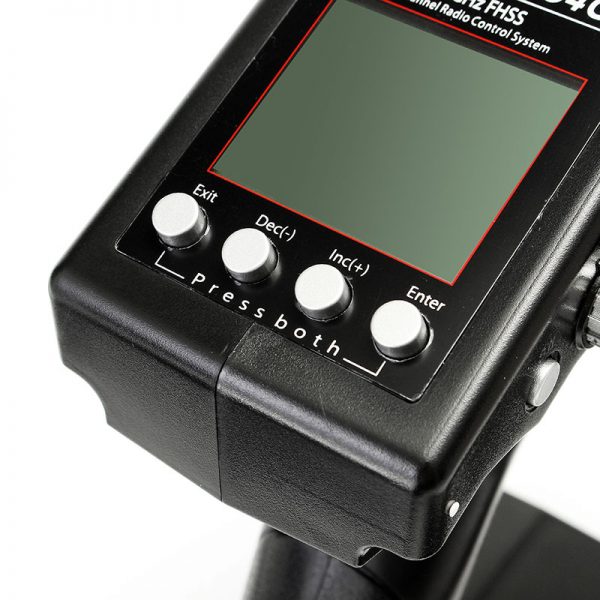

LCD screen:128*64 resolution,LCD back light
Power supply :4.8-15.0V DC,4*AA or 2S-4S Lithium battery
RF power:<10dbm
Low voltage alert: yes( lower than 4.6V), can be set when using 2s-4s Li-Po battery
Frequency :2.4Ghz ISM band (2400MHz-2483.5MHz)
Channel resolution:4096
Work current:80-120mA
Receiver:R6FG,R8EF,R8FM
Features
1.RC4GS with chip TICC2500,same FHSS 16 channels pseudo random frequency sequence hopping technology of AT9S
2.Receiver with gyro integrated to hold the vehicle in a straight line during aggressive acceleration and braking or get bumped
3.It take 12ms only for 4 channels to response parallel, better than the average time 20MS
4.4 channels mix programmable :AUX channel3&4 can be slave controlled by channel 1or 2 , or operate individually to turn lights and open doors in boats or cars
5.Fail safe can set up by yourself as you need
6.Multiple battery support and anti-polarity connect protection intelligent :JST battery port, 4pcs AA batteries
7.11 parameters such EXP,IDLUP,D/R, THSPD and so on self setting
8.A.B.S function for anti lock brake: do not slip as corners brake thus avoiding and program
9.Upgrade firmware by a USB cable helps RC6GS always keeps the most advanced system and program
1.R4FG User Manual load check Here
2RC4GS User Manual load check Here:
Package contents:

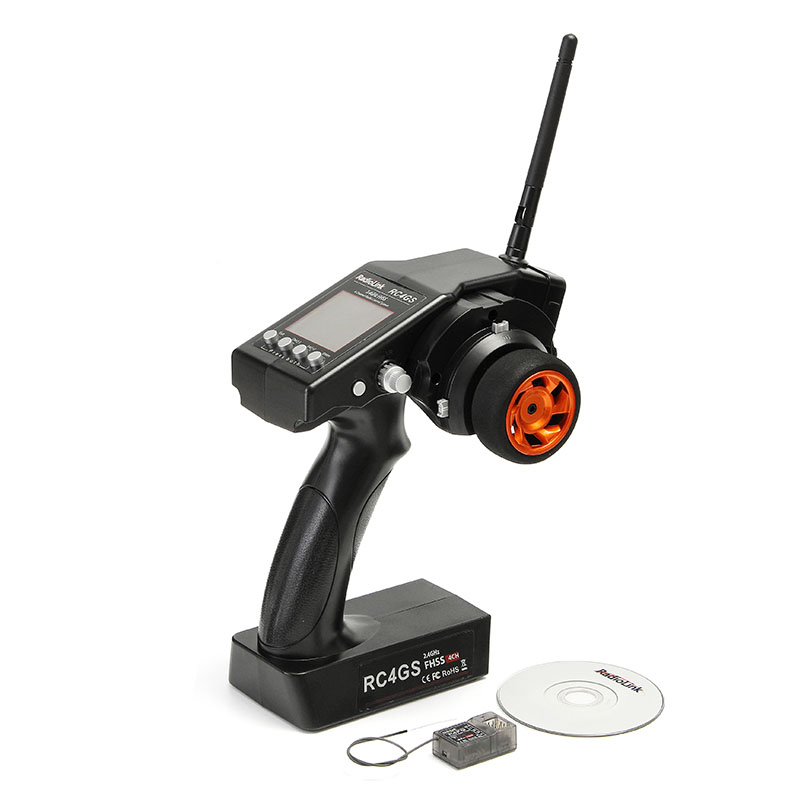

1x Radiolink RC4GS Transmitter
1x R4FG-G gyro inside Receiver
1X manual
,
,
,
,
,
,
,
,
,
,
